Optical Fibre Cable
ASU All-Dielectric Self-Supporting Cable
ASU
Fully non-metallic · 50–120 m spans · 2–24 fibres
All dielectric structure, resistant to electromagnetic interference Small diameter , light weight, cost-effective, easy for stripping, splicing, simplified installation and maintenance
Applications
Quality & compliance
ASU
Quality highlights
- Strength members: 2 parallel FRP rods
- Water blocking: 2000 D yarns
- Operating temperature: -20 °C ~ +65 °C
Specifications
ASU
| Crush Resistance（N/100mm） | 2000N |
|---|---|
| Bending Radius(mm) | Static/Dynamic：10D/20D |
| Temperature(℃) | Storage /Operation：-40℃ ~+70℃ |

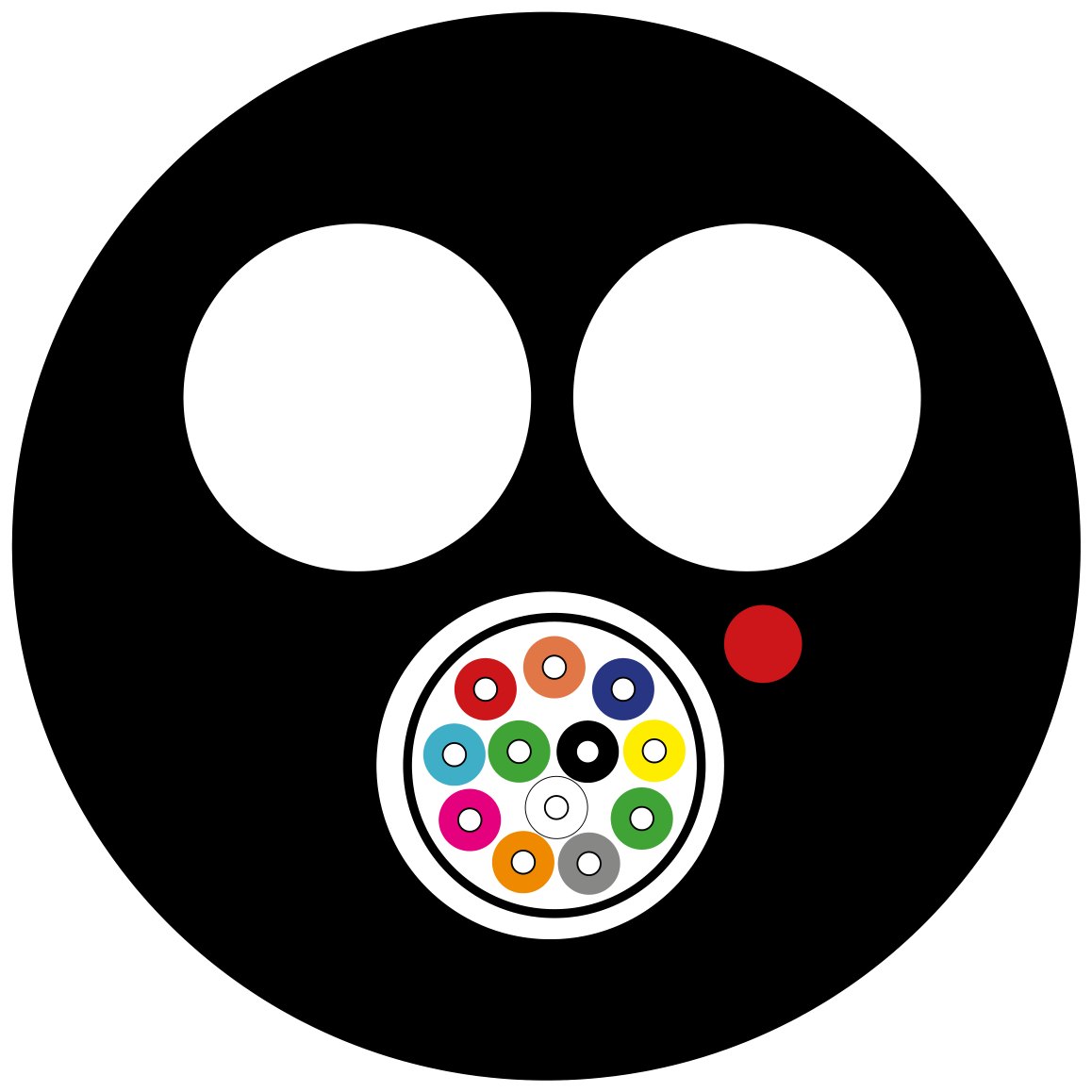

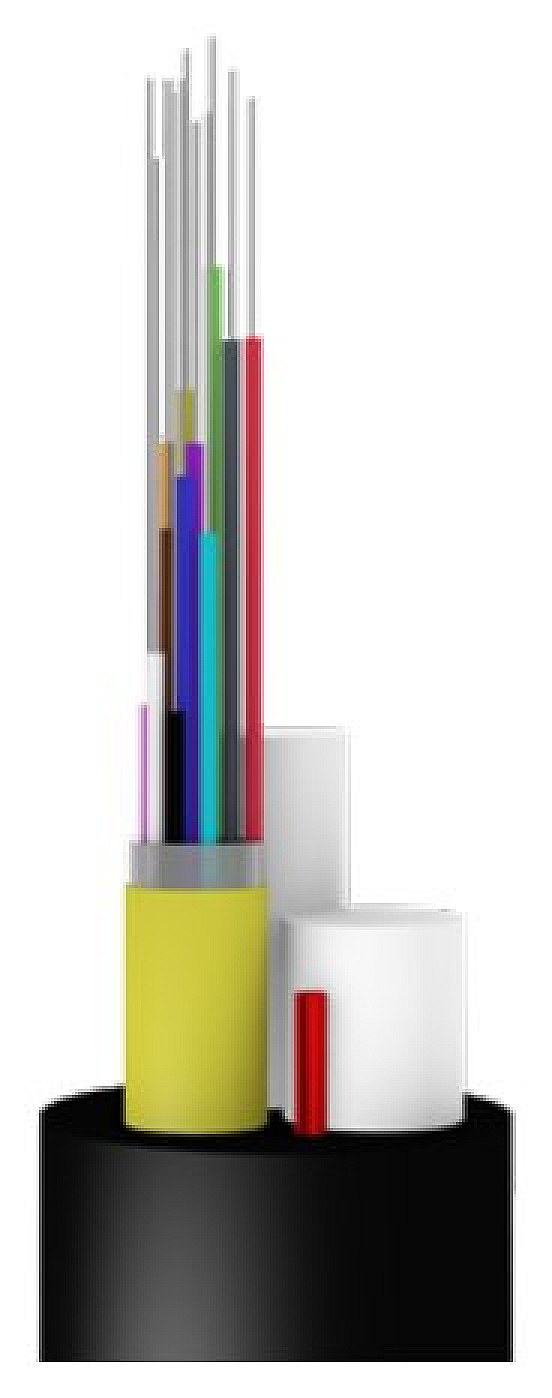

The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. The tube and two FRPs are SZ stranded. The cable core is filled with water blocking yarn. Finally, PE outer jacket or AT outer jacket is completed. One ripcord is applied in the jacket to make the striping easily.
| Counts | 1-12 | 24 | ||||||
|---|---|---|---|---|---|---|---|---|
| Span | 80 M | 120M | 80 M | 120M | ||||
| Cable Diameter（mm） | 6.6 | 7.6 | 7.5 | 8.2 | ||||
| Weight（Kg/km） | 45 | 62 | 52 | 65 | ||||
| Tensile Strength（N） | 1500N | 2000N | 1500N | 2000N | ||||
Crush Resistance（N/100mm） |
2000N | |||||||
| Bending Radius(mm) | Static/Dynamic：10D/20D | |||||||
| Temperature(℃) | Storage /Operation：-40℃ ~+70℃ | |||||||
Illustration

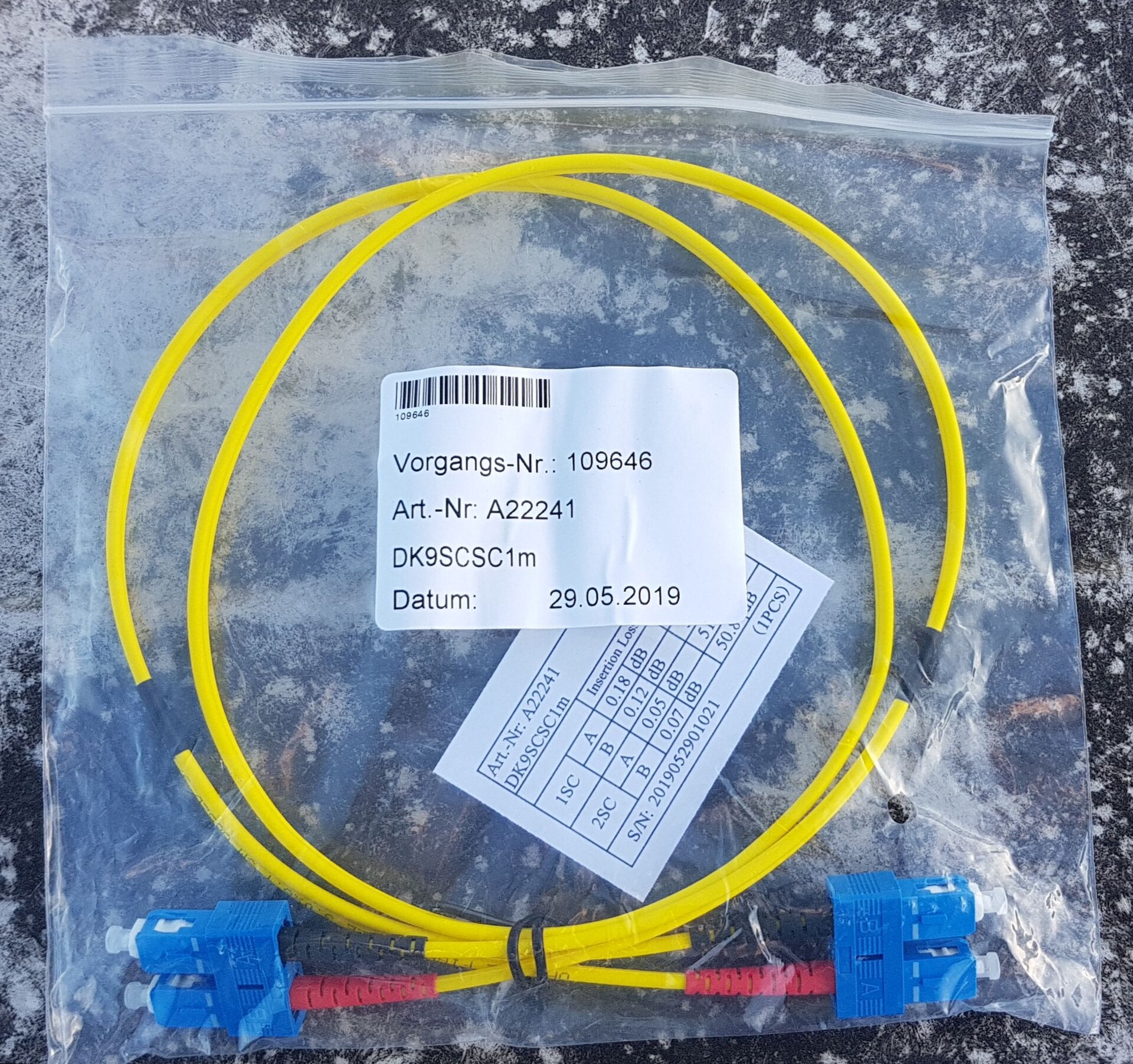

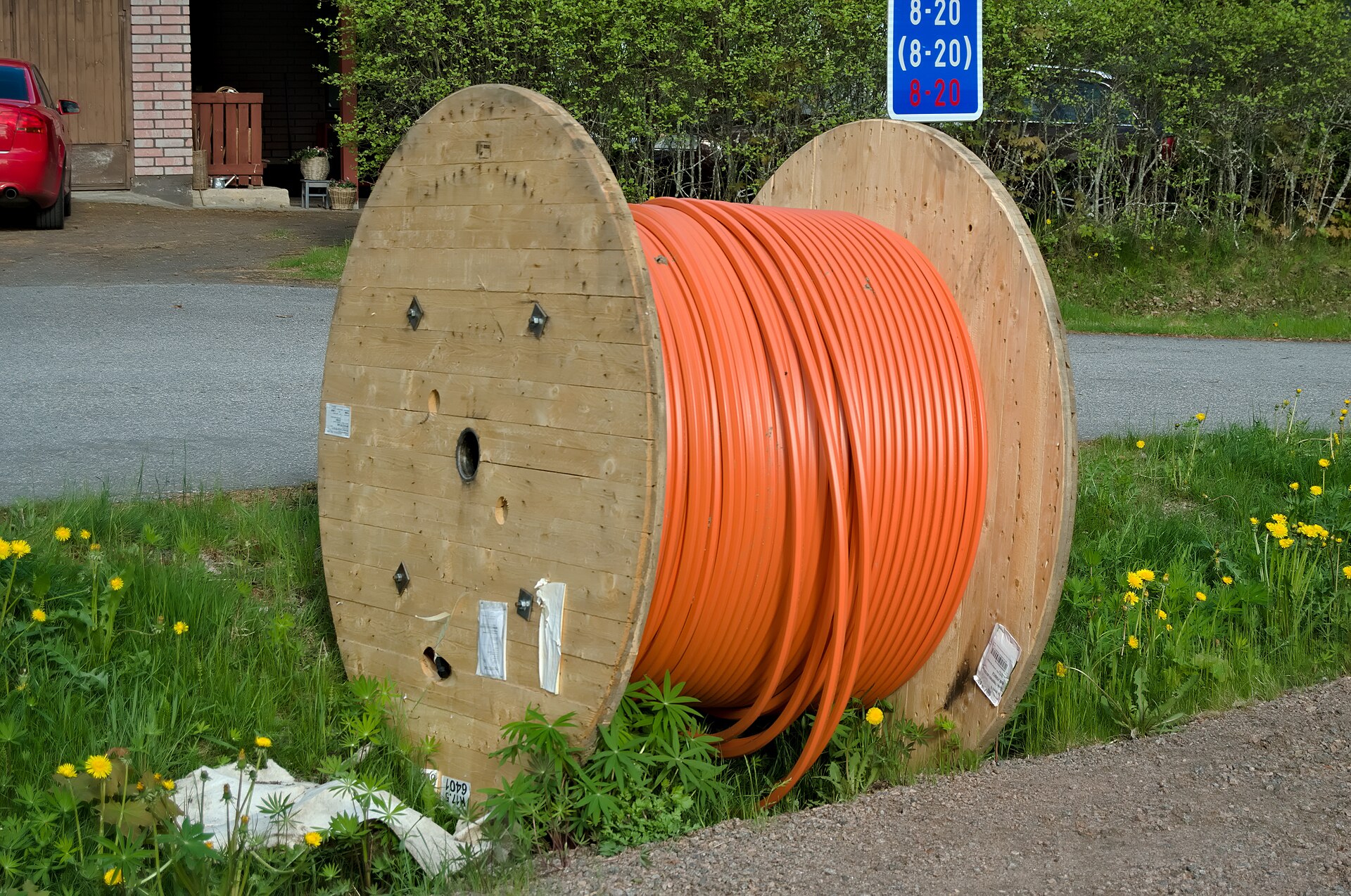

Reference photo of this product type — not the exact item shipped.
