Optical Fibre Cable
Stranded Loose Tube Steel-Tape Armoured Cable
GYTS
Corrugated steel-tape armour · 2–288 fibres · duct and direct-buried
Same stranded loose-tube core as GYTA, but armoured with corrugated steel tape (PSP) instead of aluminium. Choose it where crush and rodent risk are the deciding factors — direct burial, rocky ground, industrial sites.
Key features
- Good mechanical and thermal performance
- Steel wire as the central strength member
- Hydrolysis resistant loose tube
- Tube filling compound ensures critical protection of fiber
- Specially designed stranded structure eliminating contraction of tubes
- Rugged, durable PE jacket protects against UV radiation, fungus etc.
- Crush resistance and flexibility
- Water-blocking measures : - Loose tube gel-filled - 100% cable filling compound - Corrugated steel tape(CST) enhancing moisture-proof
Applications
Quality & compliance
GYTS
Quality highlights
- Tensile strength, long / short term: 600 / 1500 N
- Crush resistance, long / short term: 300 / 1000 N/100 mm
- Bending radius, dynamic / static: 10 D / 20 D
- Strength member: FRP central element
- Transport / storage / operating temperature: -40 °C ~ +70 °C
Specifications
GYTS
| Fiber Type | G652D G655 G657 50/125 62.5/125 |
|---|---|
| Tensile Strength（N） | Long/Short Term：600/1500 |
| Crush Resistance（N/100mm） | Long/Short Term：300/1000 |
| Bending Radius(mm) | Static/Dynamic：10D/20D |
| Temperature(℃) | Storage /Operation：-40℃~70℃ |

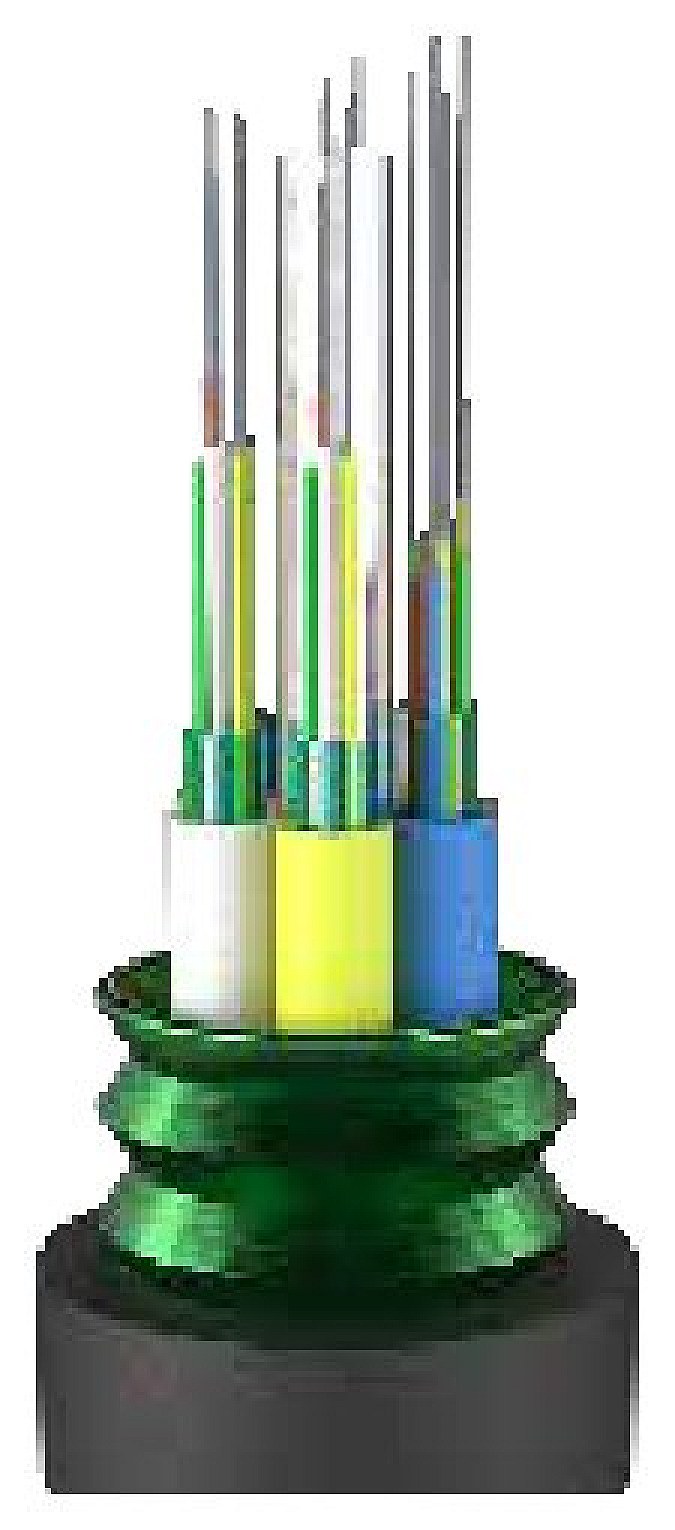

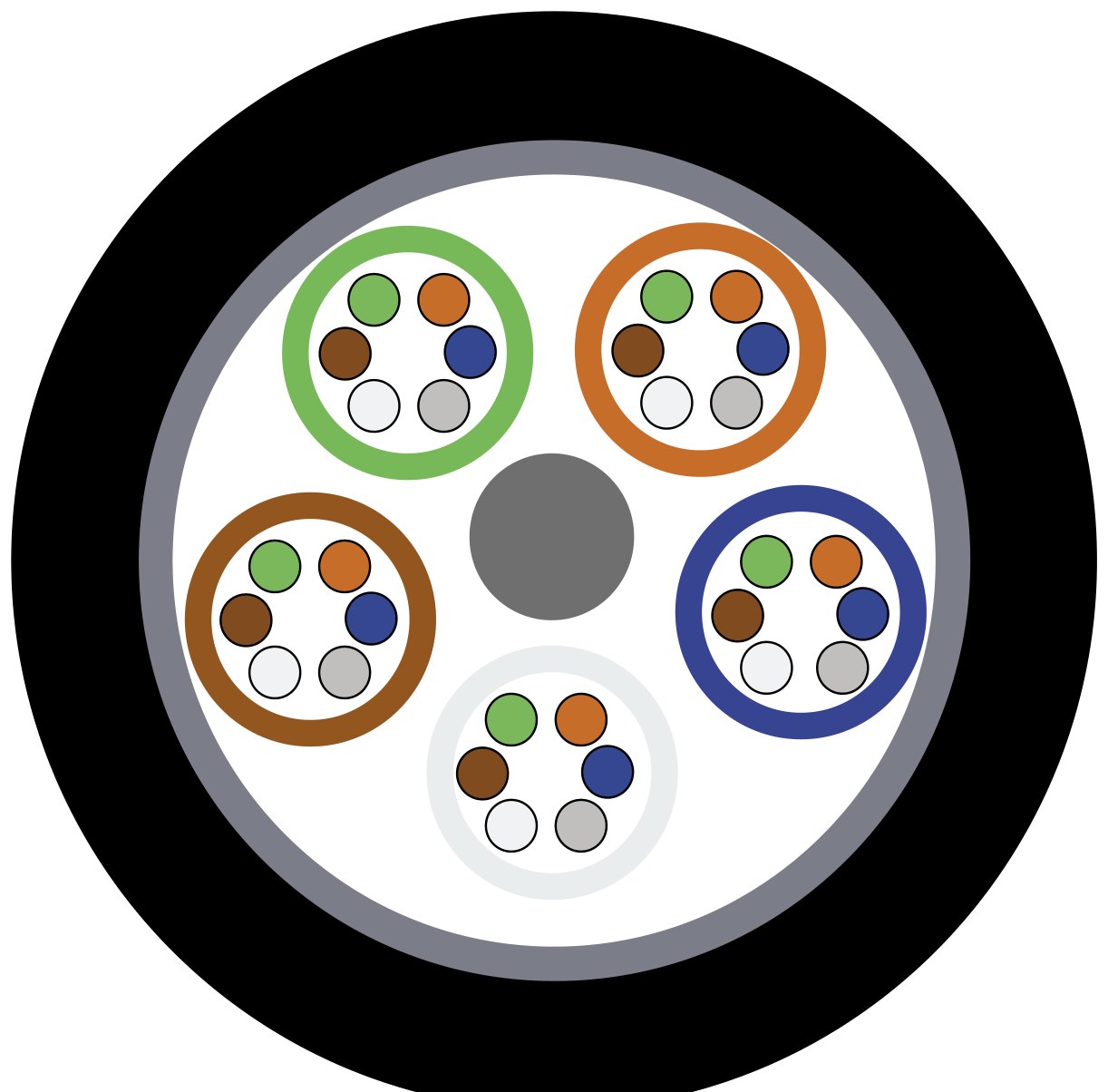

The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the metallic strength member to form the cable core. The steel tape (CST) is longitudinally armored over the cable core, which is filled with water blocking compound. Finally a PE jacket is extruded.
| Counts | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 | 146-216 | 218-288 |
|---|---|---|---|---|---|---|---|---|---|
| Max.fiber counts per tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Units(Tubes or Filler) | 5 | 6 | 5 | 6 | 8 | 10 | 12 | 18 | 24 |
| Cable Diameter（mm） | 9.2 | 9.6 | 9.7 | 10.2 | 11.5 | 12.8 | 14.0 | 14.3 | 16.2 |
| Weight（Kg/km） | 87 | 102 | 98 | 118 | 143 | 170 | 197 | 204 | 255 |
| Fiber Type | G652D G655 G657 50/125 62.5/125 | ||||||||
| Tensile Strength（N） | Long/Short Term：600/1500 | ||||||||
| Crush Resistance（N/100mm） | Long/Short Term：300/1000 | ||||||||
| Bending Radius(mm) | Static/Dynamic：10D/20D | ||||||||
| Temperature(℃) | Storage /Operation：-40℃~70℃ | ||||||||
Illustration

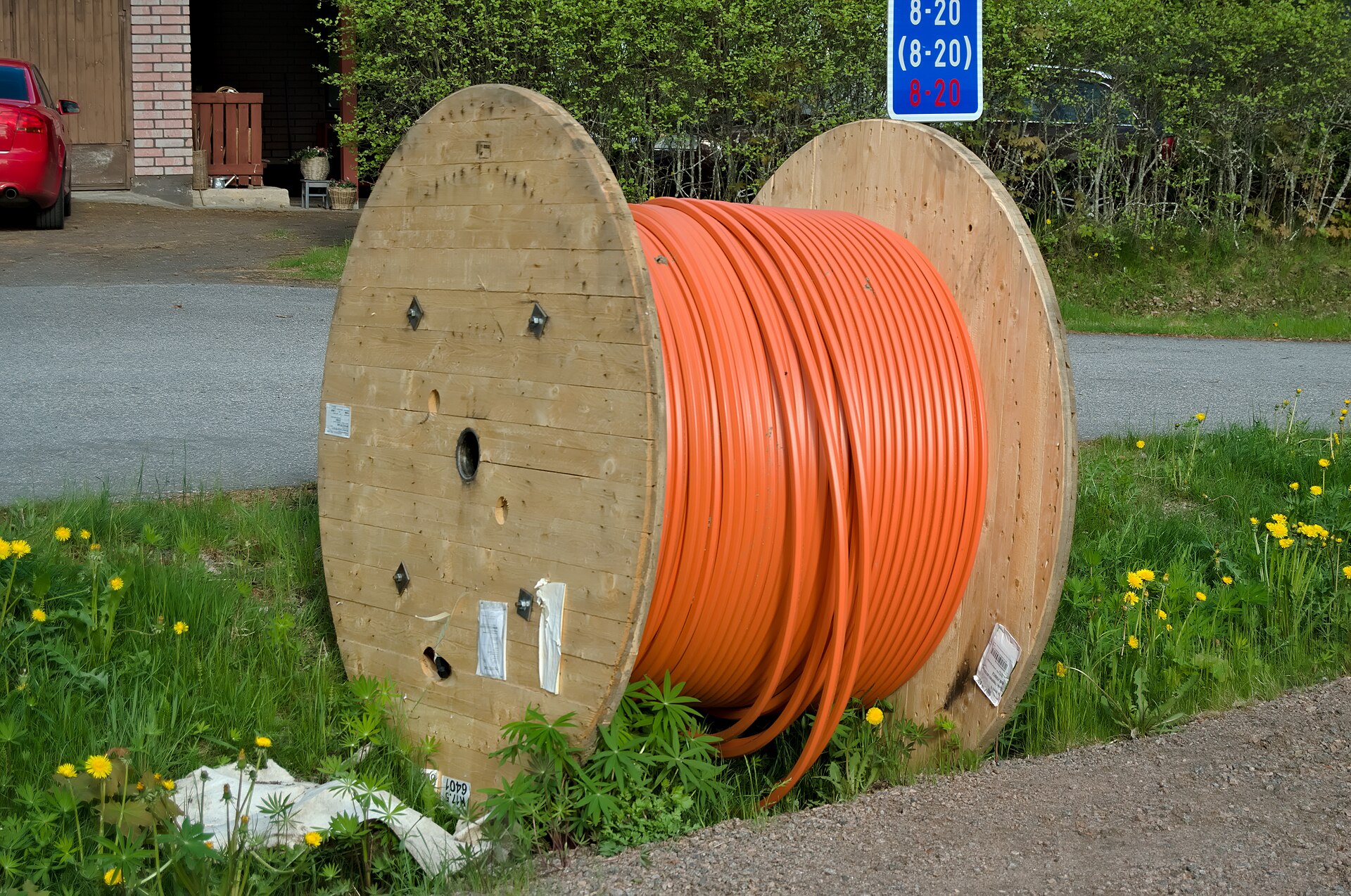

Reference photo of this product type — not the exact item shipped.
