GYFTY All Dielectric Outdoor Stranded Loose Tube Non-armored Fiber Optic Cable
GYFTY
GYFTY · no metal · lightning and EMI immune · duct and lashed aerial

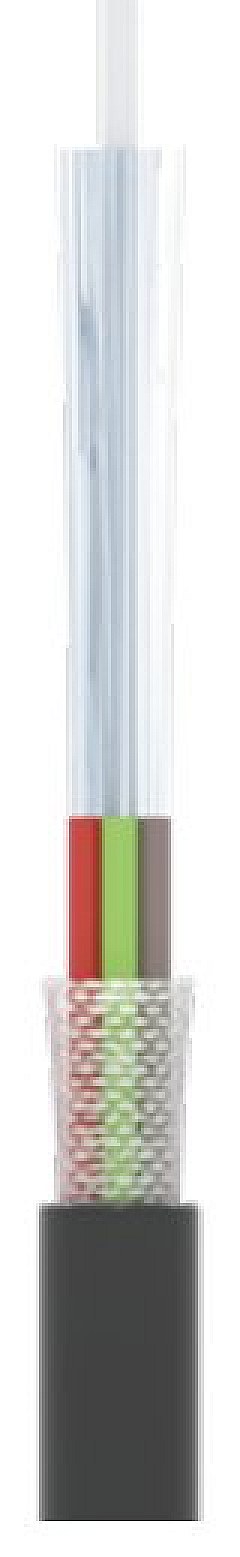

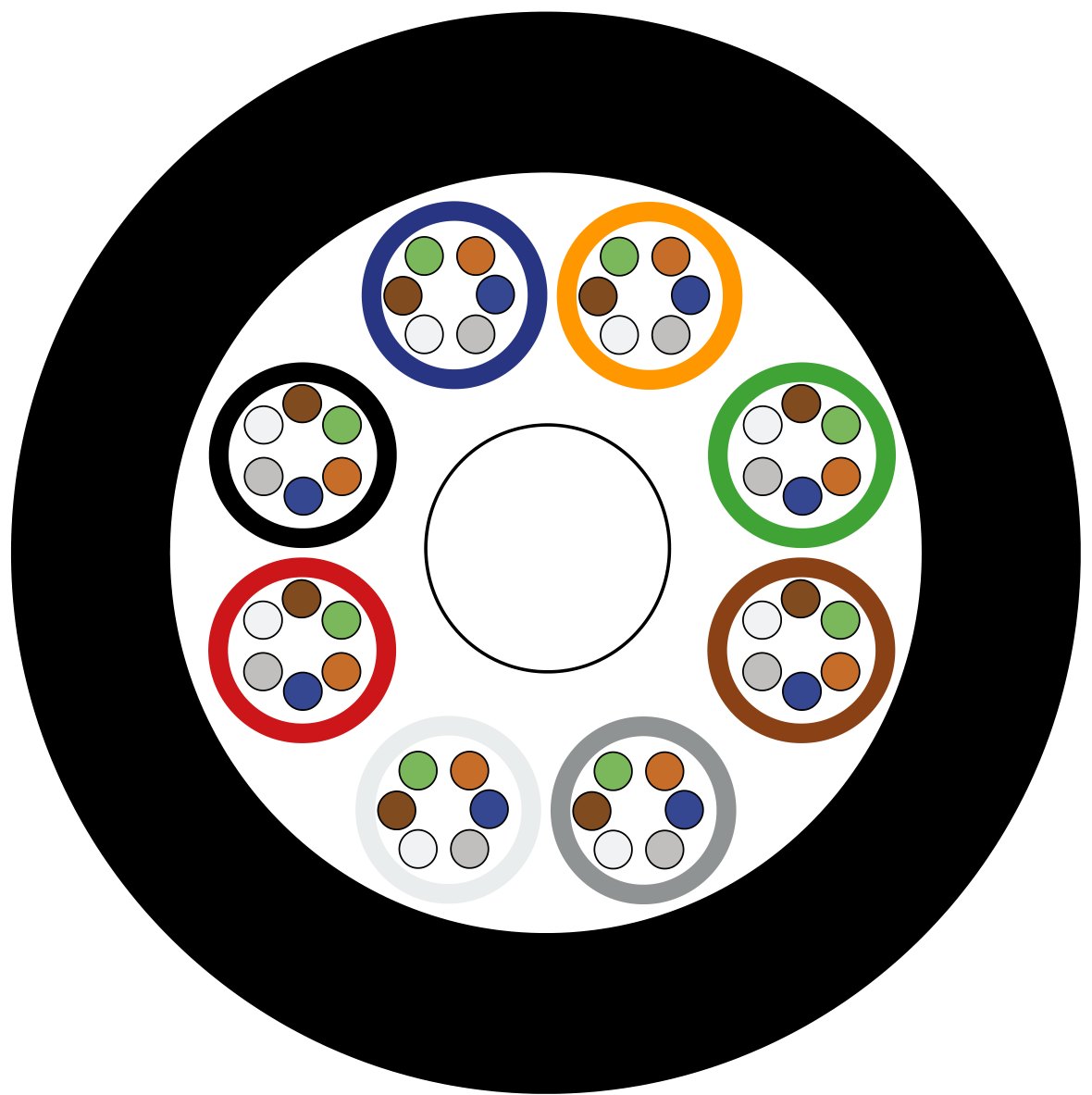

The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member （FRP) to form the cable core. Then the cable core is filled with the cable jelly to protect it from water penetration. Finally a PE jacket is extruded.
Key features
- Good mechanical and thermal performance
- FRP as the central strength member
- Hydrolysis resistant loose tube
- Tube filling gel ensures critical protection of fiber
- Stranded compact structure eliminating contraction of tubes
- Rugged, durable PE jacket protects against UV radiation, fungus etc.
- Non metallic, light in weight, convenient for application with power lines and lightning-prone area.
Applications
Quality & compliance
GYFTY
Quality highlights
- Tensile strength, long / short term: 600 / 1500 N
- Crush resistance, long / short term: 300 / 1000 N/100 mm
- Bending radius, dynamic / static: 20 D / 10 D
- Strength member: FRP central element (non-metallic)
- Transport / storage / operating temperature: -40 °C ~ +70 °C
Specifications
GYFTY
| Fiber Type | G652D G655 G657 50/125 62.5/125 |
|---|---|
| Tensile Strength（N） | Long/Short Term：600/1500 |
| Crush Resistance（N/100mm） | Long/Short Term：300/1000 |
| Bending Radius(mm) | Static/Dynamic：12.5D/25D |
| Temperature(℃) | Storage /Operation：-40℃~70℃ |
| Counts | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 | 146-216 | 218-288 |
|---|---|---|---|---|---|---|---|---|---|
| Max.fiber counts per tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Units(Tubes or Fillers) | 6 | 6 | 6 | 6 | 8 | 10 | 12 | 18 | 24 |
| Cable Diameter（mm） | 9.8 | 9.8 | 10.7 | 10.7 | 12.0 | 13.4 | 14.9 | 15.3 | 17.3 |
| Weight（Kg/km） | 78 | 78 | 93 | 93 | 117 | 146 | 180 | 185 | 240 |
| Fiber Type | G652D G655 G657 50/125 62.5/125 | ||||||||
| Tensile Strength（N） | Long/Short Term：600/1500 | ||||||||
| Crush Resistance（N/100mm） | Long/Short Term：300/1000 | ||||||||
| Bending Radius(mm) | Static/Dynamic：12.5D/25D | ||||||||
| Temperature(℃) | Storage /Operation：-40℃~70℃ | ||||||||
Illustration

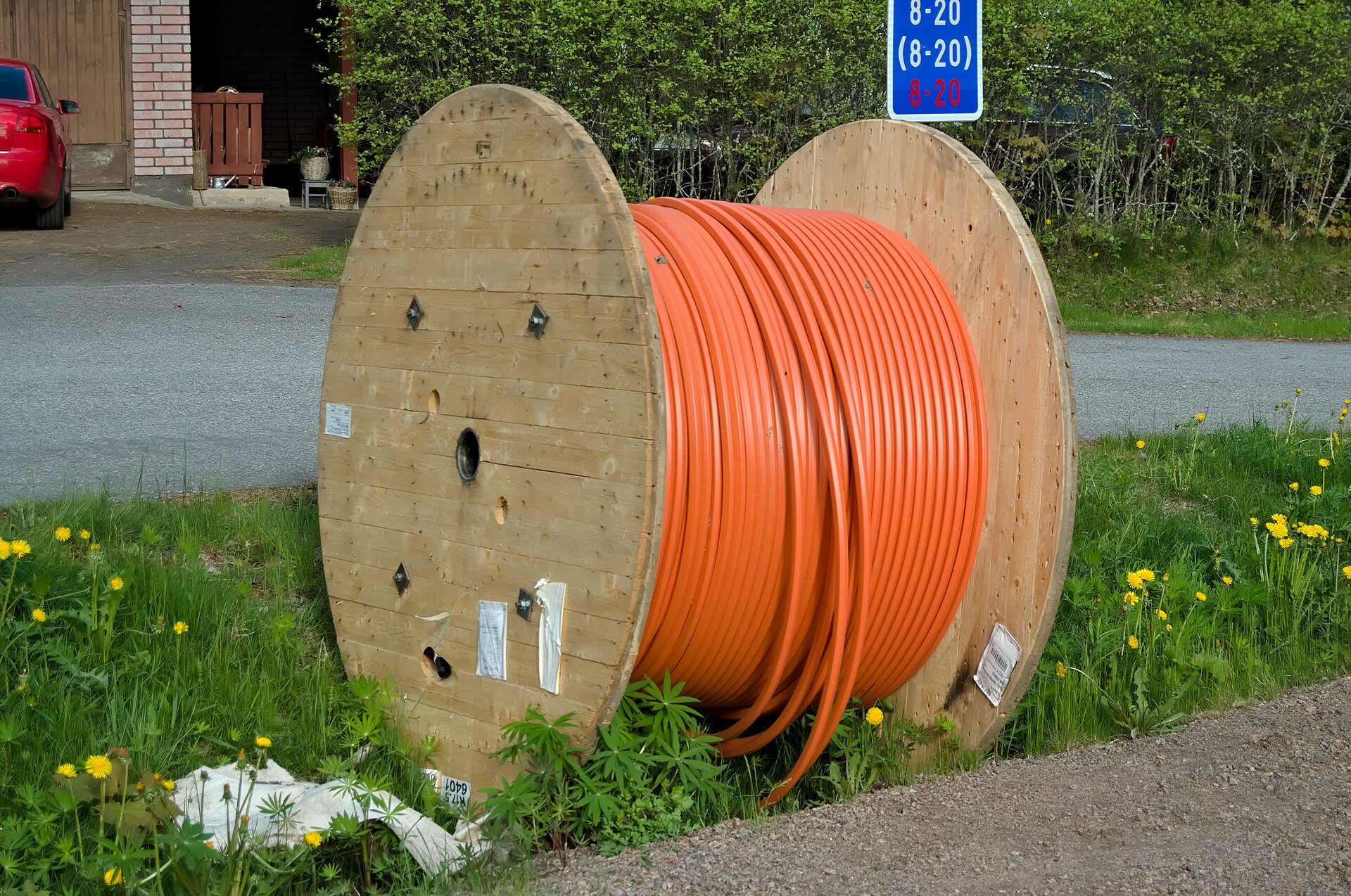

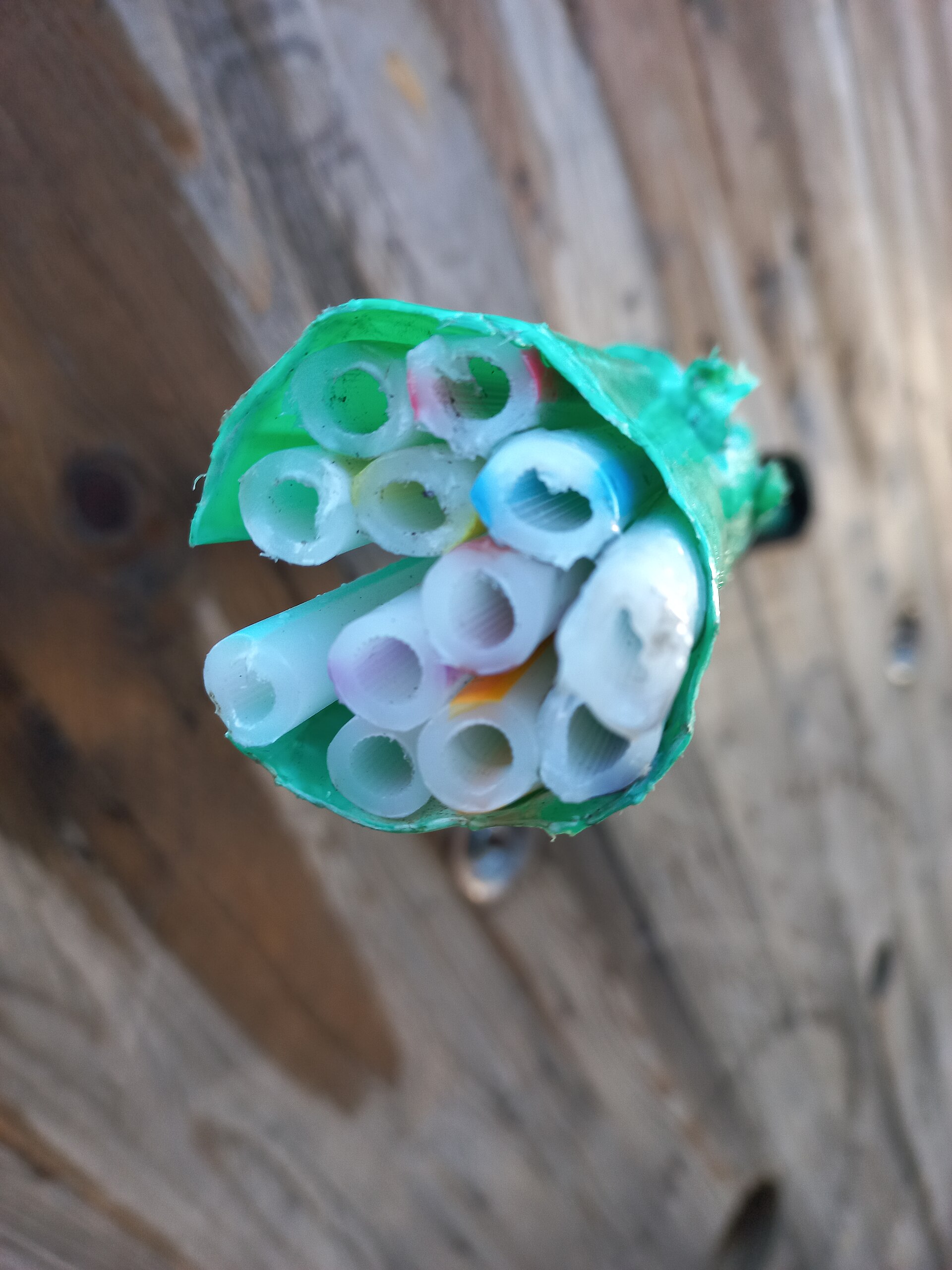

Reference photo of this product type — not the exact item shipped.
