Optical Fibre Cable
Indoor Multi-Unit Distribution Cable
GJPFJV
GJPFJV · 24–96 fibres · sub-units around a dielectric core · LSZH

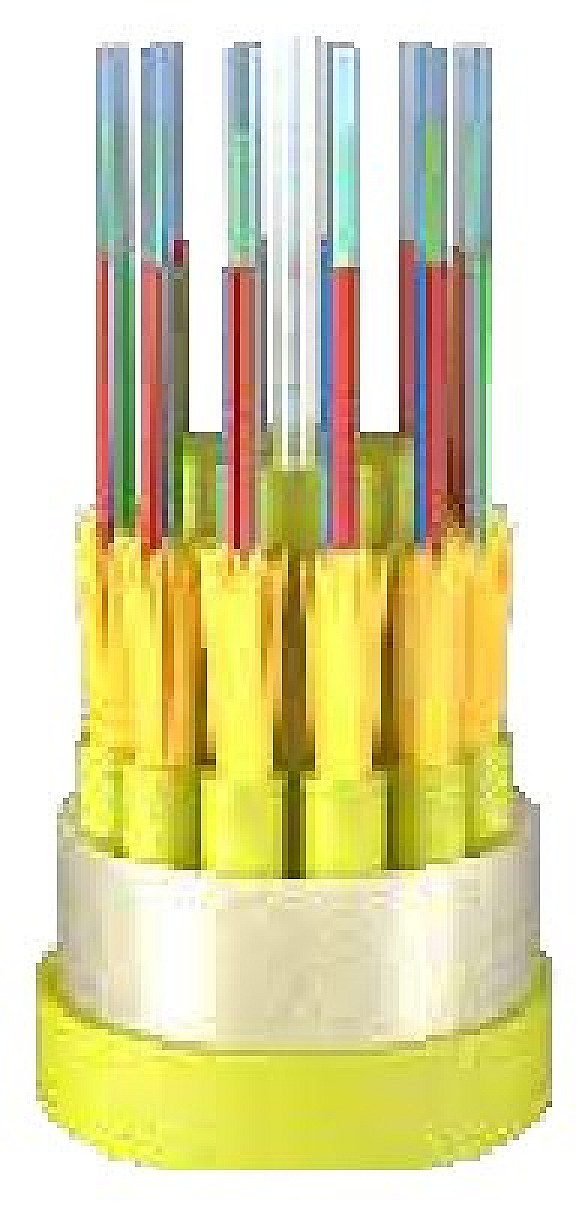

High-count indoor cable built from tight-buffered sub-units stranded around a non-metallic central core. Each sub-unit breaks out and terminates on its own, so a 96-fibre cable feeds many floors or racks from one pull.
Key features
- Non-metallic strength elements for higher tensile performance
- Compact structure with high fibre density
- Anti-corrosion, water-resistant, UV-stable, flame-retardant sheath
- Fully dielectric — no electromagnetic pick-up
Applications
Quality & compliance
GJPFJV
Standards & certifications
Quality highlights
- Tensile strength, long / short term: 400 / 1320 N
- Crush resistance, long / short term: 300 / 1000 N/100 mm
- Bending radius, dynamic / static: 20 D / 10 D
- Transport / storage / operating temperature: -20 °C ~ +60 °C
- Installation temperature: -5 °C ~ +50 °C
Specifications
GJPFJV
| GJPFJV-024 | 24 F · Ø 10.4 ± 0.5 mm · 96 kg/km |
|---|---|
| GJPFJV-030 | 30 F · Ø 12.4 ± 0.5 mm · 149 kg/km |
| GJPFJV-036 | 36 F · Ø 13.5 ± 0.5 mm · 185 kg/km |
| GJPFJV-048 | 48 F · Ø 15.7 ± 0.5 mm · 265 kg/km |
| GJPFJV-060 | 60 F · Ø 18.0 ± 0.5 mm · 350 kg/km |
| GJPFJV-072 | 72 F · Ø 20.5 ± 0.5 mm · 440 kg/km |
| GJPFJV-096 | 96 F · Ø 20.5 ± 0.5 mm · 448 kg/km |
| Tensile strength, long / short term | 400 / 1320 N |
|---|---|
| Crush resistance, long / short term | 300 / 1000 N/100 mm |
| Bending radius, dynamic / static | 20 D / 10 D |
| Jacket | PVC or LSZH |
|---|---|
| Sub-units | 900 µm tight-buffered fibres + aramid, stranded |
| Central element | Dielectric (non-metallic) |
| Transport / storage / operating temperature | -20 °C ~ +60 °C |
|---|---|
| Installation temperature | -5 °C ~ +50 °C |
| Standards | YD/T 1258.4-2005, ICEA-596, GR-409, IEC 60794-2-20/21, IEC 60332-1, IEC 60332-3C |
Illustration

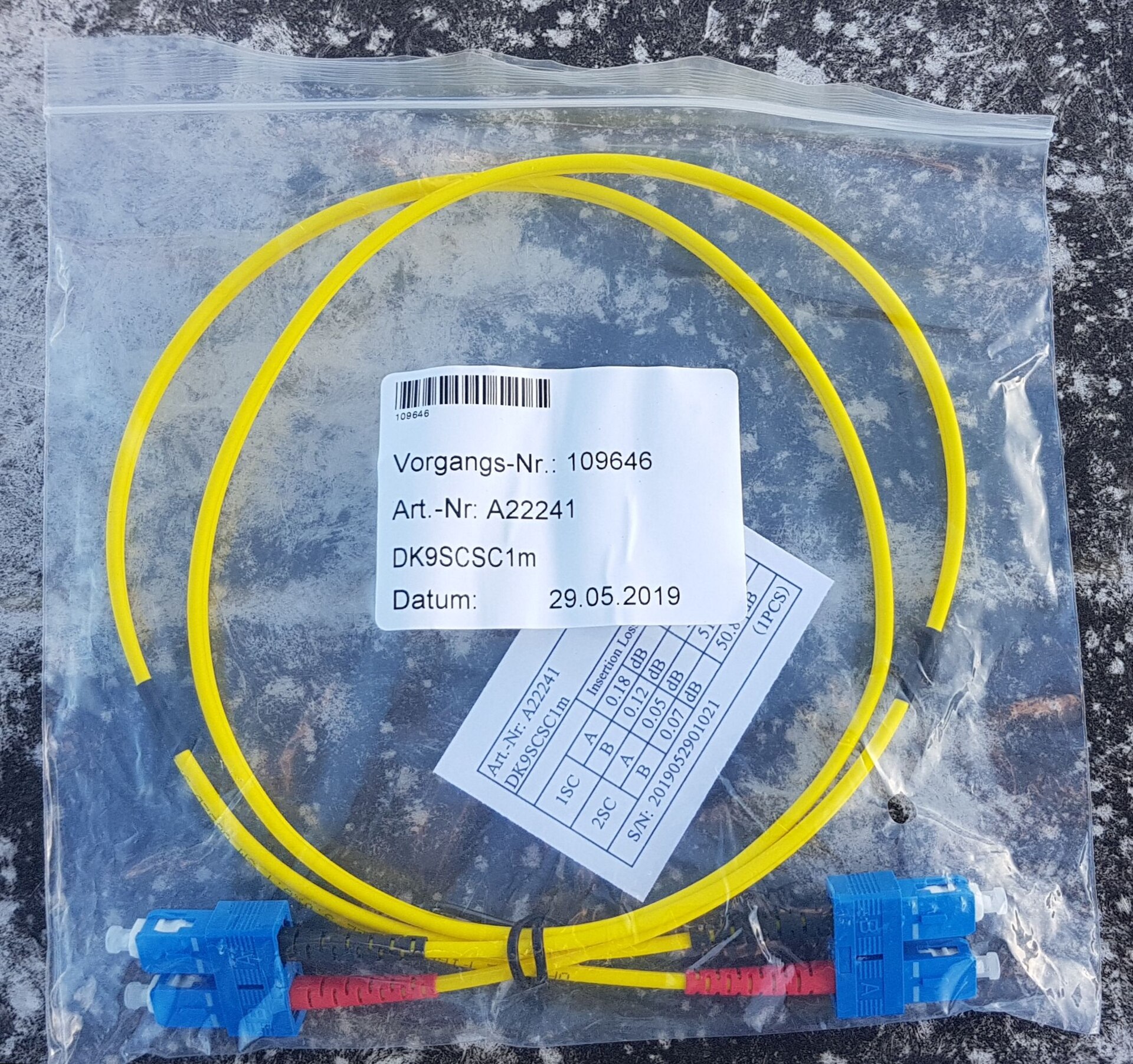

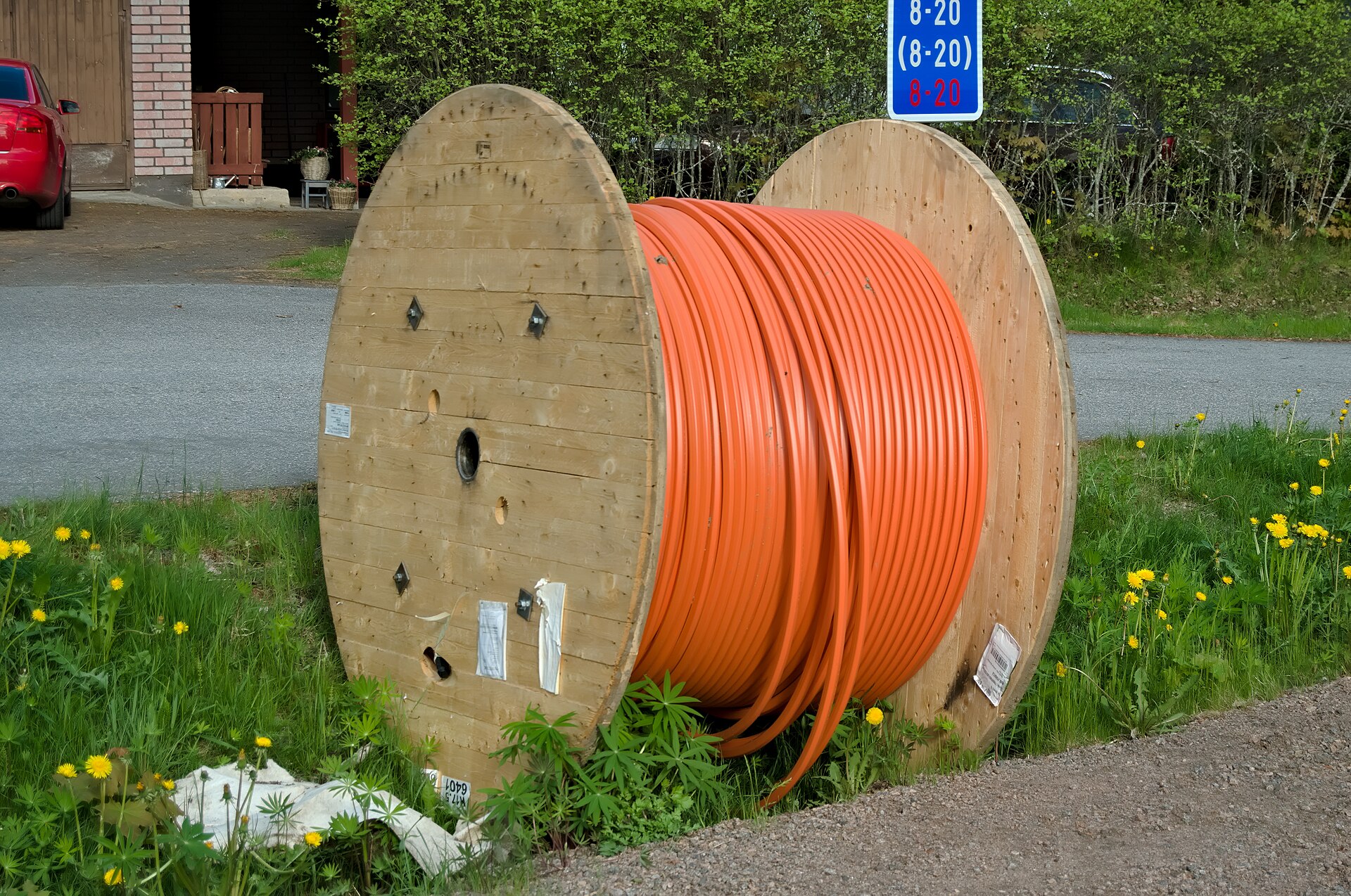

Reference photo of this product type — not the exact item shipped.
