Optical Fibre Cable
GJXFH Drop Cable
GJXFH
LSZH · 1 / 2 / 4 cores · flat self-supporting profile
FTTH drop fiber optic cable is a very good fiber optic solution to the last mile of the home. CROFC provides different numbers of FTTH drop cables from 1 core, 2 core, 4 core, 6 core, 8 core, and 12 core, etc. Excellent bending performance and convinient geometries Simple structure, light weight, high tensile strength and metal-free Grooved design, easy to strip and splice, simplified installation and maintenance Low smoke, zero halogen and flame retardant jacket, environment-friendly
Applications
Quality & compliance
GJXFH
Standards & certifications
Quality highlights
- Strength members: Metallic, FRP or KFRP · Ø 0.45 mm × 2 (0.5 mm on request)
- Maximum tensile load: 80 N
- Crush resistance: 1000 N/10 cm
- Bending radius, dynamic / static: ≥ 20 D / ≥ 10 D
- Operating / installation / storage temperature: -10 °C ~ +60 °C
Specifications
GJXFH
| Counts | 1-4 |
|---|---|
| Diameter（mm） | 2.0*3.0 |
| Weight（Kg/km） | 6.9 |
| Fiber Type | G652D G657 |
| Tensile Strength（N） | Long/Short Term：40/80 |
| Crush Resistance（N/100mm） | Long/Short Term：500/1000 |
| Bending Radius(mm) | Static/Dynamic：G652D：30D/60D；G657：20D/40D |
| Temperature(℃) | Storage /Operation：-20℃ ~70℃ |

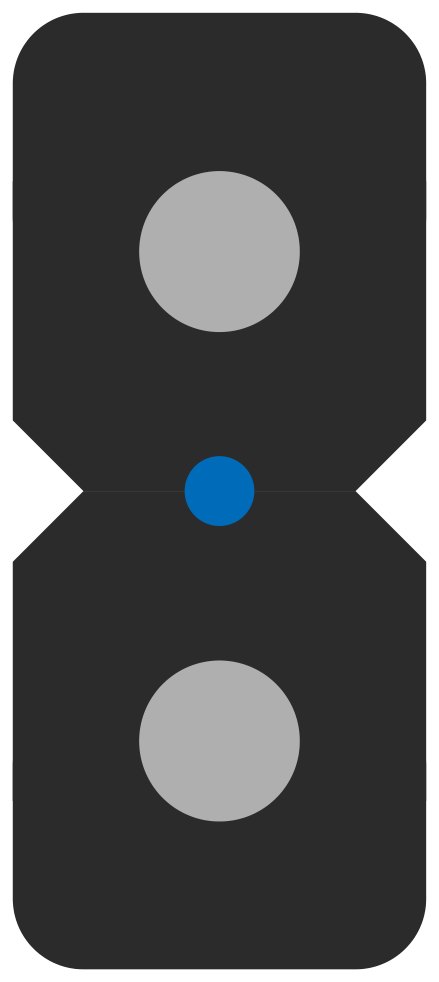

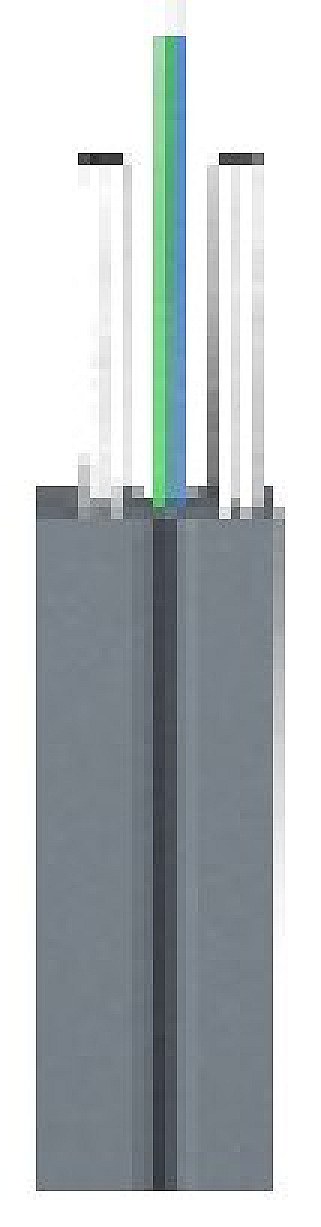

The bending insensitive fiber unit is positioned in the center. Two parallel non-metallic strength member (FRP) are placed at both sides, then a black or colored LSZH jacket is extruded.
| Counts | 1-4 | |||||||
|---|---|---|---|---|---|---|---|---|
| Diameter（mm） | 2.0*3.0 | |||||||
| Weight（Kg/km） | 6.9 | |||||||
| Fiber Type | G652D G657 | |||||||
| Tensile Strength（N） | Long/Short Term：40/80 | |||||||
| Crush Resistance（N/100mm） | Long/Short Term：500/1000 | |||||||
| Bending Radius(mm) | Static/Dynamic：G652D：30D/60D；G657：20D/40D | |||||||
| Temperature(℃) | Storage /Operation：-20℃ ~70℃ | |||||||
Illustration

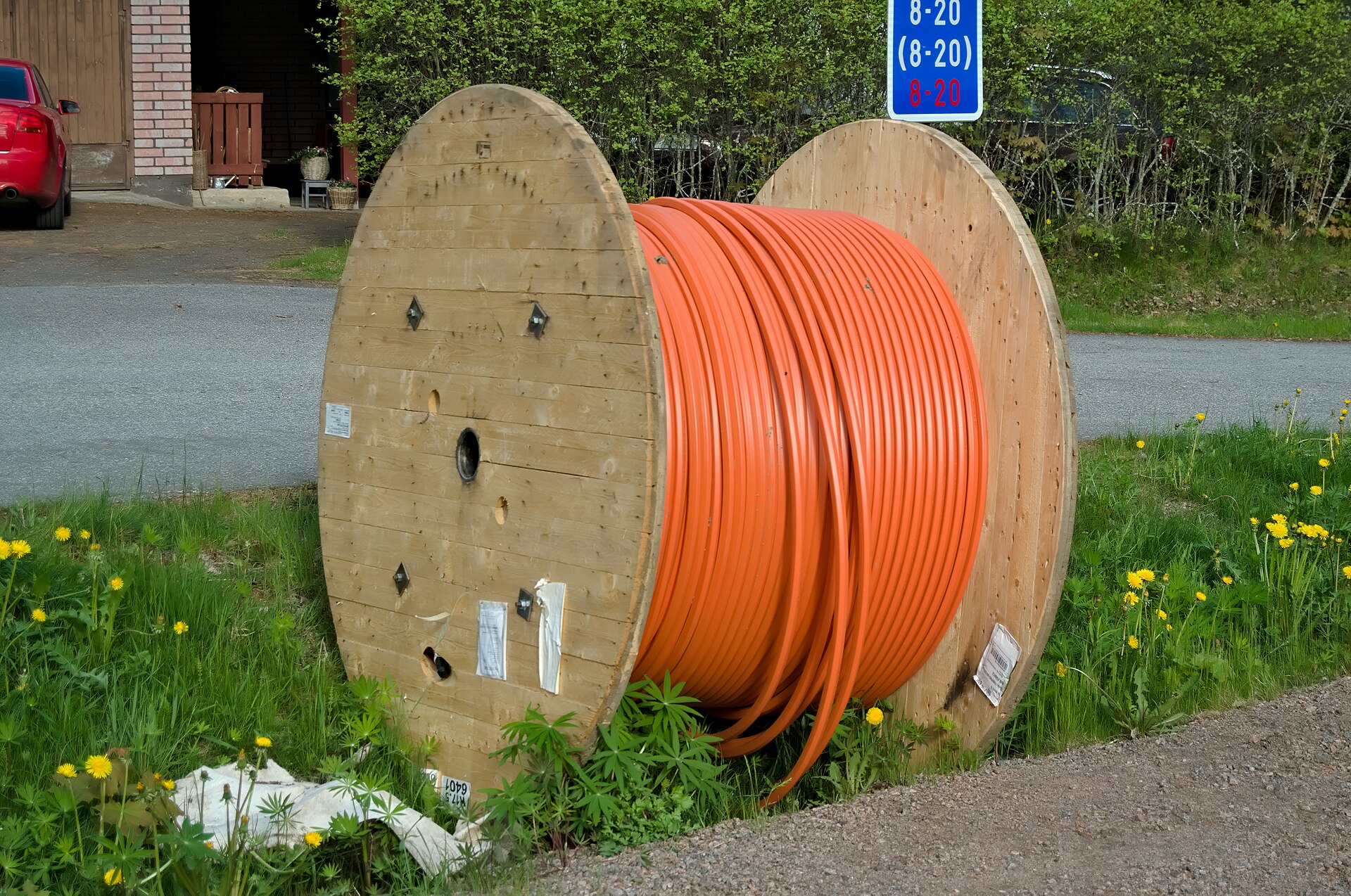

Reference photo of this product type — not the exact item shipped.
