Optical Fibre Cable
Armoured Building Access Cable, LSZH
GJYFTZX-A
GJYFTZX-A · 2–24 fibres · corrugated steel tape · LSZH
The GYFXTH_G with a corrugated steel layer added under the LSZH jacket. Same slim uni-tube construction, but with real resistance to rodents and crushing — for basements, service ducts and anywhere the cable is not protected.
Key features
- Good mechanical and thermal behaviour
- Loose tube with high hydrolysis resistance; aramid yarns for tensile strength
- PSP steel tape improves moisture and rodent resistance
- Small diameter, light weight, long delivery lengths
Applications
Quality & compliance
GJYFTZX-A
Standards & certifications
Quality highlights
- Crush resistance, long / short term: 300 / 1000 N/100 mm
- Bending radius, dynamic / static: 20 D / 10 D
- Strength member: Glass or aramid yarns
- Transport / storage / operating temperature: -20 °C ~ +60 °C
- Installation temperature: -5 °C ~ +50 °C
Specifications
GJYFTZX-A
| GJYFTZX-A-2-12 | 2–12 F · Ø 7.0 ± 0.5 mm · tube Ø 2.5 mm · 63 kg/km · tensile 200/660 N |
|---|---|
| GJYFTZX-A-14-24 | 14–24 F · Ø 7.5 ± 0.5 mm · tube Ø 3.0 mm · 70 kg/km · tensile 400/1330 N |
| Crush resistance, long / short term | 300 / 1000 N/100 mm |
|---|---|
| Bending radius, dynamic / static | 20 D / 10 D |
| Outer jacket | LSZH |
|---|---|
| Armour | Corrugated steel tape (PSP) |
| Strength member | Glass or aramid yarns |
| Core | Single loose tube, gel-filled, 250 µm fibres |
| Transport / storage / operating temperature | -20 °C ~ +60 °C |
|---|---|
| Installation temperature | -5 °C ~ +50 °C |
| Standards | YD/T 1258.4-2005, ICEA-596, GR-409, IEC 60794, IEC 60332-1, IEC 60332-3C |

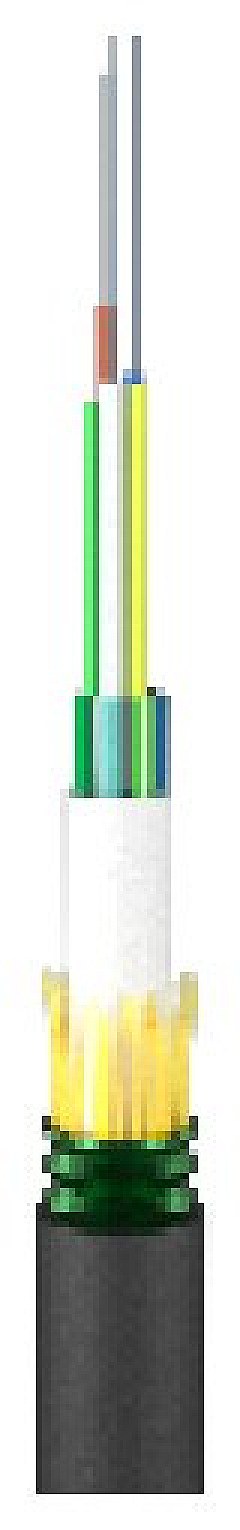

Illustration

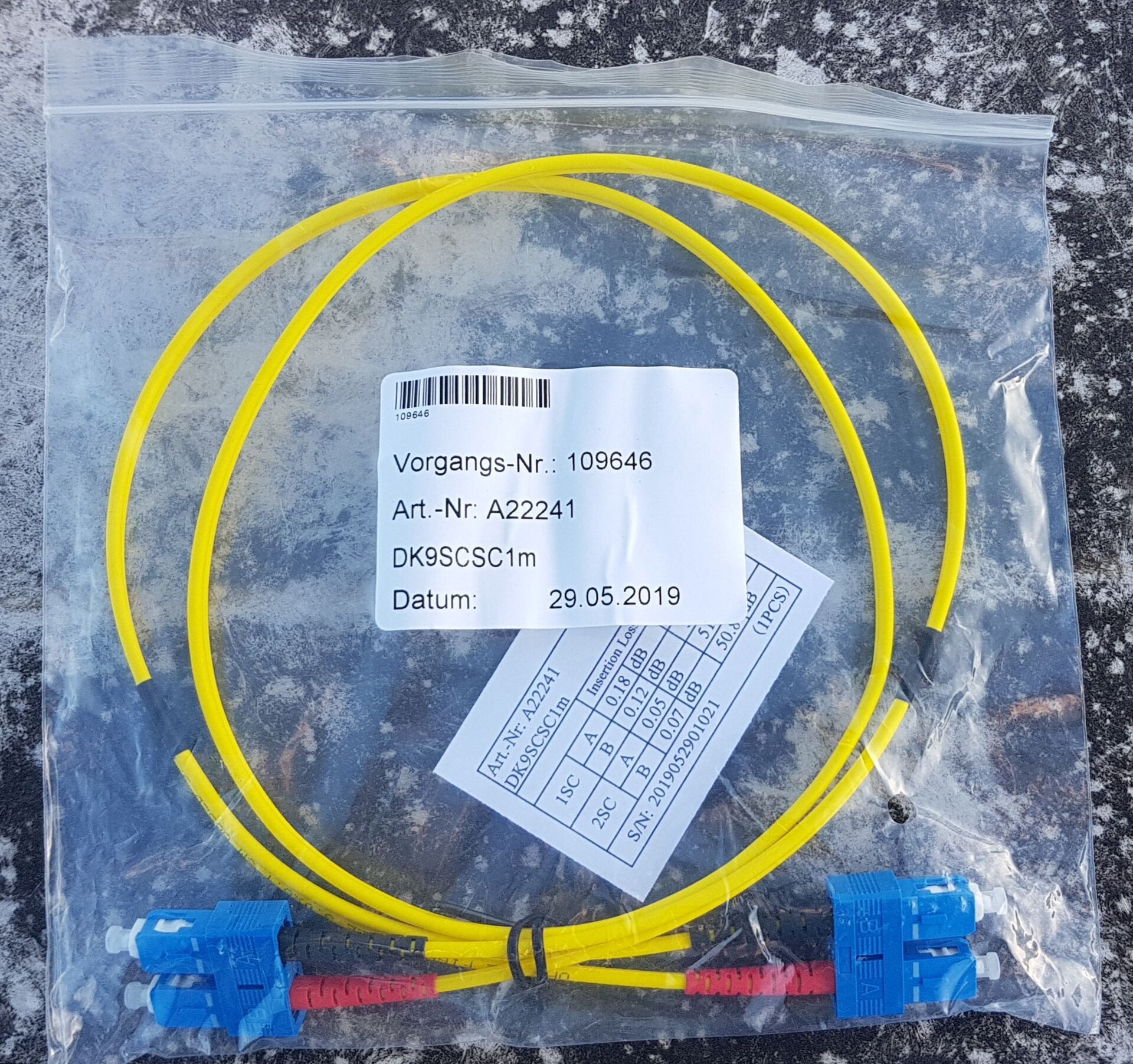

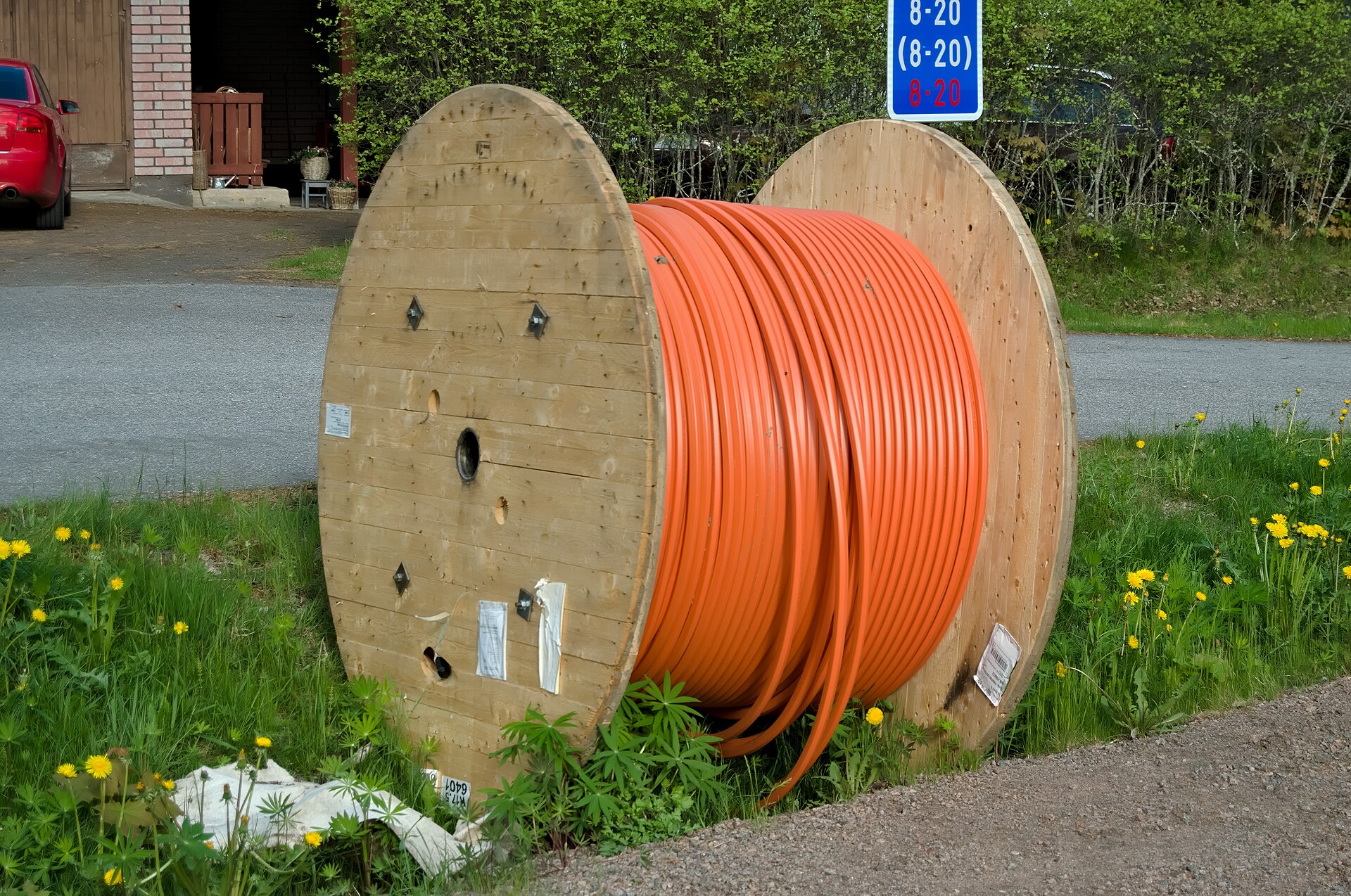

Reference photo of this product type — not the exact item shipped.
