Optical Fibre Cable
Flat Drop Cable for Duct
GJYX(F)HA

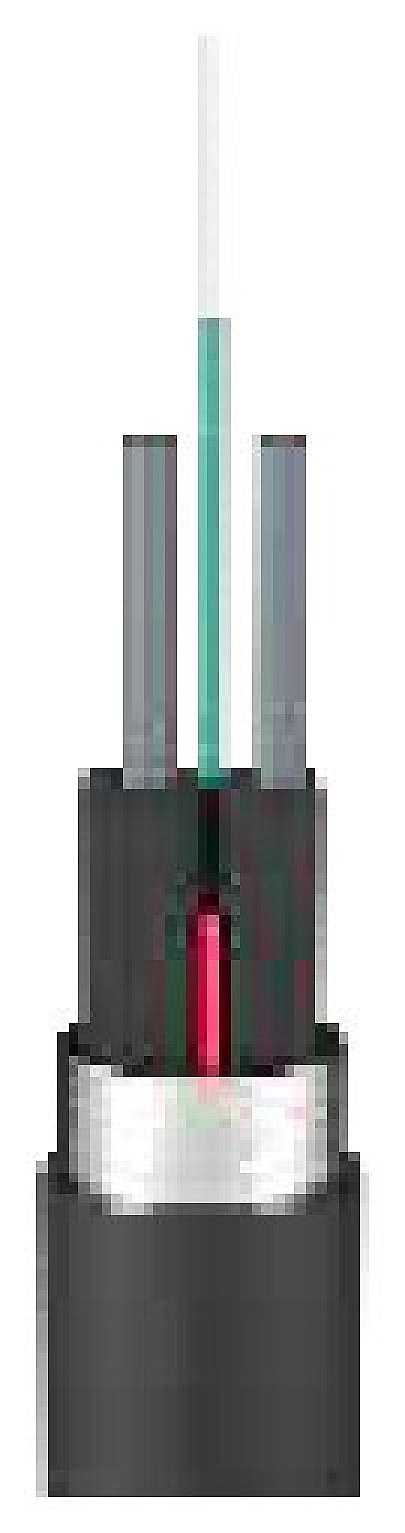

GJYX(F)HA · 1–6 fibres · flat drop inside an armoured Ø 7 mm PE sheath
A standard flat FTTH drop, but wrapped in water-blocking tape, corrugated steel armour and a round PE jacket. It can be blown or pulled through duct and buried on the last few metres to the home, then the inner flat drop is exposed and terminated like any other.
Key features
- G.657 bend-insensitive fibres, 1 to 6 count
- Metallic or dielectric (FRP / KFRP) strength members
- Water blocker + corrugated steel armour + PE outer jacket
- Inner LSZH flat drop can be stripped out and terminated directly
Applications
Quality & compliance
GJYX(F)HA
Standards & certifications
Quality highlights
- Tensile strength, long / short term: 300 / 600 N
- Crush resistance, long / short term: 1000 / 2200 N/100 mm
- Bending radius, dynamic / static: 10 D / 20 D
- Water blocking: Swellable tape
- Transport / storage / operating temperature: -20 °C ~ +60 °C
Specifications
GJYX(F)HA
| GJYX(F)HA-1 | 1 F · Ø 7.0 mm · 49 kg/km |
|---|---|
| GJYX(F)HA-2 | 2 F · Ø 7.0 mm · 49 kg/km |
| GJYX(F)HA-4 | 4 F · Ø 7.0 mm · 49 kg/km |
| GJYX(F)HA-6 | 6 F · Ø 7.0 mm · 49 kg/km |
| Tensile strength, long / short term | 300 / 600 N |
|---|---|
| Crush resistance, long / short term | 1000 / 2200 N/100 mm |
| Bending radius, dynamic / static | 10 D / 20 D |
| Outer jacket | PE |
|---|---|
| Armour | Corrugated steel tape |
| Water blocking | Swellable tape |
| Inner cable | LSZH flat drop, metallic or dielectric (FRP / KFRP) strength members |
| Fibre | ITU-T G.657 |
| Transport / storage / operating temperature | -20 °C ~ +60 °C |
|---|---|
| Installation temperature | -5 °C ~ +50 °C |
| Standards | IEC 60793-1, IEC 60793-2, EIA/TIA-598-B, ITU-T G.650, ITU-T G.657 |

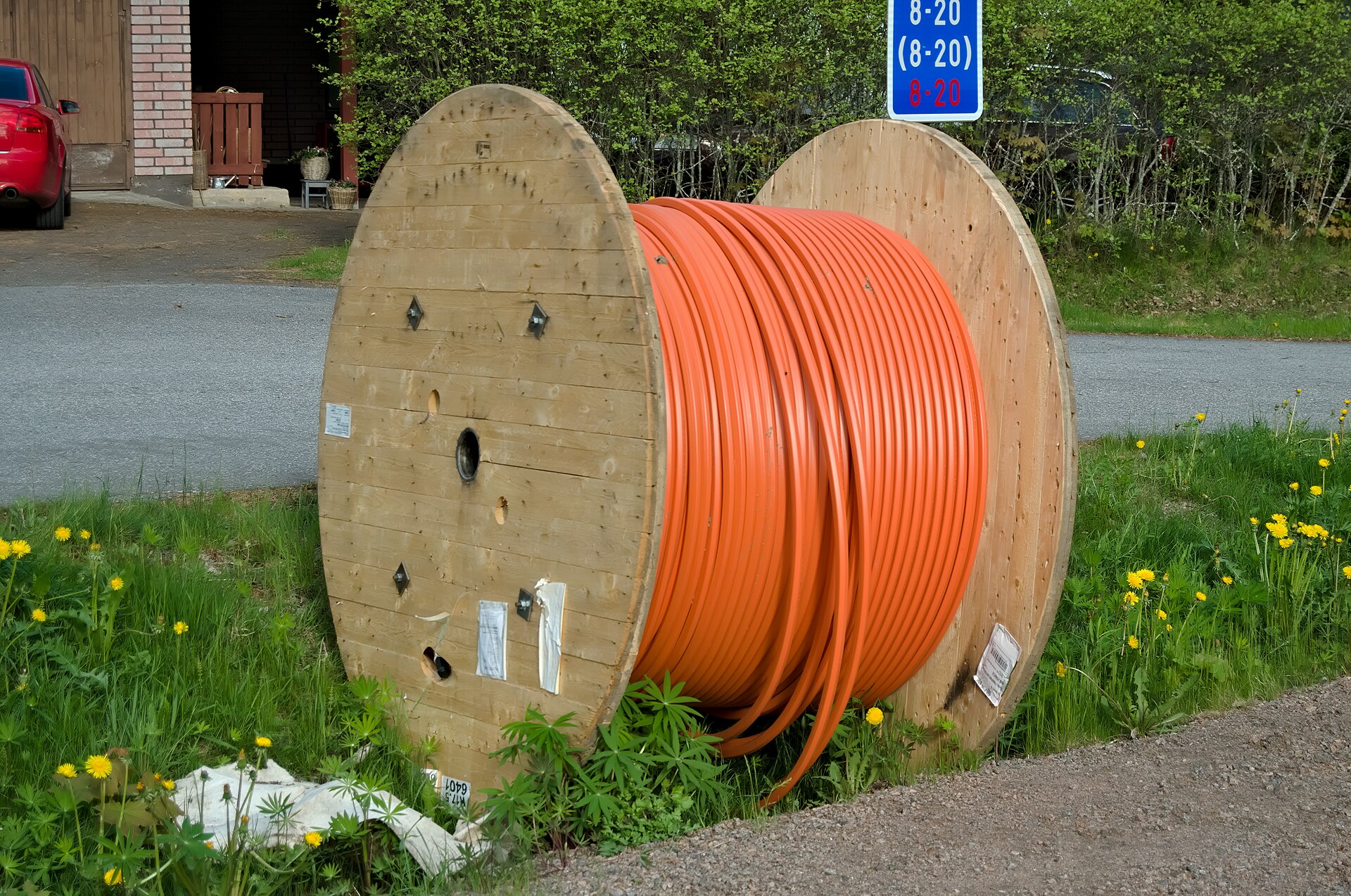

Illustration
Reference photo of this product type — not the exact item shipped.
