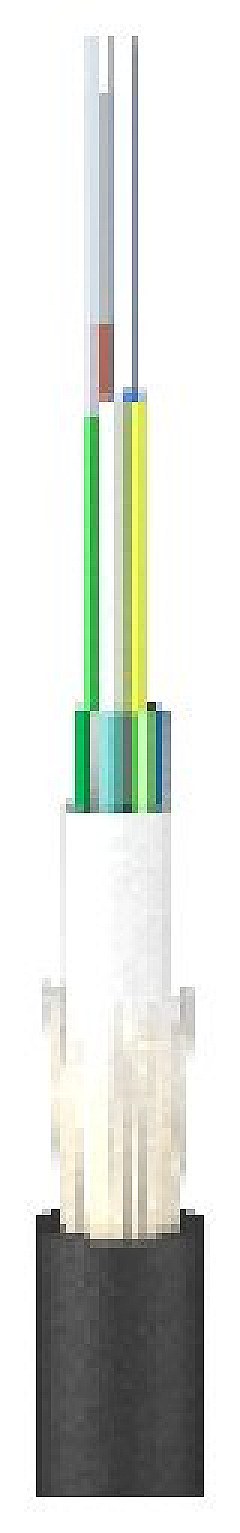

Optical Fibre Cable
Building Access Cable, LSZH
GYFXTH_G
GYFXTH_G · 2–24 fibres · Ø 6 mm · glass-yarn reinforced · low smoke zero halogen
Slim uni-tube cable for bringing fibre from the street into and through a building. Glass yarns carry the tension, the loose tube is gel-filled for water blocking, and the LSZH jacket is what building codes ask for indoors.
Key features
- Good mechanical and thermal performance
- Loose tube with high hydrolysis resistance
- Glass yarn reinforcement guarantees tensile strength
- Crush resistant and flexible; LSZH flame-retardant jacket
Applications
Quality & compliance
GYFXTH_G
Standards & certifications
Quality highlights
- Crush resistance, long / short term: 300 / 1000 N/100 mm
- Bending radius, dynamic / static: 20 D / 10 D
- Strength member: Glass or aramid yarns
- Transport / storage / operating temperature: -20 °C ~ +60 °C
- Installation temperature: -5 °C ~ +50 °C
Specifications
GYFXTH_G
| GYFXTH_G-2-12 | 2–12 F · Ø 6.0 ± 0.3 mm · tube Ø 2.5 mm · 43 kg/km · tensile 200/660 N |
|---|---|
| GYFXTH_G-14-24 | 14–24 F · Ø 6.0 ± 0.3 mm · tube Ø 3.0 mm · 48 kg/km · tensile 400/1330 N |
| Crush resistance, long / short term | 300 / 1000 N/100 mm |
|---|---|
| Bending radius, dynamic / static | 20 D / 10 D |
| Outer jacket | LSZH |
|---|---|
| Strength member | Glass or aramid yarns |
| Core | Single loose tube, gel-filled, 250 µm fibres |
| Transport / storage / operating temperature | -20 °C ~ +60 °C |
|---|---|
| Installation temperature | -5 °C ~ +50 °C |
| Standards | YD/T 1258.4-2005, ICEA-596, GR-409, IEC 60794, IEC 60332-1, IEC 60332-3C |
Illustration

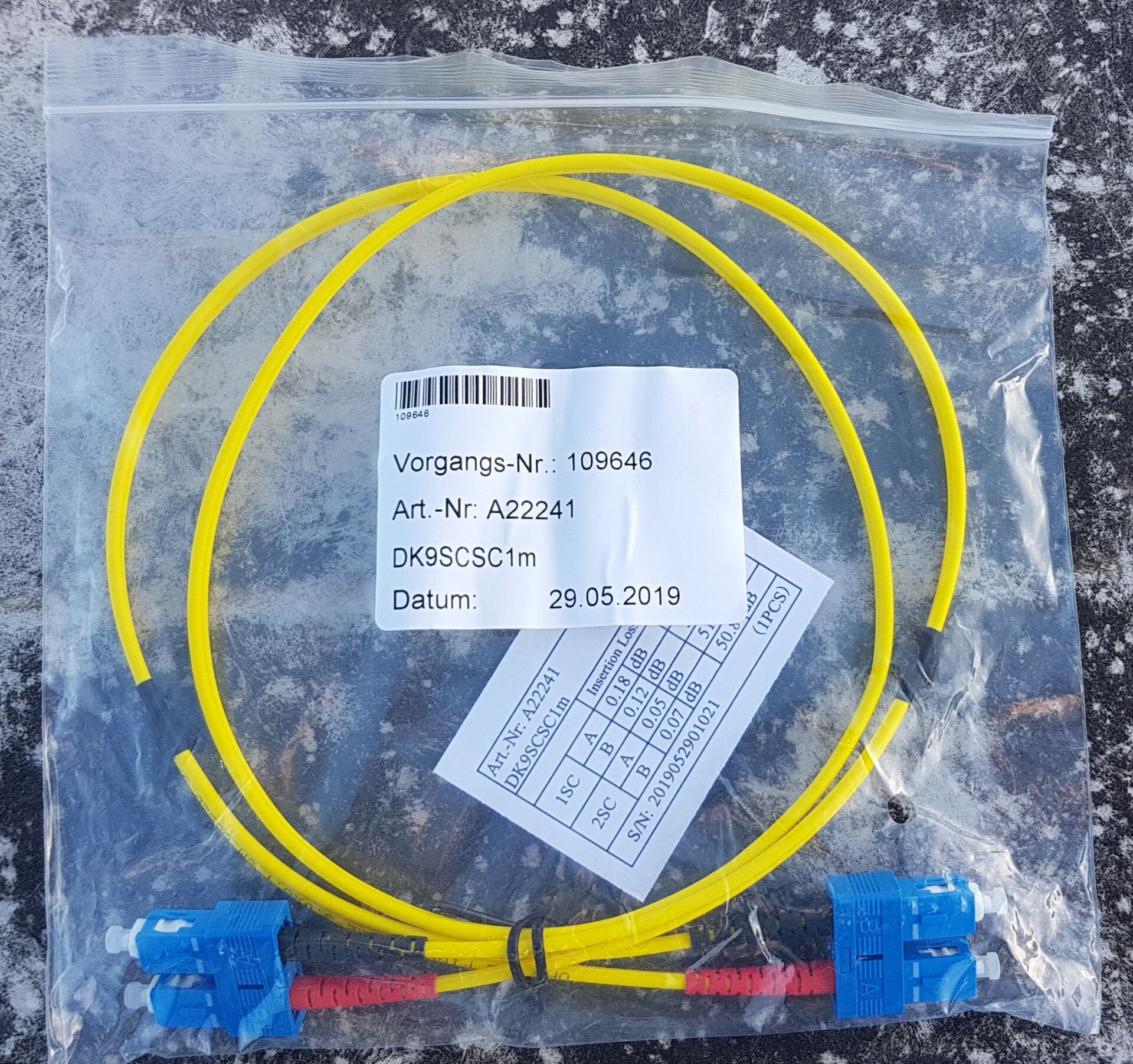

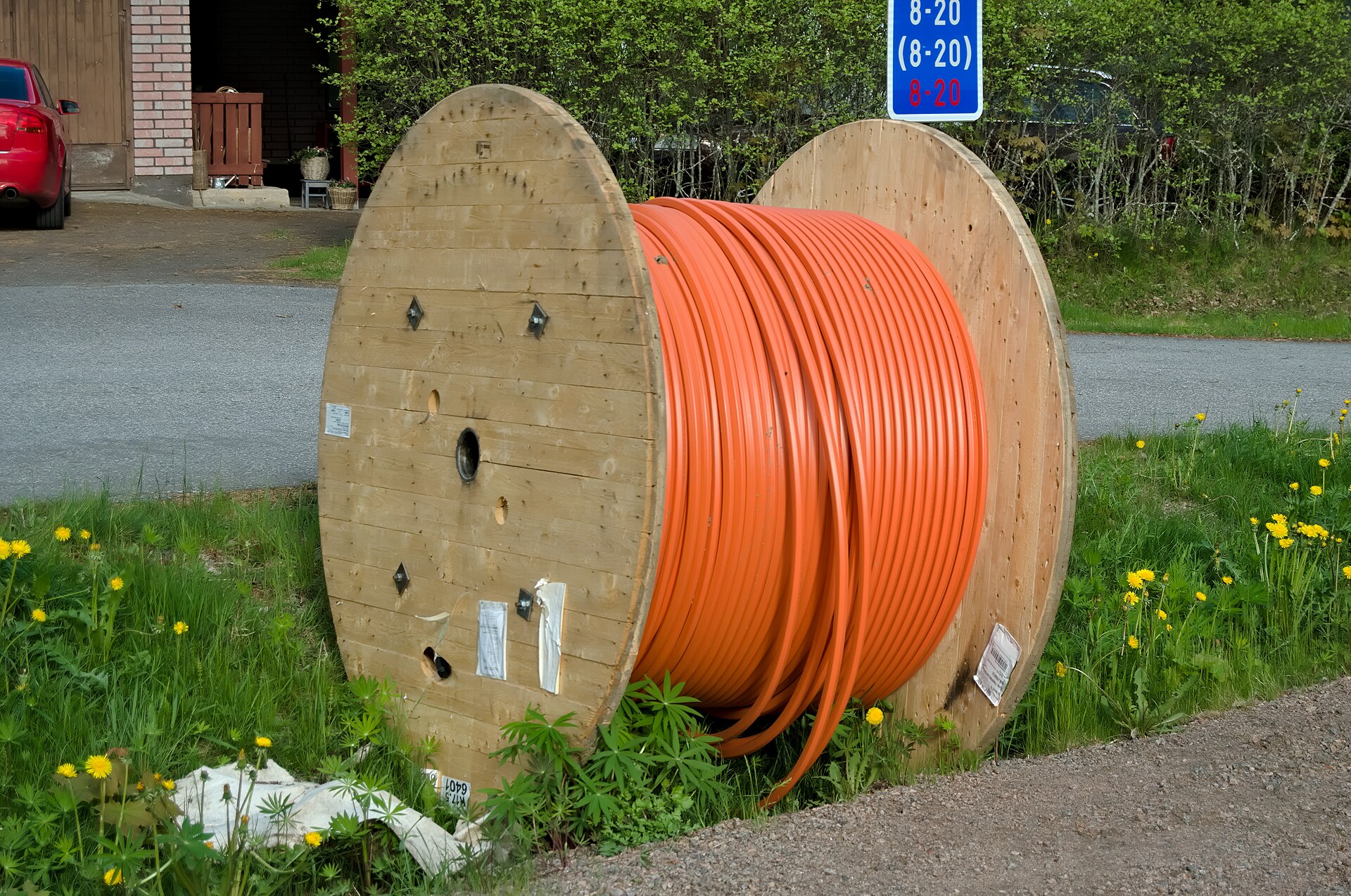

Reference photo of this product type — not the exact item shipped.
