Optical Fibre Cable
Dielectric Central-Tube Cable
GYFXY
GYFXY · 2–24 fibres · parallel FRP rods · no metal
The metal-free twin of GYXTW: two parallel FRP rods carry the tension and there is no armour or steel wire anywhere. Aerial and duct access cable for routes where bonding and lightning are a concern.
Key features
- Excellent crush resistance and flexibility
- Up to 24 fibres (G.652.D, G.657.A1 or G.657.A2) in one central loose tube
- Fully dielectric — no bonding, immune to lightning and EMI
- Water-blocking elements inside the cable
Applications
Quality & compliance
GYFXY
Standards & certifications
Quality highlights
- Tensile strength, long / short term: 600 / 1500 N
- Crush resistance, long / short term: 300 / 1000 N/100 mm
- Bending radius, dynamic / static: 25 D / 12.5 D
- Strength member: 2 parallel FRP rods
- Transport / storage / operating temperature: -40 °C ~ +70 °C
Specifications
GYFXY
| GYFXY-2~12 | 2–12 F · Ø 7.5 mm · 48 kg/km |
|---|---|
| GYFXY-14~24 | 14–24 F · Ø 8.0 mm · 55 kg/km |
| Tensile strength, long / short term | 600 / 1500 N |
|---|---|
| Crush resistance, long / short term | 300 / 1000 N/100 mm |
| Bending radius, dynamic / static | 25 D / 12.5 D |
| Outer jacket | PE |
|---|---|
| Strength member | 2 parallel FRP rods |
| Core | Single central loose tube, water-blocking |
| Transport / storage / operating temperature | -40 °C ~ +70 °C |
|---|---|
| Standards | YD/T 769-2010 |

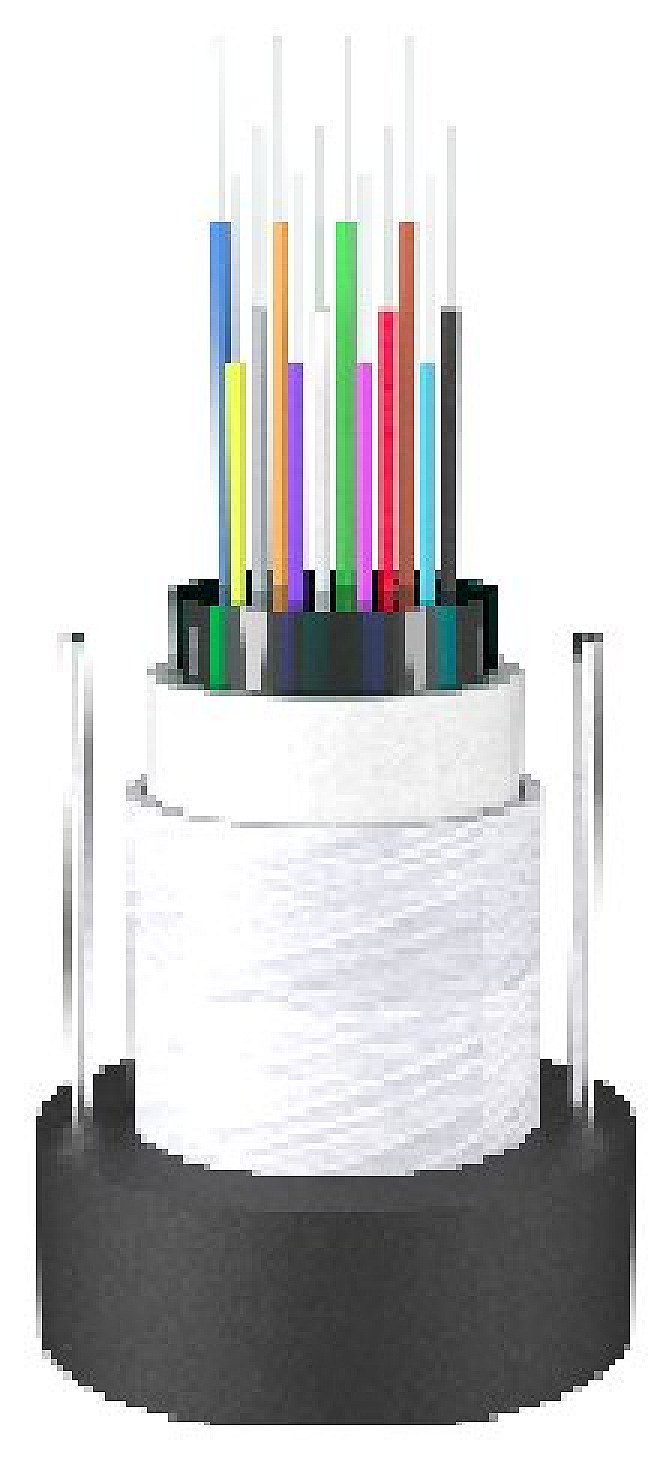

Illustration

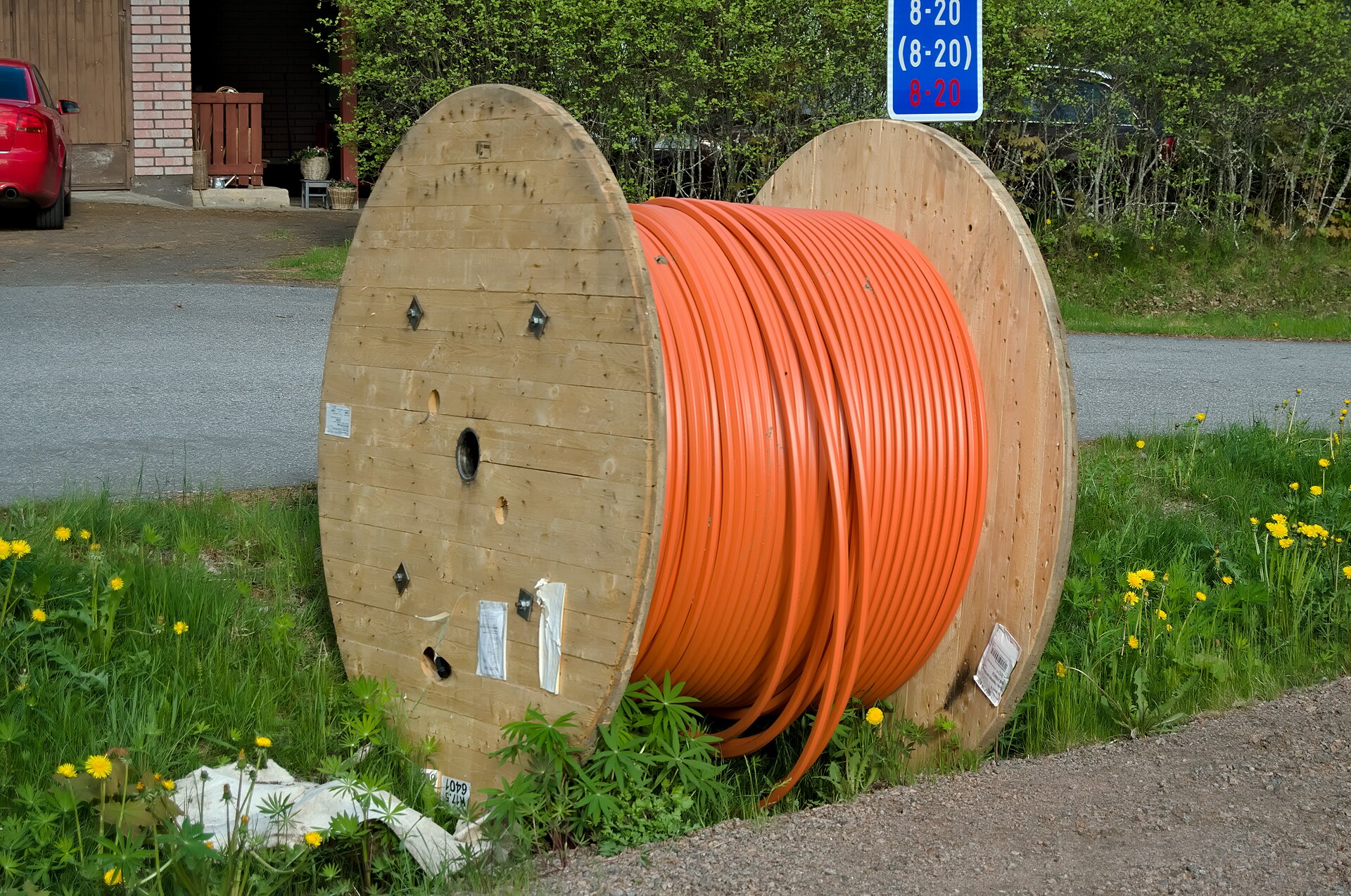

Reference photo of this product type — not the exact item shipped.
