Optical Fibre Cable
Figure-8 Self-Supporting Aerial Cable
GYTC8S
Integral steel messenger · no separate lashing · 2–144 fibres
A figure-8 profile with the steel messenger built into the sheath, so the cable goes up in one pass — no separate messenger, no lashing crew. On short and medium pole spans this is usually the cheapest aerial route once labour is counted.
Key features
- Figure-8 design, easy for self-supporting aerial installation, reducing installation costs
- Small size, light weight and soft, easy for installation
- Hydrolysis resistant loose tube
- Tube gel ensures critical protection of fiber
- Corrugated steel tape(CST) enhancing moisture-proof
Applications
Quality & compliance
GYTC8S
Quality highlights
- Tensile strength, long / short term: 600 / 1500 N
- Crush resistance, long / short term: 300 / 1000 N/100 mm
- Bending radius, dynamic / static: 20 D / 10 D
- Strength member: FRP central element
- Transport / storage / operating temperature: -40 °C ~ +70 °C
Specifications
GYTC8S
| Fiber Type | G652D G655 G657 50/125 62.5/125 |
|---|---|
| Steel wire（mm) | 1.0*7 |
| Tensile Strength（N） | Long/Short Term：1000/3500 |
| Crush Resistance（N/100mm） | Long/Short Term：1000/2200 |
| Bending Radius(mm) | Static/Dynamic：10D/20D |
| Temperature(℃) | Storage /Operation：-40℃~70℃ |

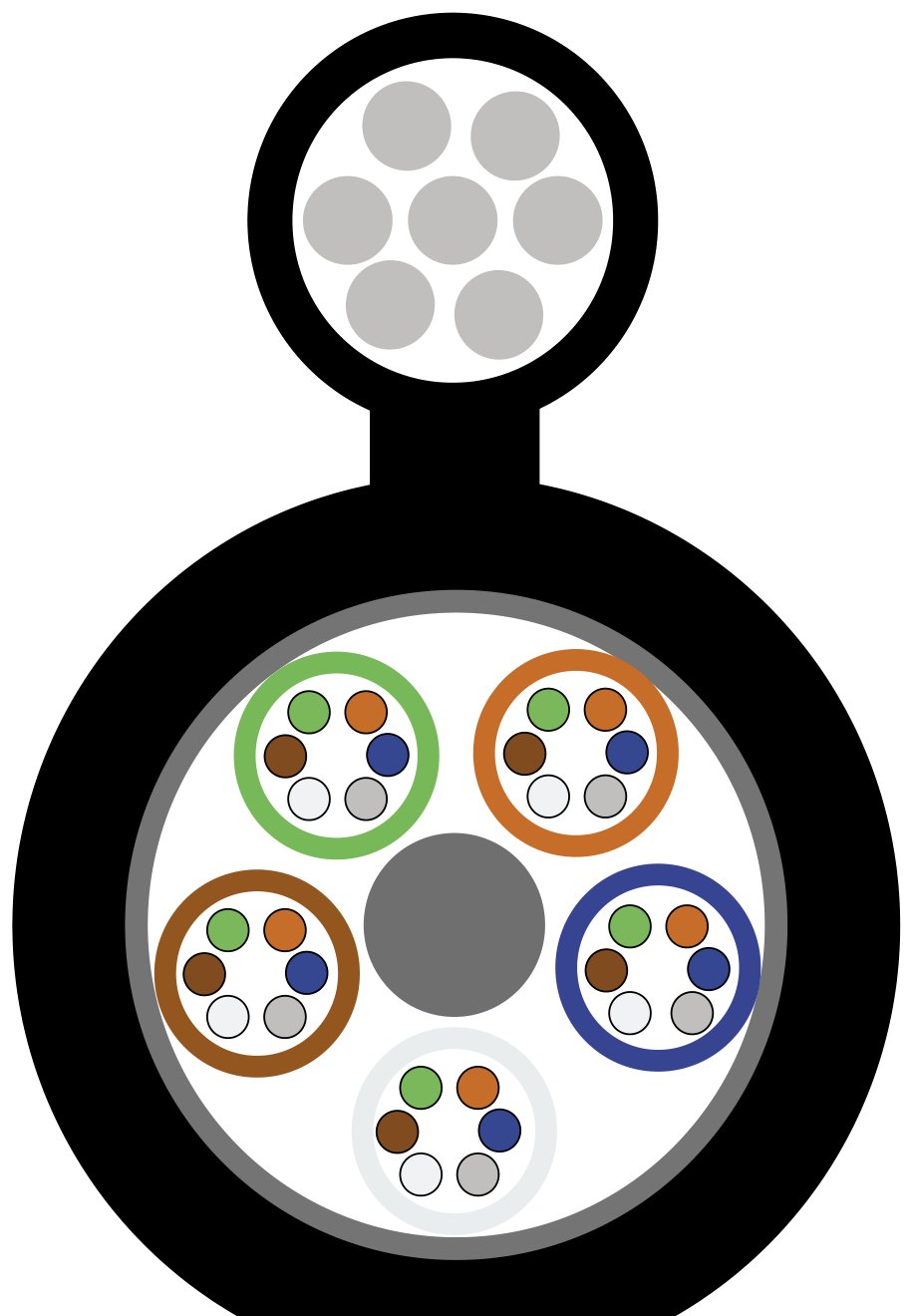

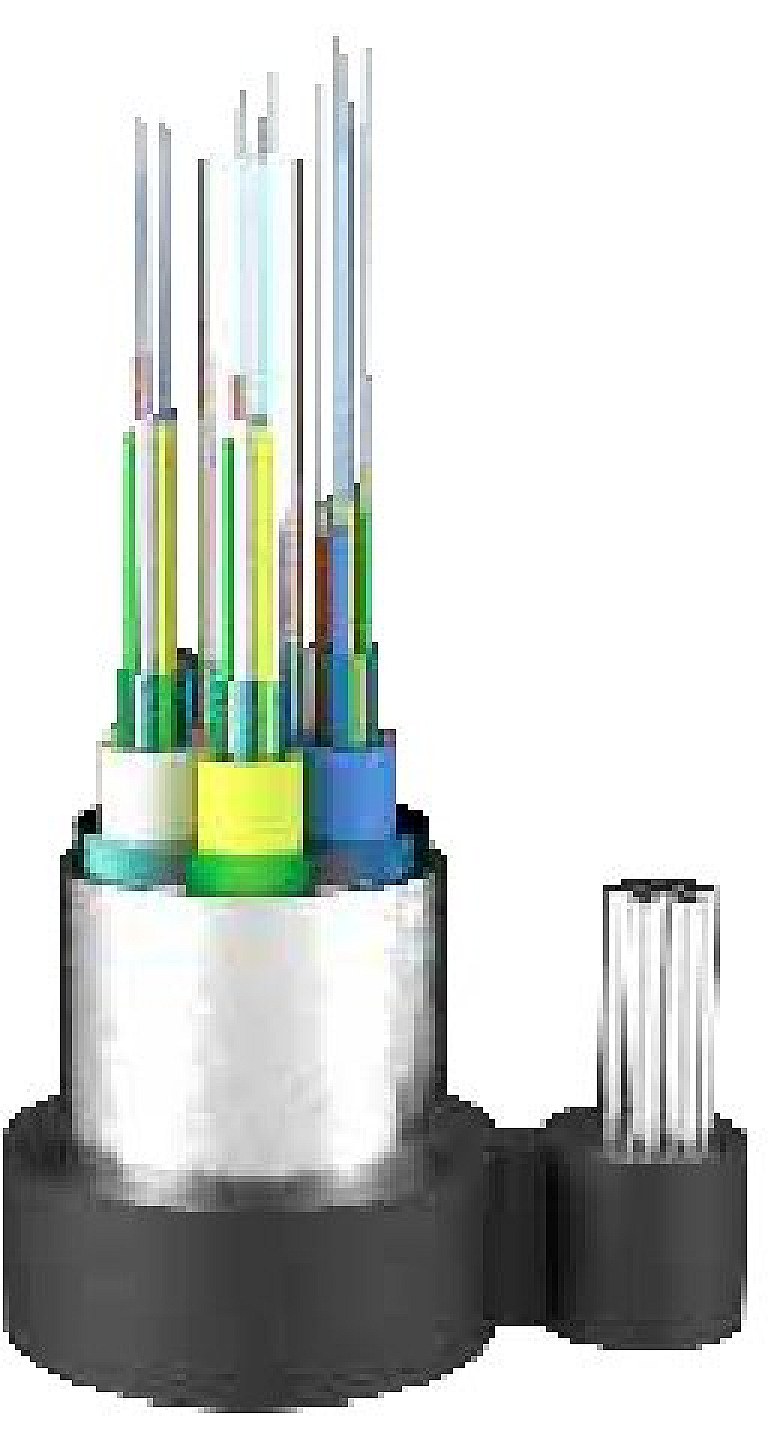

The fibers are positioned in loose tubes that are made of high-modulus plastic and filled with tube gel. The tubes (and fillers) are stranded around a metallic central strength member to form a cable core.The core is filled with water-blocking compound and armored with corrugated steel tape(CST). Stranded steel wires are applied as the messenger. Finally, a figure-8 PE outer jacket is extruded.
| Counts | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 | 146-216 | 218-288 |
|---|---|---|---|---|---|---|---|---|---|
| Max.fiber counts per tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Units(Tubes or Fillers) | 5 | 6 | 5 | 6 | 8 | 10 | 12 | 18 | 24 |
| Cable Diameter（mm） | 9.2*16.2 | 9.6*16.6 | 9.7*16.7 | 10.2*17.2 | 11.5*18.5 | 12.8*19.8 | 14.0*21.0 | 14.3*21.3 | 16.2*23.2 |
| Weight（Kg/km） | 145 | 160 | 160 | 177 | 203 | 230 | 260 | 263 | 312 |
| Fiber Type | G652D G655 G657 50/125 62.5/125 | ||||||||
| Steel wire（mm) | 1.0*7 | ||||||||
| Tensile Strength（N） | Long/Short Term：1000/3500 | ||||||||
| Crush Resistance（N/100mm） | Long/Short Term：1000/2200 | ||||||||
| Bending Radius(mm) | Static/Dynamic：10D/20D | ||||||||
| Temperature(℃) | Storage /Operation：-40℃~70℃ | ||||||||
Illustration

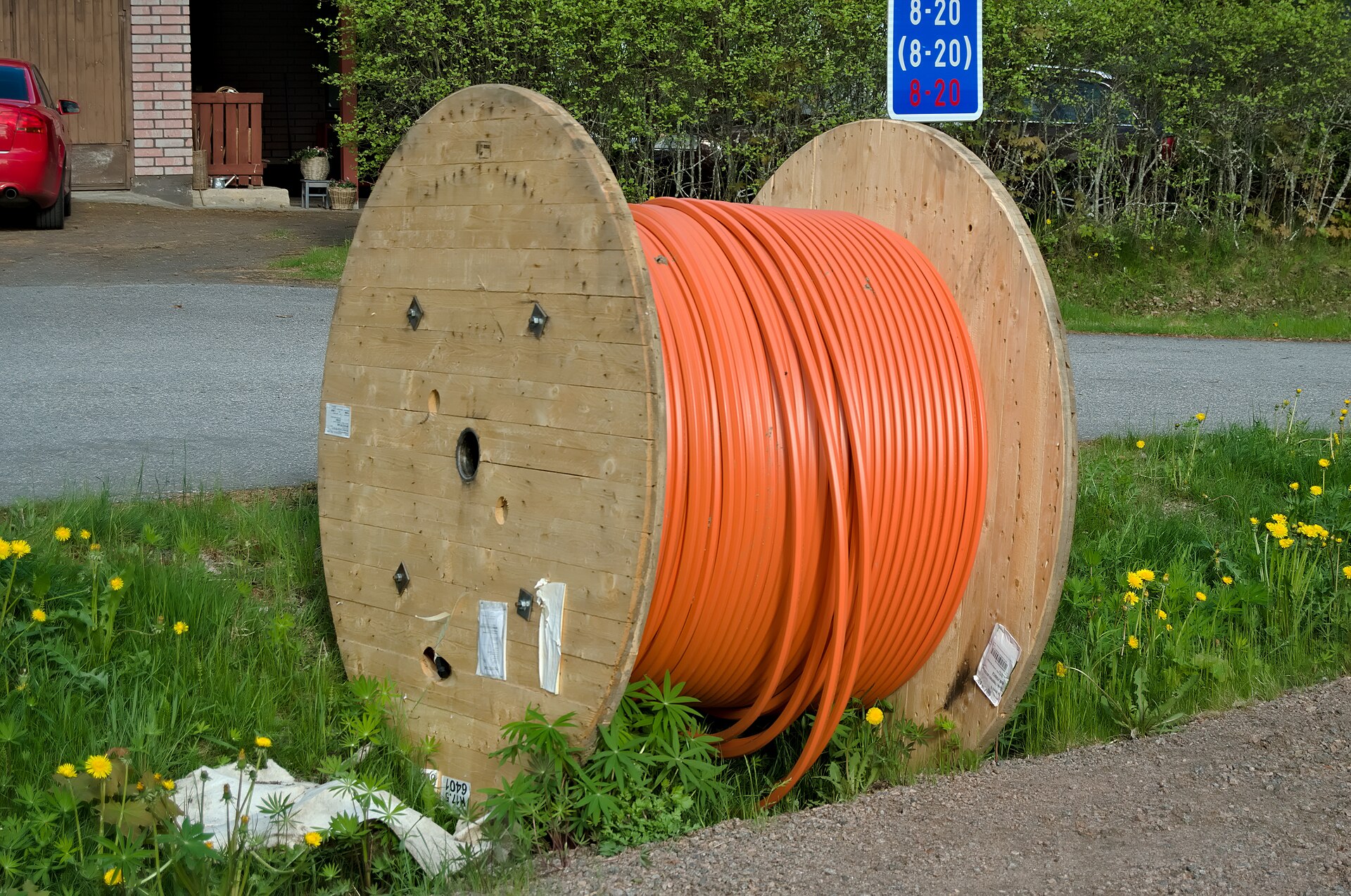

Reference photo of this product type — not the exact item shipped.
