Optical Fibre Cable
GYXTW Central Tube CST Armor Optical Fiber Cable
GYXTW
GYXTW · 2–24 fibres · parallel steel wires · corrugated steel tape

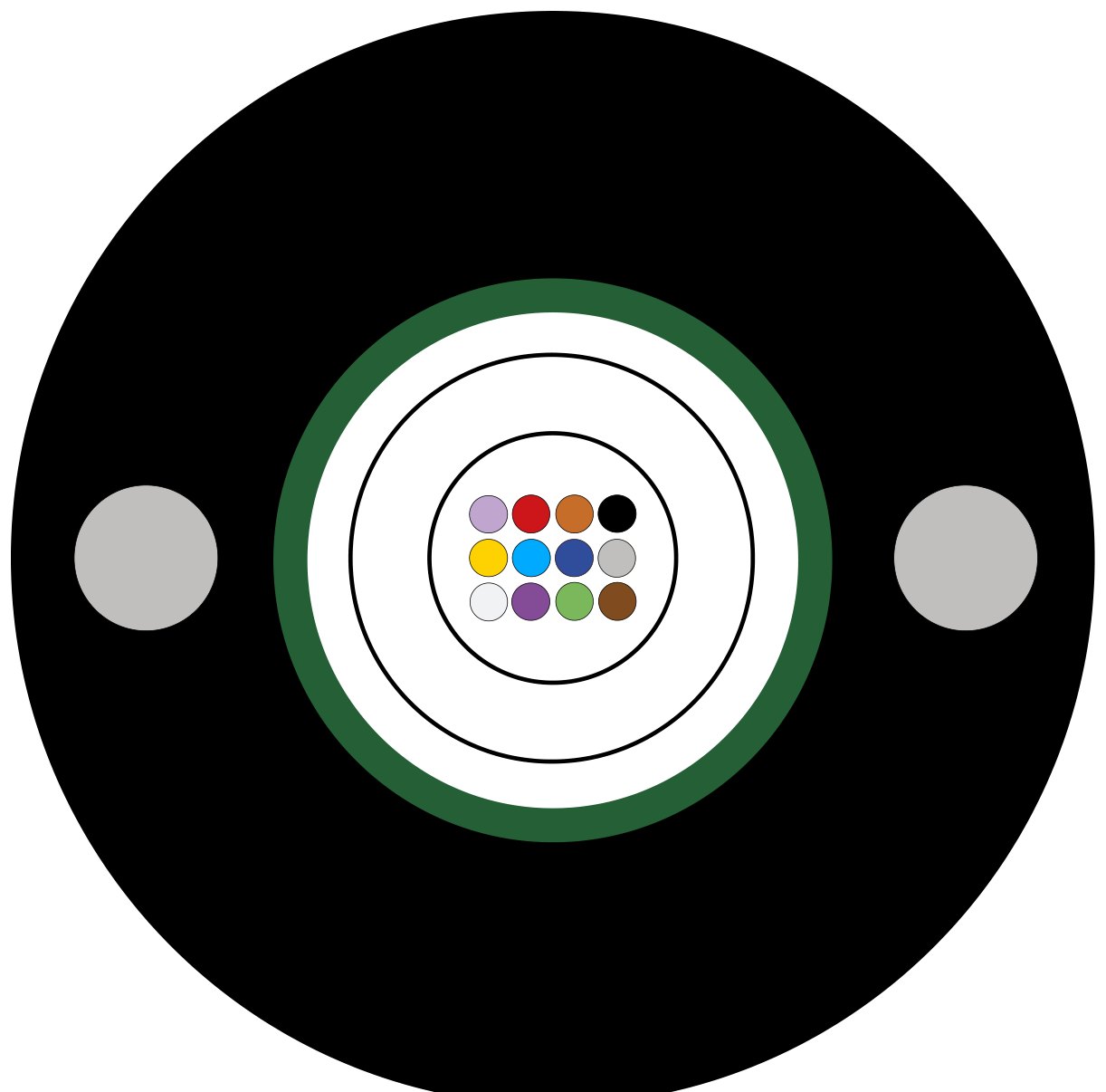

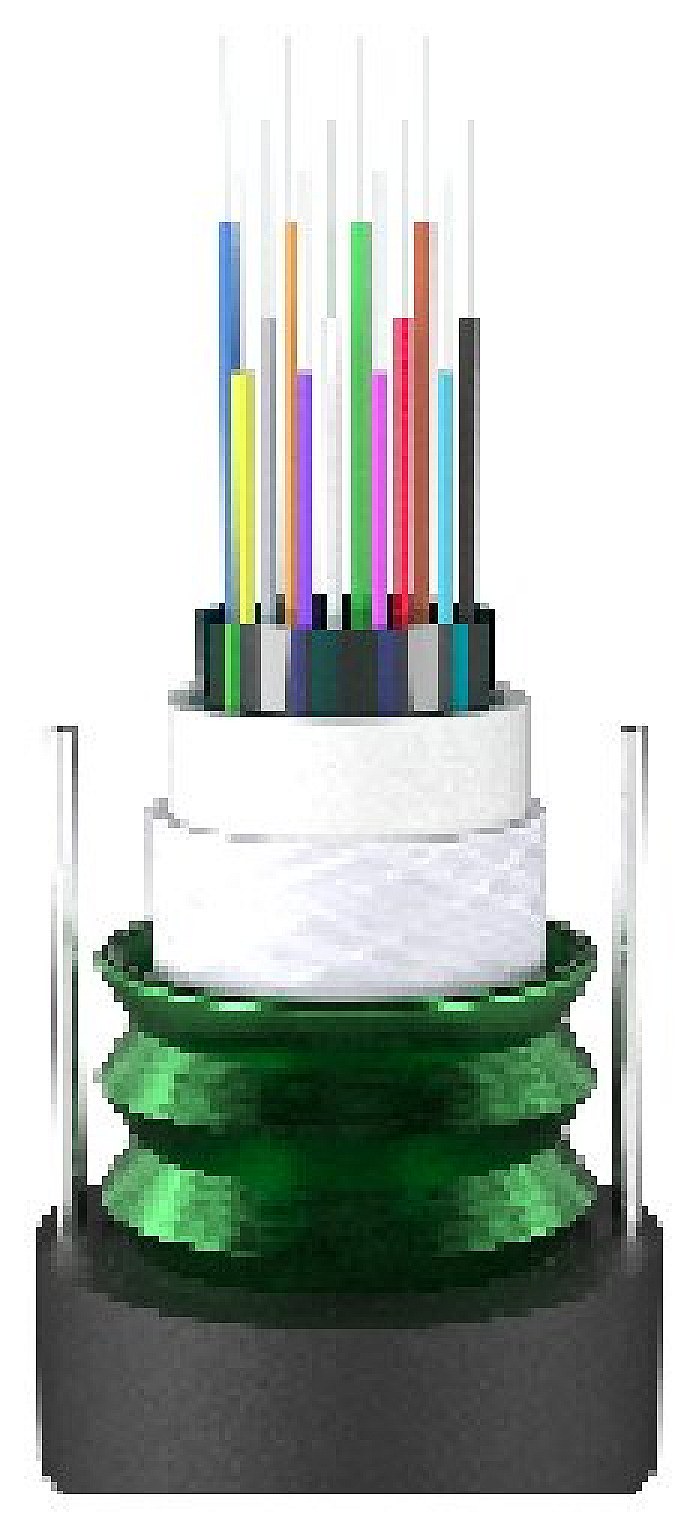

Fibers are housed in a loose tube that is made of high-modulus plastic and filled with tube filling compound. The water blocking tape is applied around the central tube. Then the tubes are armored with a corrugated steel tape (CST) logitudinally. Two parallel steel wires are embeded in the outer PE jacket.
Key features
- Good mechanical and thermal performance
- Hydrolysis resistant loose tube
- Tube filling gel ensures critical protection of fiber
- Two parallel steel wires ensure tensile strength
- Small diameter, light weight and convinient installation
- Corrugated steel tape(CST) enhancing moisture-proof
- Long delivery length
Applications
Quality & compliance
GYXTW
Quality highlights
- Tensile strength, long / short term: 600 / 1500 N
- Crush resistance, long / short term: 300 / 1000 N/100 mm
- Bending radius, dynamic / static: 20 D / 10 D
- Strength member: 2 parallel steel wires
- Transport / storage / operating temperature: -40 °C ~ +70 °C
Specifications
GYXTW
| Counts | 2-12 |
|---|---|
| Max.fiber counts per tube | 12 |
| Cable Diameter（mm） | 7.9 |
| Weight（Kg/km） | 68 |
| Fiber Type | G652D G655 G657 50/125 62.5/125 |
| Tensile Strength（N） | Long/Short Term：600/1500 |
| Crush Resistance（N/100mm） | Long/Short Term：300/1000 |
| Bending Radius(mm) | Static/Dynamic：10D/20D |
| Temperature(℃) | Storage /Operation：-40℃~70℃ |
| Counts | 2-12 | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Max.fiber counts per tube | 12 | ||||||||
| Cable Diameter（mm） | 7.9 | ||||||||
| Weight（Kg/km） | 68 | ||||||||
| Fiber Type | G652D G655 G657 50/125 62.5/125 | ||||||||
| Tensile Strength（N） | Long/Short Term：600/1500 | ||||||||
| Crush Resistance（N/100mm） | Long/Short Term：300/1000 | ||||||||
| Bending Radius(mm) | Static/Dynamic：10D/20D | ||||||||
| Temperature(℃) | Storage /Operation：-40℃~70℃ | ||||||||
Illustration

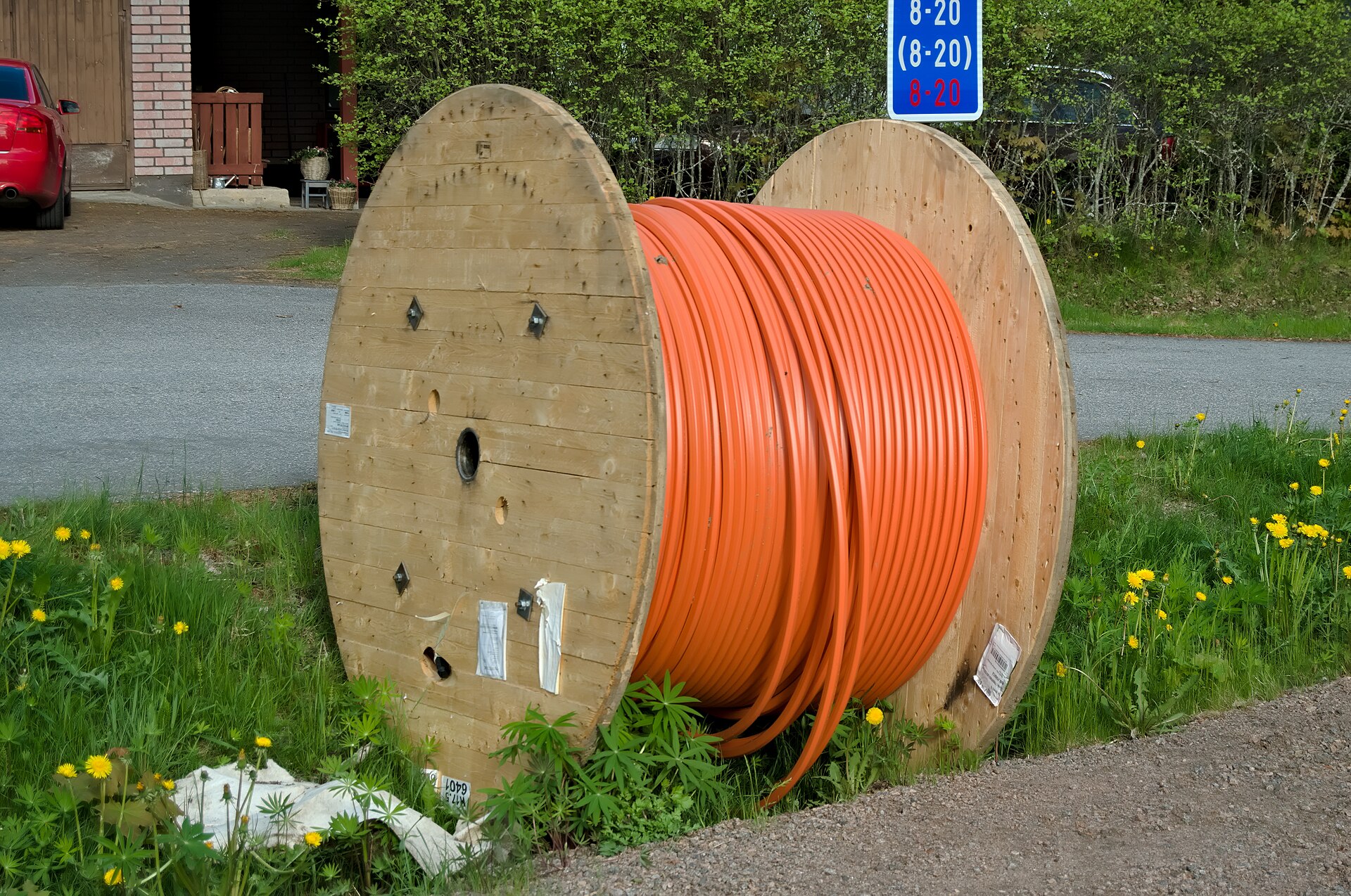

Reference photo of this product type — not the exact item shipped.
