MGTSV Flame-retardant Stranded Loose Tube CST Armor PVC +PE double Sheath Optical Fiber Cable for Mine
MGTSV
CST armour · PVC sheath · for underground mine communications
The fibers are positioned in a loose tube made of high modulus plastic and filled with gel. Tubes (and fillers) are stranded around the metallic strength member to form the cable core filled with water blocking compound. Then the steel tape (CST) is longitudinally armored over the cable core and a PE inner jacket is extruded. Finally the cable is completed with a blue flame-retardant PVC jacket.
Key features
- Good mechanical and thermal performance
- Steel wire as the central strength member
- Hydrolysis resistant loose tube
- Tube filling gel ensures critical protection of fiber
- Specially designed stranded structure eliminating contraction of tubes
- Flame-retardant PVC jacket ensuring good fire resistance
- Water-blocking measures :
- – Loose tube gel-filled
- – 100% cable filling compound
- – Corrugated steel tape(CST) enhancing moisture-proof
Applications
Quality & compliance
MGTSV
Quality highlights
- Tensile strength (short / long term): 1000 N / 300 N
- Crush resistance (short / long term): 1000 N / 300 N per 100 mm
- Operating temperature: -20 °C ~ +60 °C
- Flame retardancy: IEC 60332-1
Specifications
MGTSV
| Fiber Type | G652D G655 G657 50/125 62.5/125 |
|---|---|
| Tensile Strength（N） | Long/Short Term：600/1500 |
| Crush Resistance（N/100mm） | Long/Short Term：300/1000 |
| Bending Radius(mm) | Static/Dynamic：10D/20D |
| Temperature(℃) | Storage /Operation：-40℃~70℃ |
| Counts | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 | 146-216 | 218-288 |
|---|---|---|---|---|---|---|---|---|---|
| Max.fiber counts per tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Units(Tubes or Fillers) | 5 | 6 | 5 | 6 | 8 | 10 | 12 | 18 | 24 |
| Cable Diameter（mm） | 11.6 | 12.0 | 12.1 | 12.6 | 13.9 | 15.2 | 16.4 | 16.7 | 18.6 |
| Weight（Kg/km） | 162 | 180 | 177 | 201 | 236 | 273 | 310 | 320 | 385 |
| Fiber Type | G652D G655 G657 50/125 62.5/125 | ||||||||
| Tensile Strength（N） | Long/Short Term：600/1500 | ||||||||
| Crush Resistance（N/100mm） | Long/Short Term：300/1000 | ||||||||
| Bending Radius(mm) | Static/Dynamic：10D/20D | ||||||||
| Temperature(℃) | Storage /Operation：-40℃~70℃ | ||||||||
Illustration

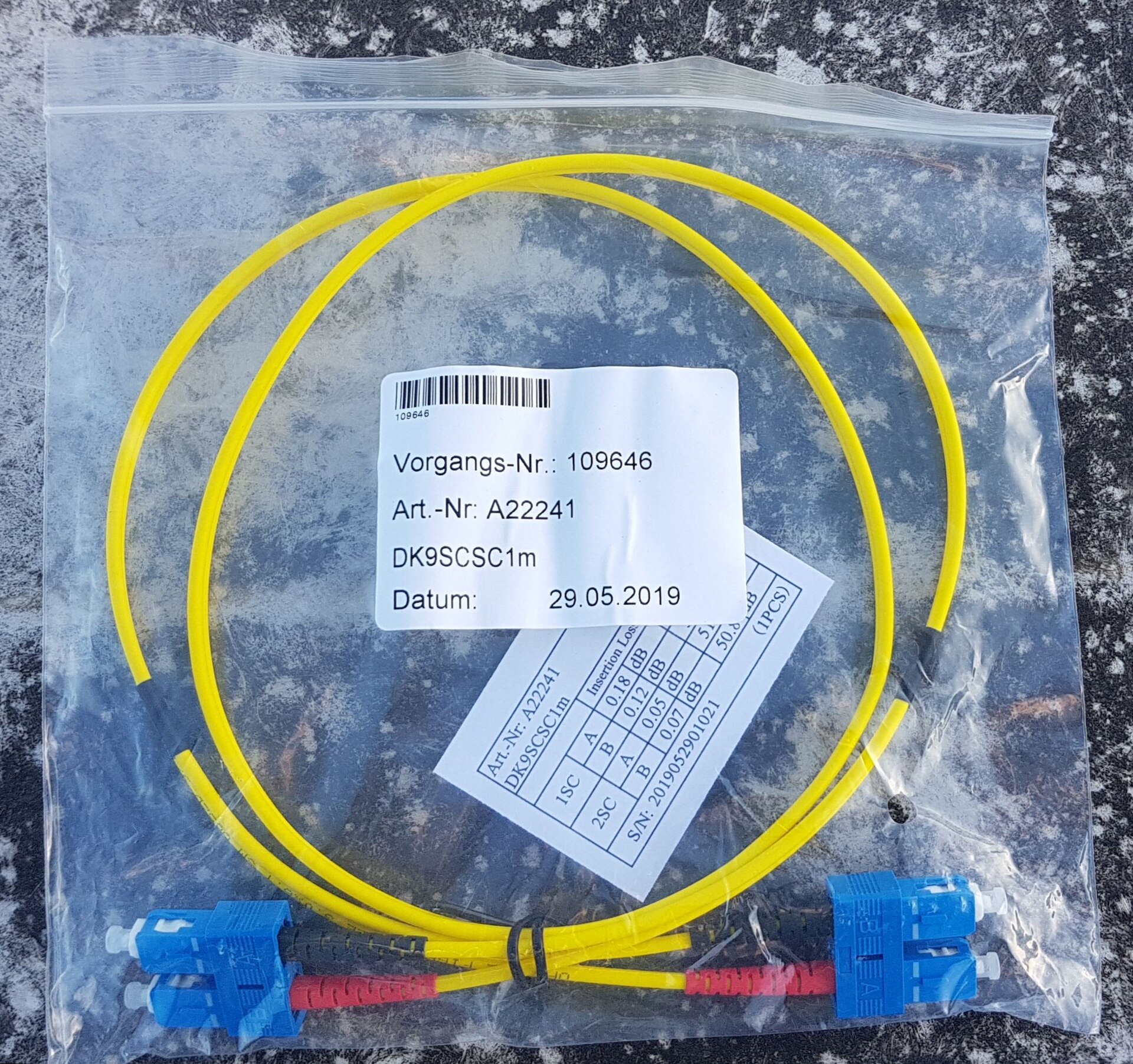

Reference photo of this product type — not the exact item shipped.
