Cable Accessories & Pole Hardware
Tension Clamps for FTTH Drop Cable
ODWAC / ACC / S-Type / C350
Flat 2×5 / 2×6 mm and round 2–7 mm · 0.9–2 kN · stainless or UV nylon
The clamp that holds the last span into the subscriber's home. Eleven variants for flat and round drops: stainless-steel shells for the flat 2×5 and 2×6 profiles, UV-resistant nylon bodies with a locking bail for round drop wires. Pick by cable profile and outlet — one clamp per end, no tools.
Key features
- Stainless shell (ODWAC) or UV-resistant nylon body (ACC, S-Type, C350)
- Bail or loop hooks onto pole brackets and wall hooks
- Flat 2×5 / 2×6 mm, round 2–7 mm, mixed-profile 22S variant
- Rated 0.9–2 kN — matched to drop-cable tensile limits
Applications
Specifications
ODWAC / ACC / S-Type / C350

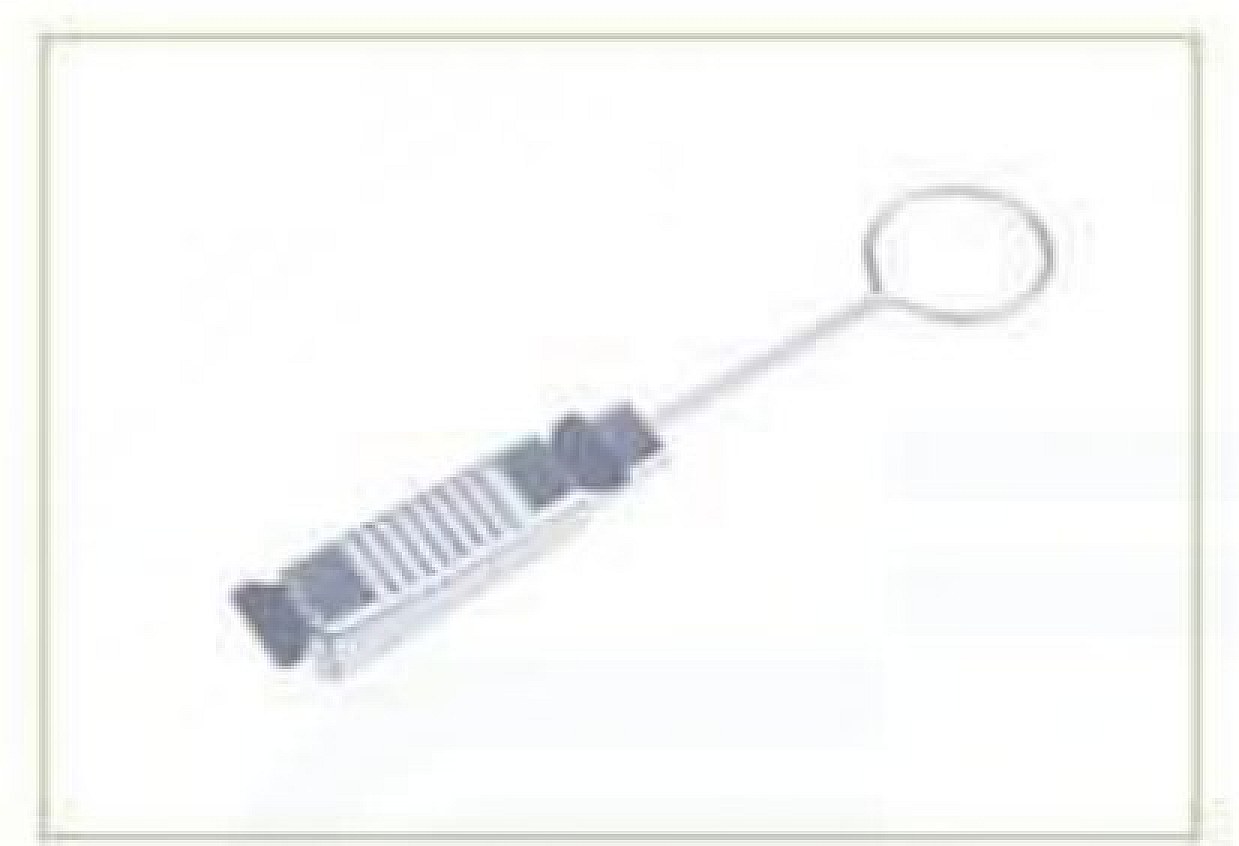

| ODWAC-15 | Flat 2 × 6 mm · 1 kN |
|---|---|
| ODWAC-22 | Flat 2 × 6 mm · 1 kN |
| ODWAC-26 | Flat 2 × 6 mm · 1 kN |

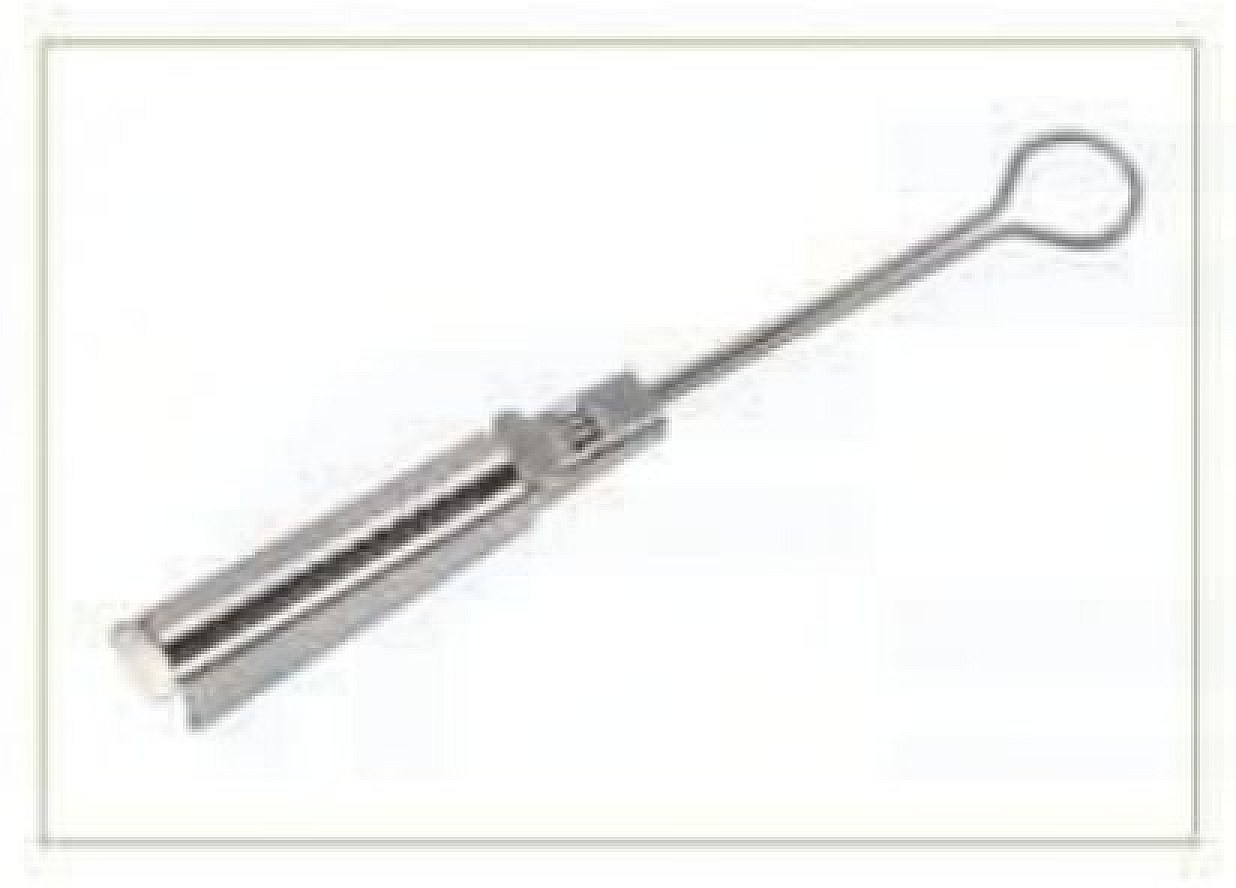

| ODWAC-21T | Round 3–6 mm · 1 kN |

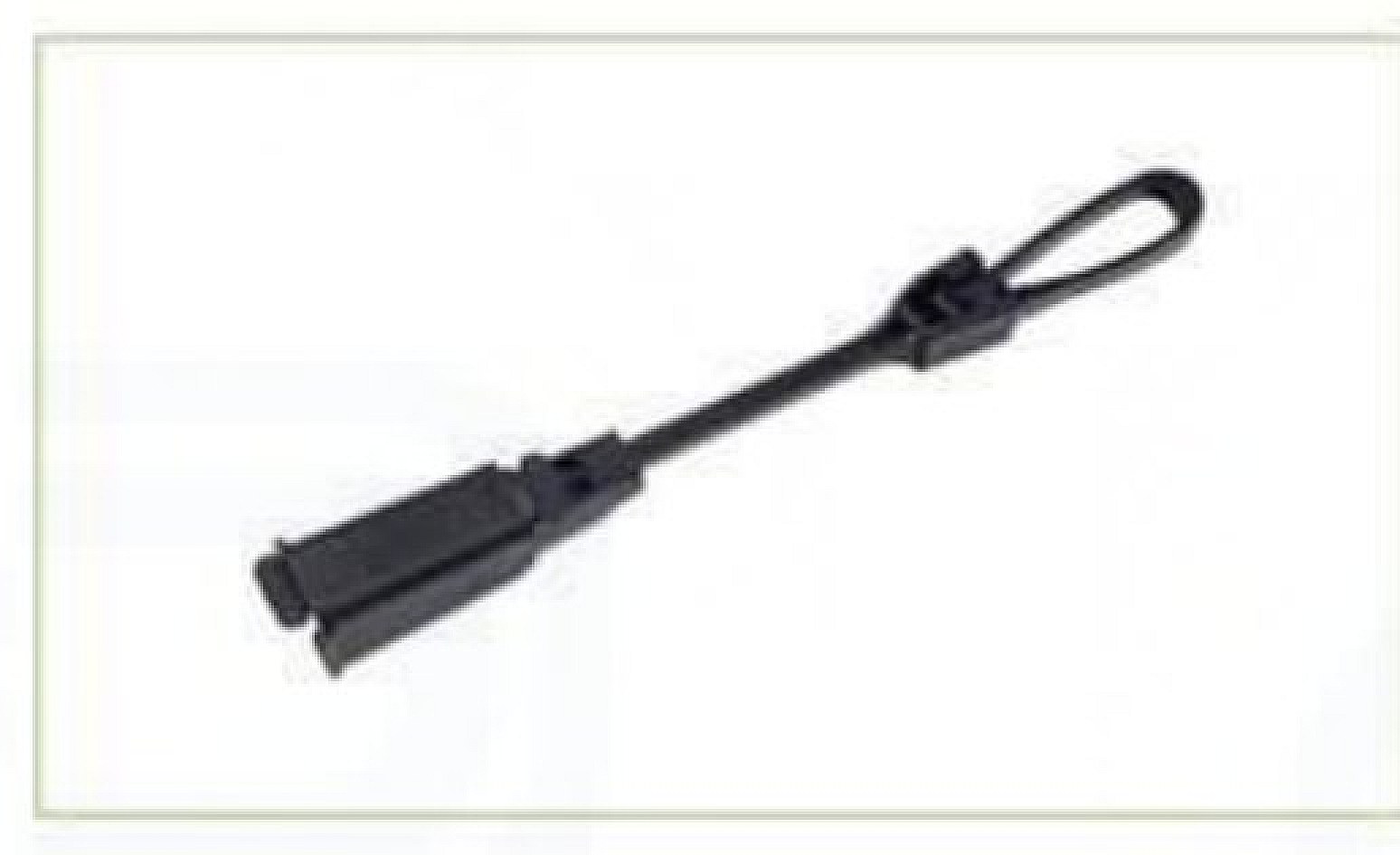

| ODWAC-22S | Flat (2–3) × (4–8) mm · 1 kN |

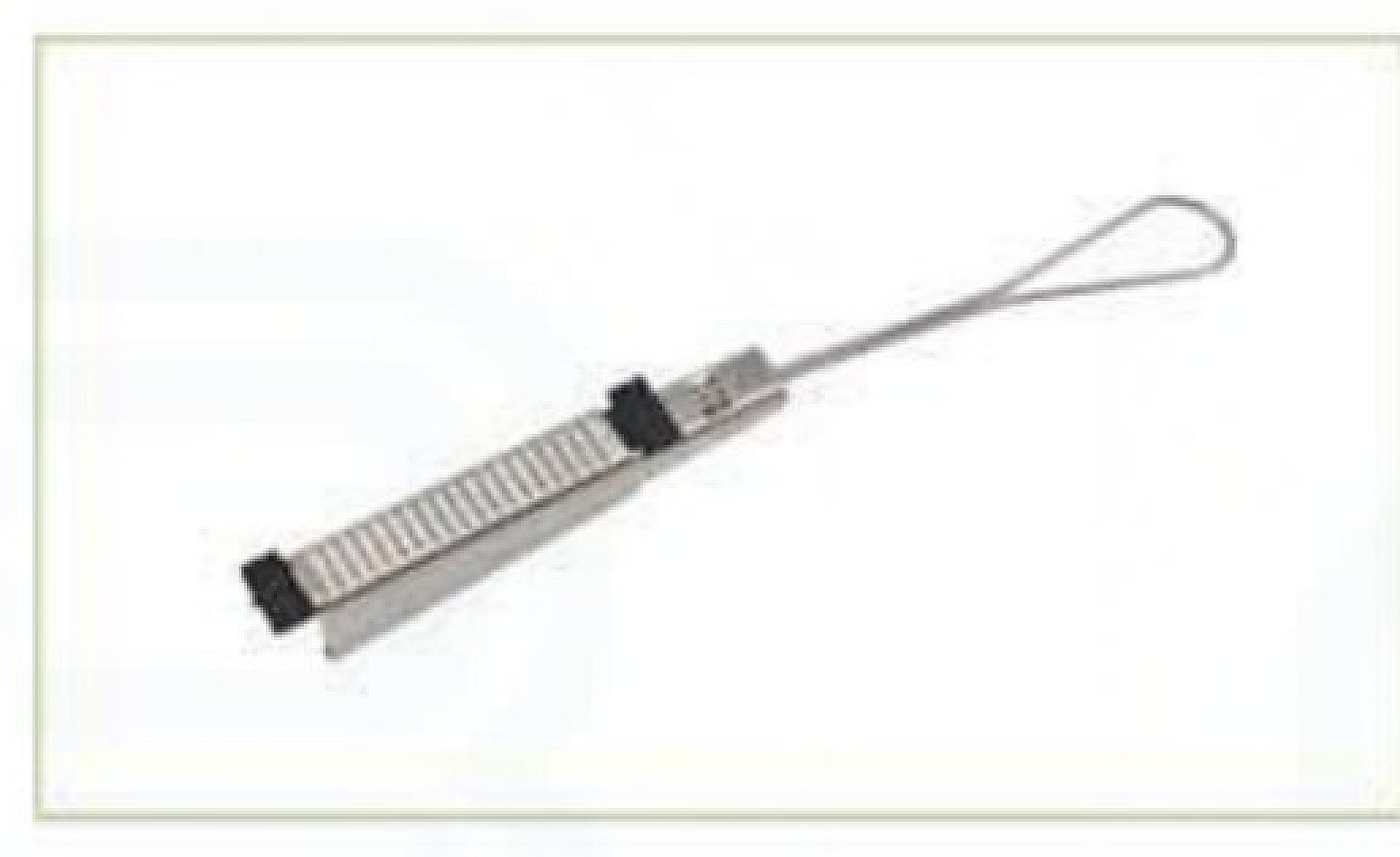

| ODWAC-24 | Flat 2 × 5 mm · 1 kN |
| ODWAC-24S | Flat 2 × 5 mm · 1 kN |

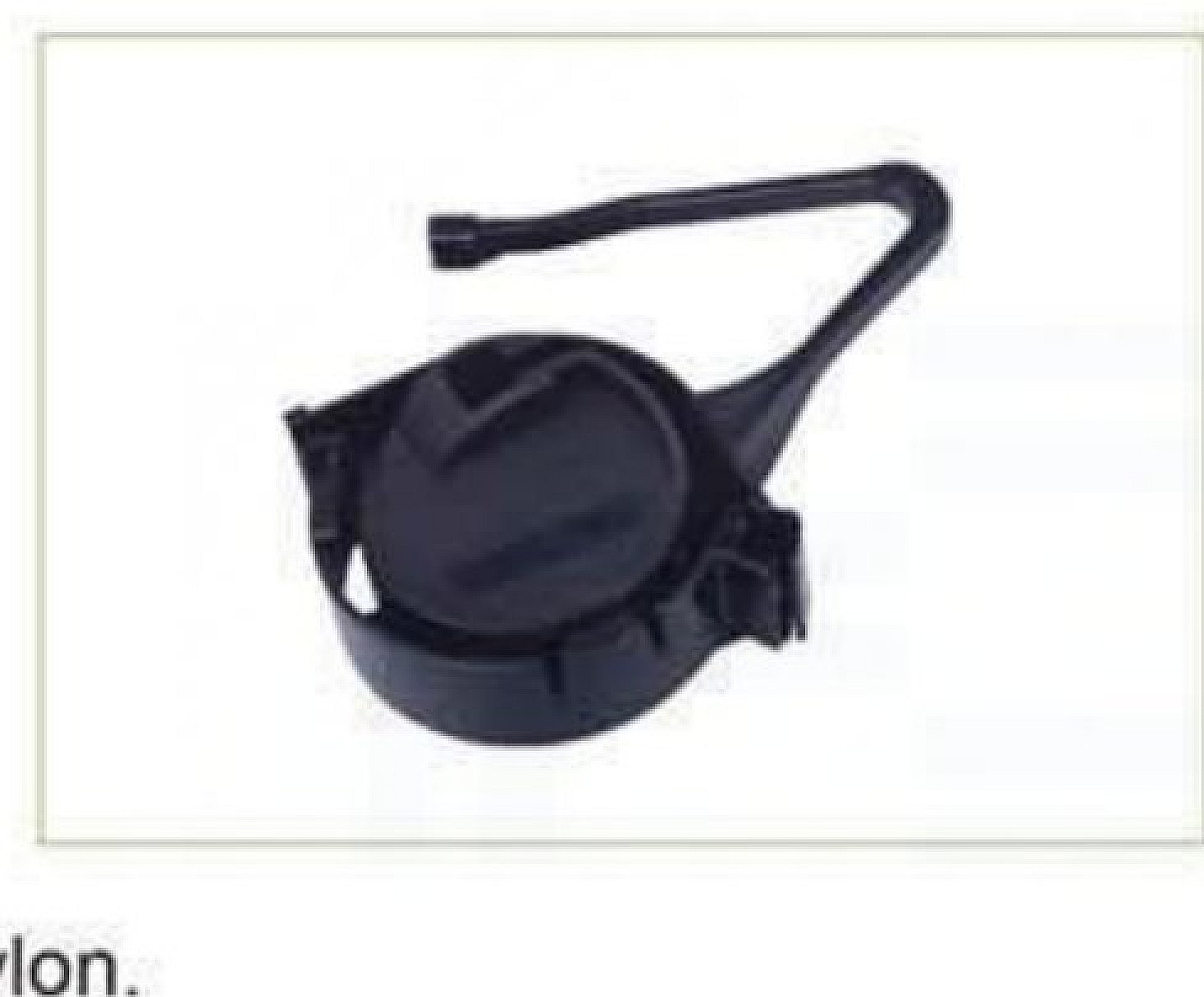

| ACC | Round drop wire Ø 2–6 mm · 2 kN · mandrel body with locking bail, UV-resistant nylon |
|---|---|

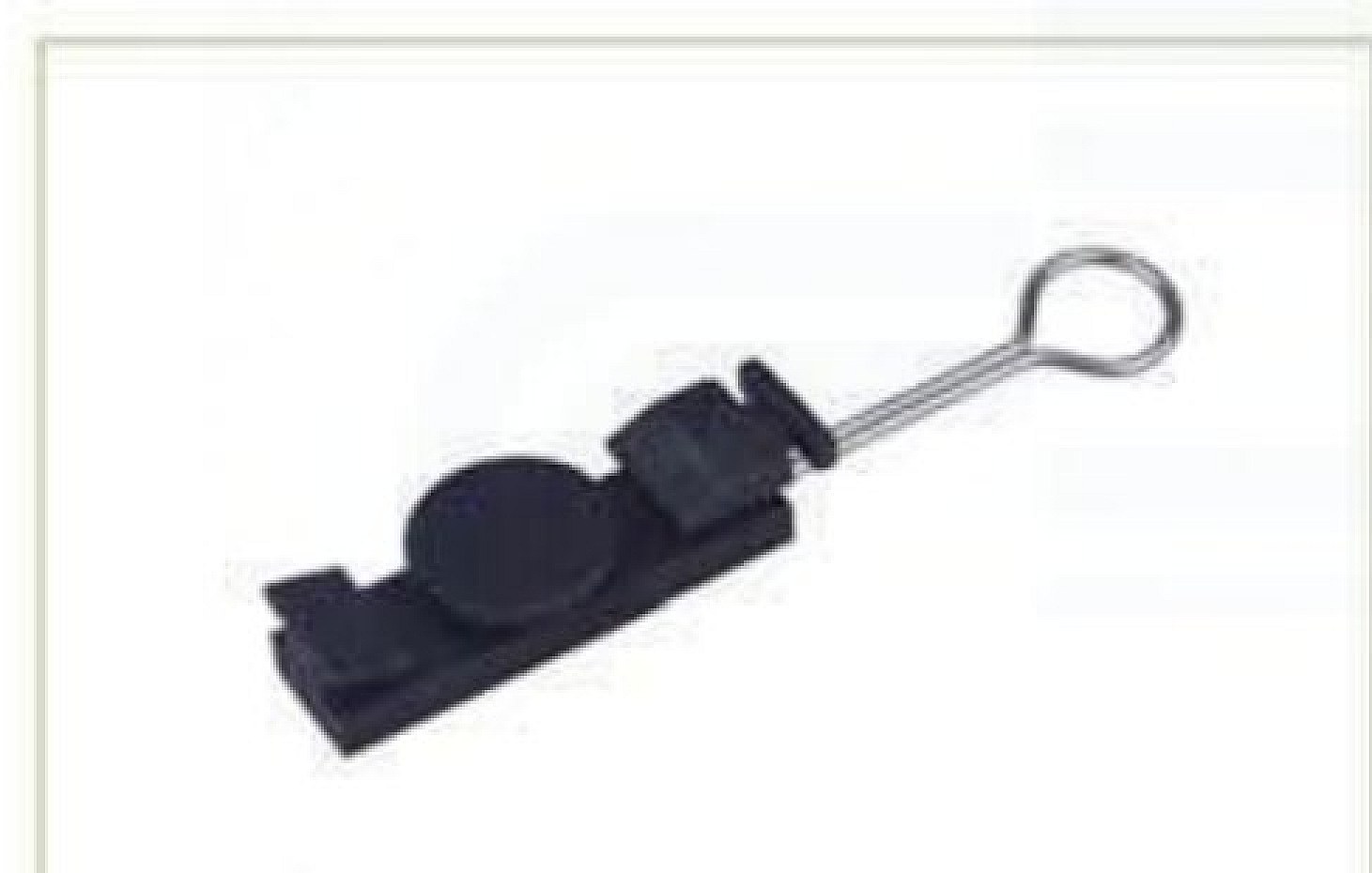

| S-Type | Flat 2 × 5 mm · 1 kN |

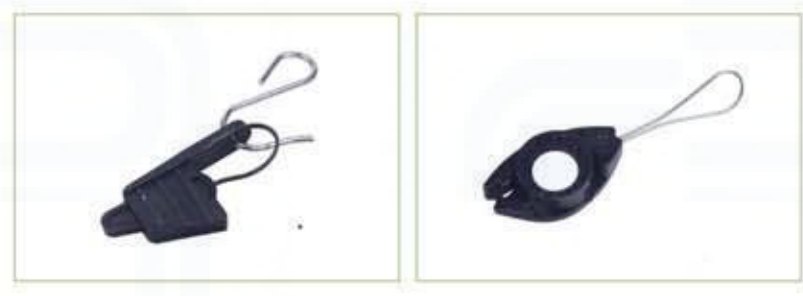

| C350 | Flat 3.0×2 / 3.1×3.3 / 5×2 mm · 0.9 kN |
| C360 | Round 3–7 mm · 0.9 kN |
