Cable Accessories & Pole Hardware
Anchor Clamps for Round ADSS / Drop Cables

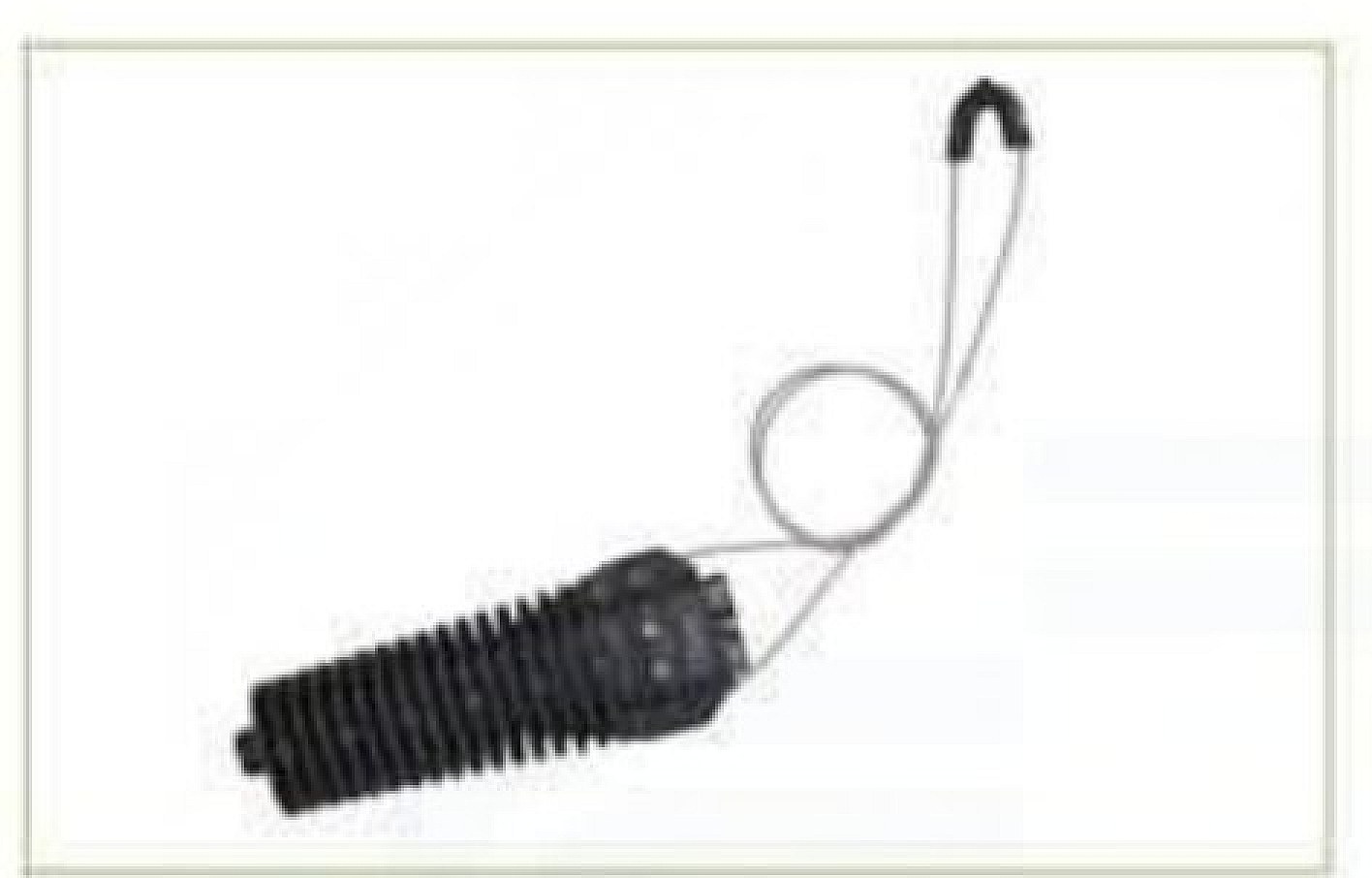

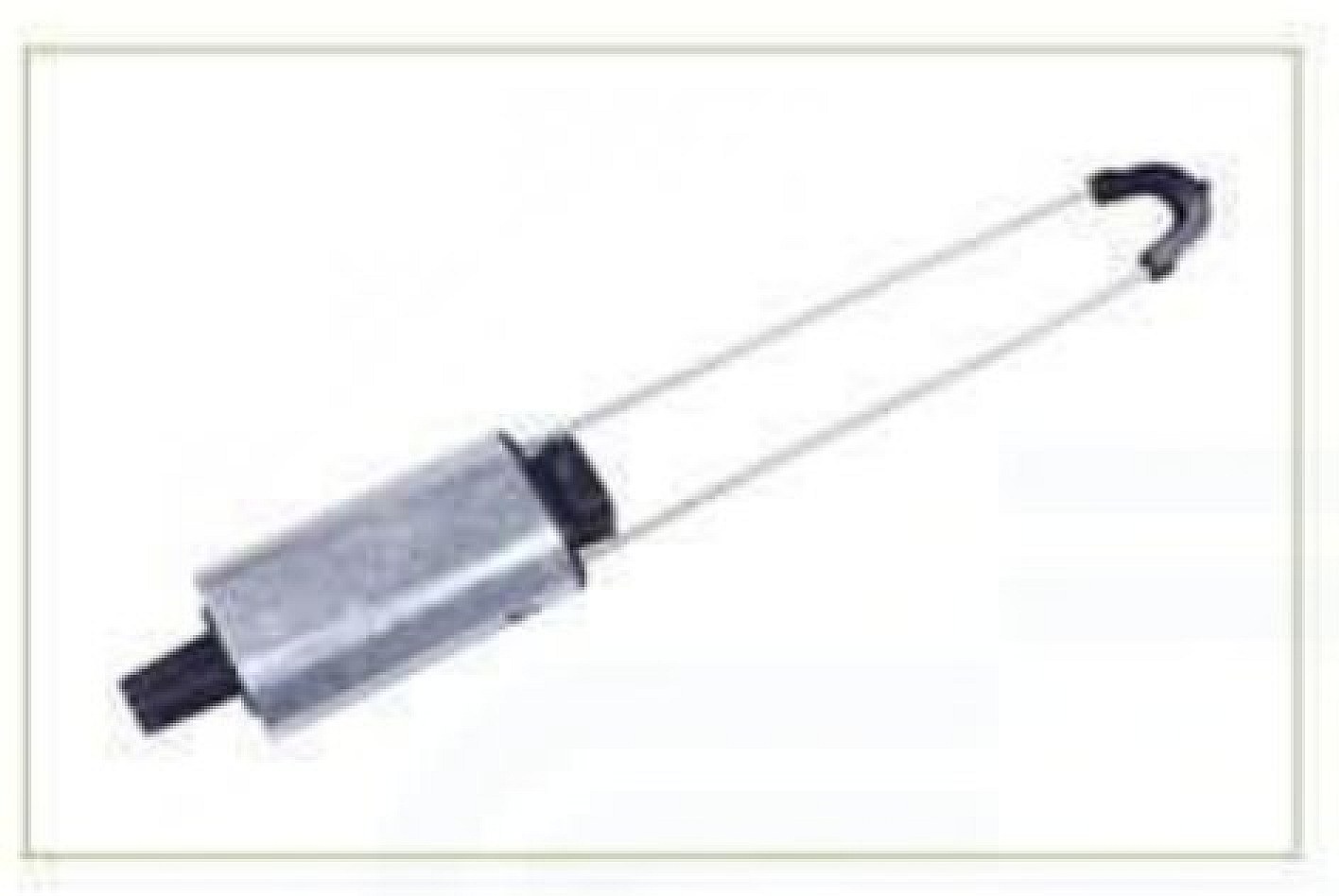

PA300 / PA500 / PA600 / PAL90
Ø 4–13 mm · 3.5–12 kN · wedge grip · no tools · spans to 100 m
Dead-end clamps for round fibre cables on access networks with spans up to 100 m. A pair of wedges inside the conical body grips the cable automatically as load comes on — no tools, and the cable is anchored in seconds. Hung from the pole bracket by a flexible galvanised bail.
Key features
- Self-tightening wedge grip: the more the cable pulls, the harder it holds
- No special tools; installation time drastically reduced
- UV-stabilised polymer body, galvanised steel bail
- Five sizes covering 4 to 13 mm cable diameters
Applications
Specifications
PA300 / PA500 / PA600 / PAL90
| PA300 | Cable Ø 4–8 mm · break load 3.5 kN |
|---|---|
| PA500 | Cable Ø 4.5–9 mm · break load 6 kN |
| PA600 | Cable Ø 8.5–11 mm · break load 8 kN |
| PAL90-1500A | Cable Ø 8–11 mm · break load 12 kN |
| PAL90-1500 | Cable Ø 10–13 mm · break load 12 kN |
| Cable type | Round ADSS and drop cables |
|---|---|
| Maximum span | 100 m |
| Installation | Attach bail to pole bracket → place body over cable, wedges back → push wedges by hand → tension the cable |
| Double dead-end | Leave extra cable length between the two clamps |
