Cable Accessories & Pole Hardware
Pole Brackets
UPB / YK01
UPB universal bracket 10 kN · YK01 drop bracket 2.5 kN · bolts or bands
The anchor points that everything else hangs from. UPB takes up to three parallel cables, five drop wires and a stay on any pole type, and doubles as a plate for 5/14 and 5/15 cross-arms. YK01 is the compact bracket for single FTTH drops. Fix with 14/16 mm bolts or two 20 mm bands.
Key features
- UPB: 1–3 parallel cables, 5 drop wires and stay system on one bracket
- UPB: serves as mounting plate for cross-arms 5/14 and 5/15
- YK01: hot-dip galvanised bracket for single drop clamps
- Installed with 14 / 16 mm bolts or two 20 mm stainless bands
Applications
Specifications
UPB / YK01
| UPB | Universal pole bracket · break load 10 kN · 1–3 parallel cables, 5 drop wires, stay system |
|---|---|
| YK01 | Optical fibre drop bracket · break load 2.5 kN |
| Bolts | 14 / 16 mm |
|---|---|
| Bands | 2 × 20 mm stainless-steel band strap |
| Cross-arms | UPB serves as plate for 5/14 and 5/15 |

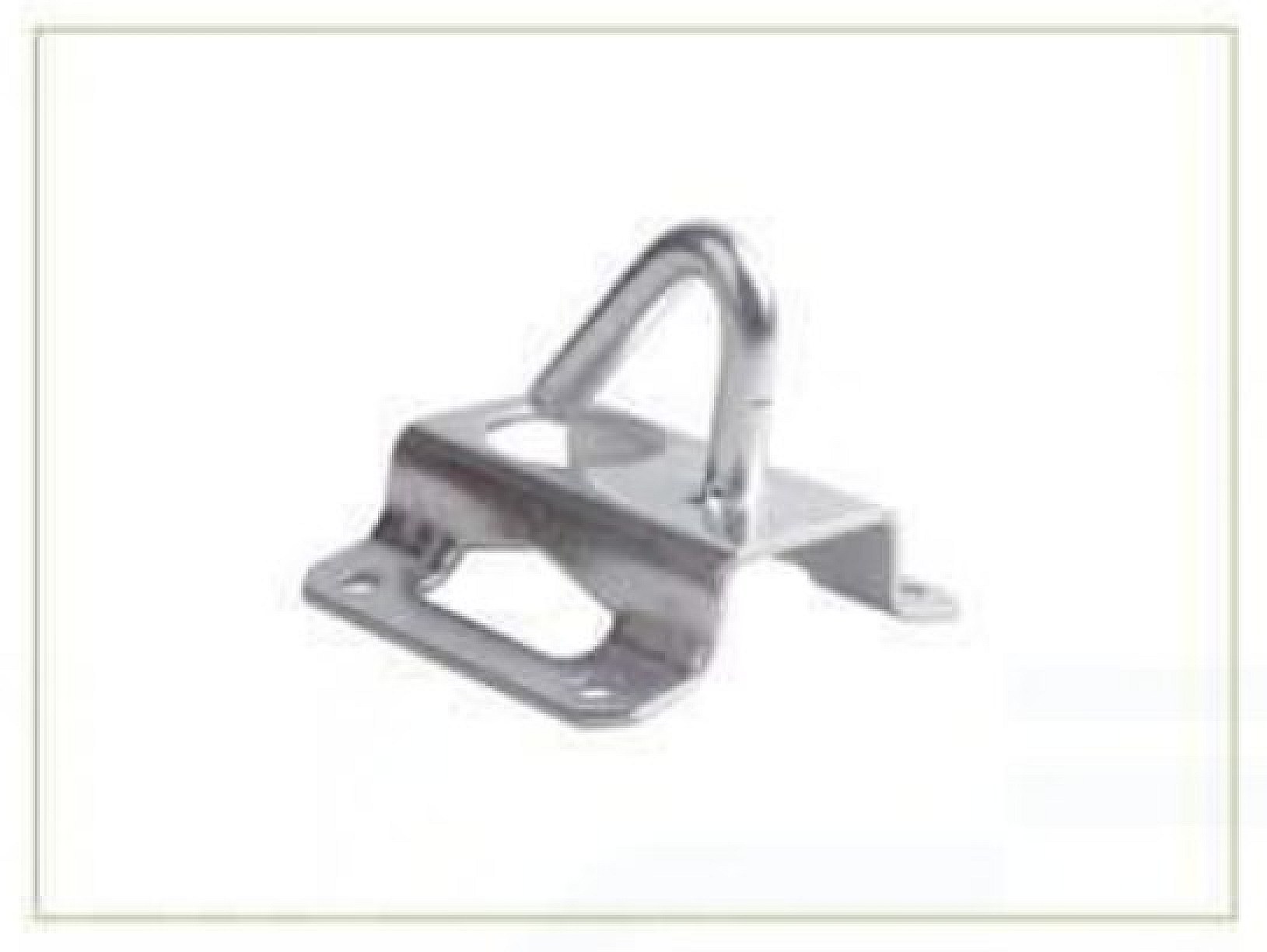

Illustration
Reference photo of this product type — not the exact item shipped.
