FTTA & Quick ODN
Field-Assembly Hardened Connectors
OptiTap®-compatible / Mini SC / CR-FCNT-D1
Terminate a drop on site in minutes · OptiTap®- and Mini SC-compatible · CR-FCNT-D1

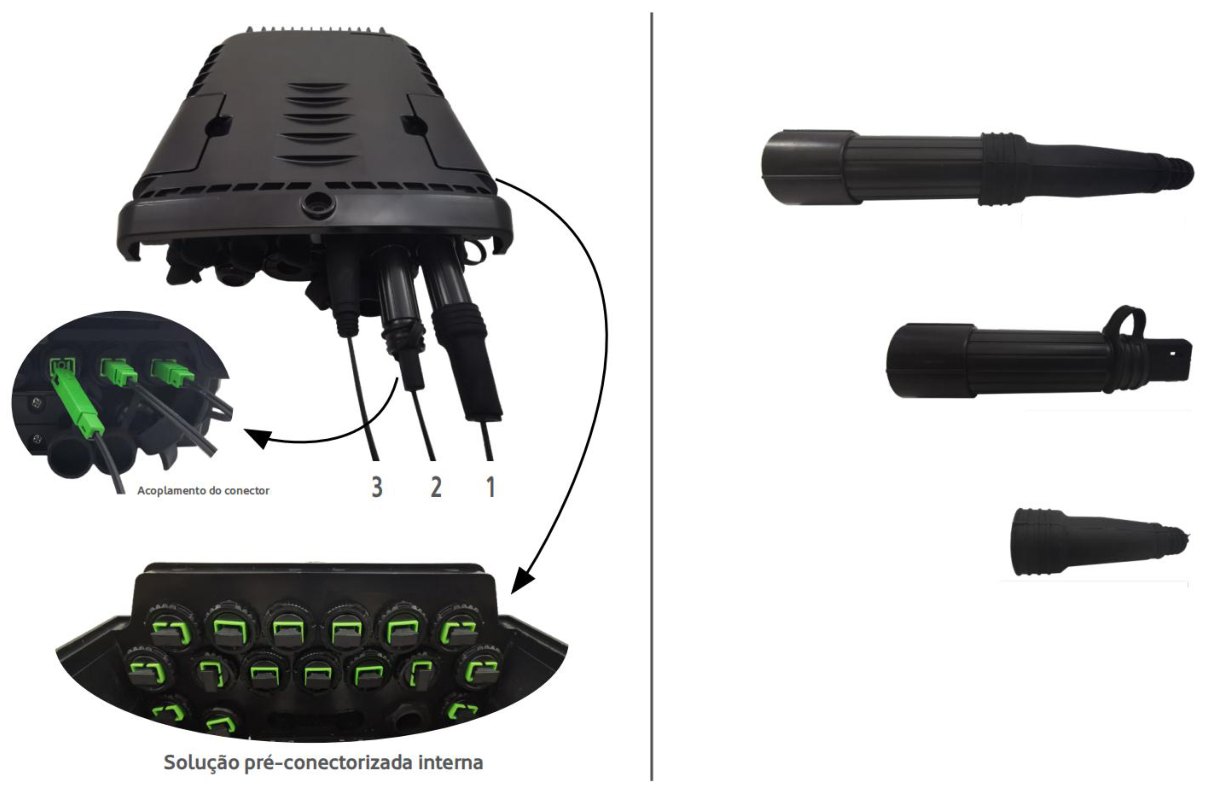

When the drop length is not known in advance, the connector goes on in the field: strip, cleave, insert, lock. These hardened field-installable connectors mate with the same terminal boxes as the factory assemblies, so one box type serves both pre-terminated and cut-to-length drops.
Key features
- OptiTap®-compatible and Huawei Mini SC-compatible hardened plugs
- CR-FCNT-D1 hardened connector kit with dust cap, coupling nut and boot
- Mechanical splice / fast-connector termination — no fusion splicer on the ladder
- IP68 when mated; matching sockets and adapters available
Applications
Quality & compliance
OptiTap®-compatible / Mini SC / CR-FCNT-D1
Standards & certifications
Specifications
OptiTap®-compatible / Mini SC / CR-FCNT-D1
| OptiTap®-compatible field connector | Hardened SC/APC plug, field-installable, IP68 mated |
|---|---|

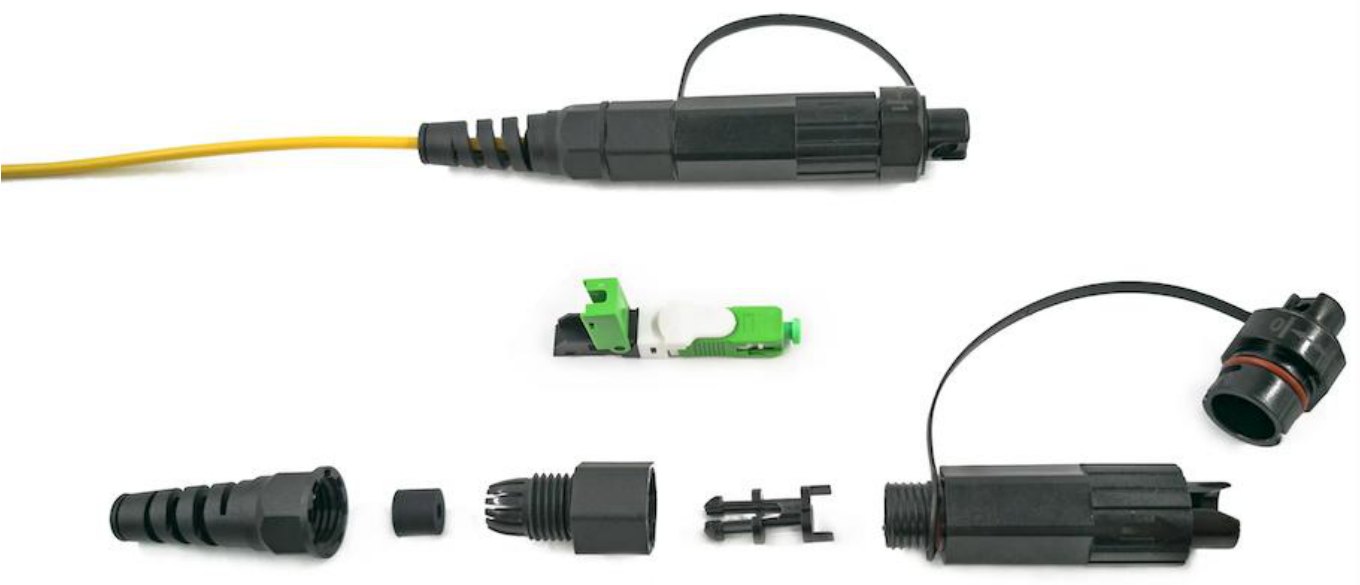

| Huawei Mini SC-compatible field connector | Hardened Mini SC/APC plug, field-installable, IP68 mated |

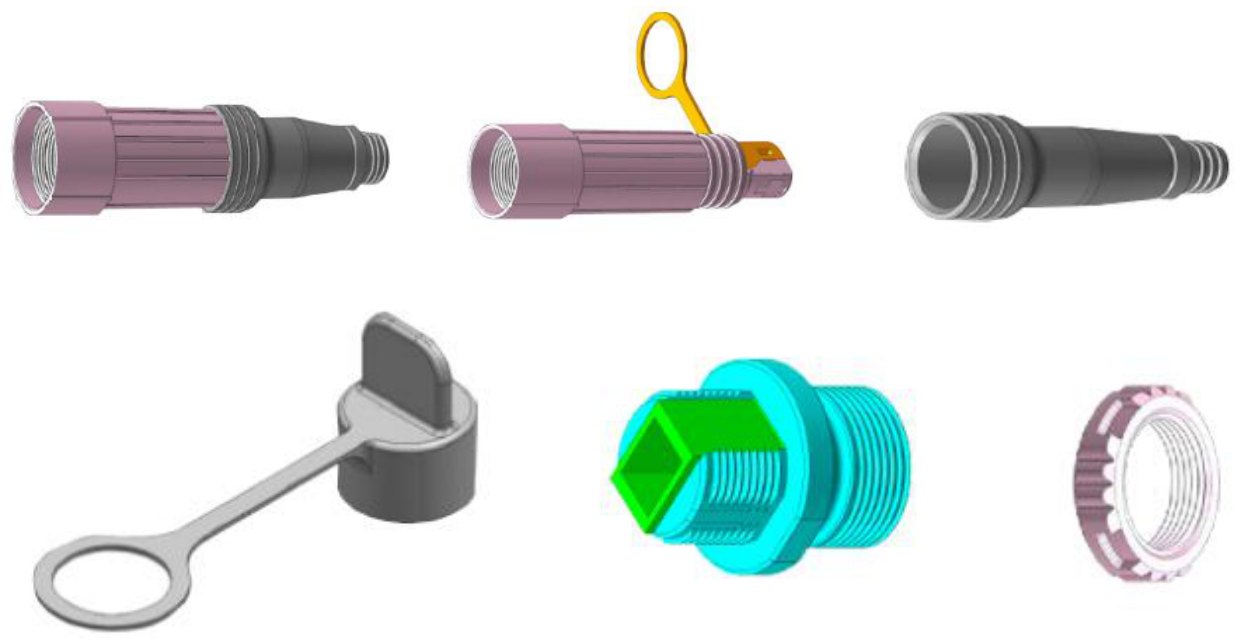

| CR-FCNT-D1 | Hardened connector kit: plug body, boot, dust cap, coupling nut, adapter and lock ring |
| Method | Mechanical fast-connector, no fusion splicer |
|---|---|
| Cable | Flat drop 2×3 / 2×5 mm and round 3.0–5.0 mm |
