FTTA & Quick ODN
Sub Box Series (FAT)
CR-DB27 / CR-FT-8X / CR-FT-16SX / CR-FT-8SX / CR-FT-8Y1
8–16 hardened outlets · IP65 · straight-through · Mini SC-compatible
The mid-chain boxes that pass fibres on to the next pole and hand off drops along the way. Straight-through only — the splitting is done upstream — so they stay compact and cheap, which matters when a route needs one every few poles.
Key features
- IP65 housings in wall, pole and strand variants
- 8 or 16 hardened Huawei Mini SC-compatible outlets
- CR-FT-8X-16 accepts 5–17 mm input cable
- Plug-and-play daisy-chaining with pre-connectorised distribution cable
Applications
Quality & compliance
CR-DB27 / CR-FT-8X / CR-FT-16SX / CR-FT-8SX / CR-FT-8Y1
Standards & certifications
Quality highlights
- Ingress protection: IP65
Specifications
CR-DB27 / CR-FT-8X / CR-FT-16SX / CR-FT-8SX / CR-FT-8Y1
| CR-DB27-16R | Straight-through · IP65 · 16 outlets (Mini SC-compatible) |
|---|---|

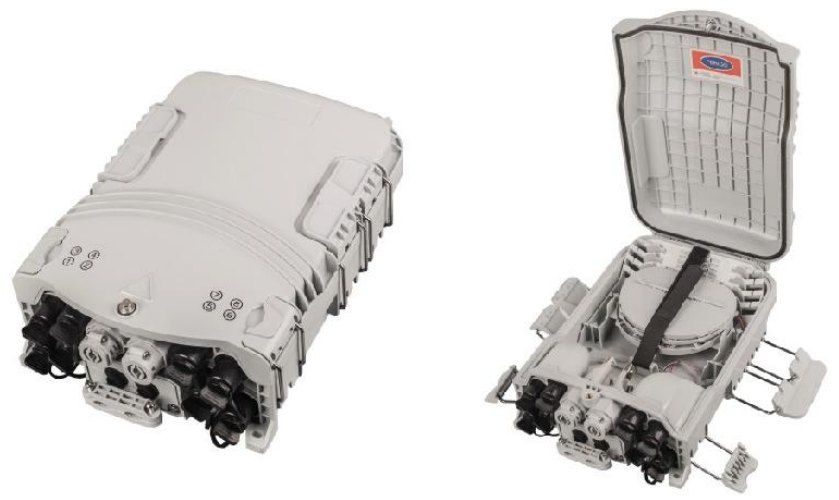

| CR-DB27-8R | Straight-through · IP65 · 8 outlets (Mini SC-compatible) |

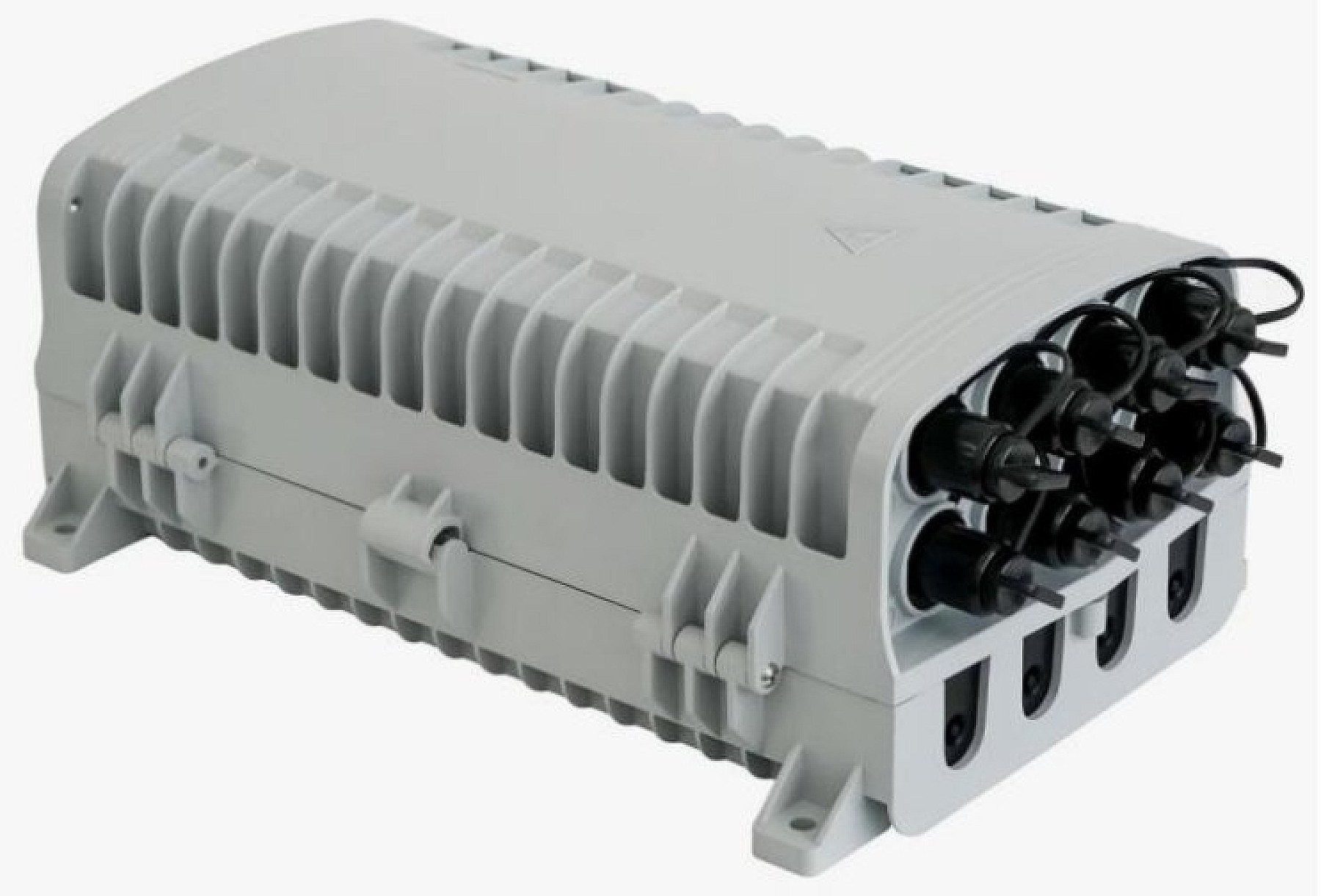

| CR-FT-8X-16 | Input cable 5–17 mm · IP65 · 16 outlets (Mini SC-compatible) |

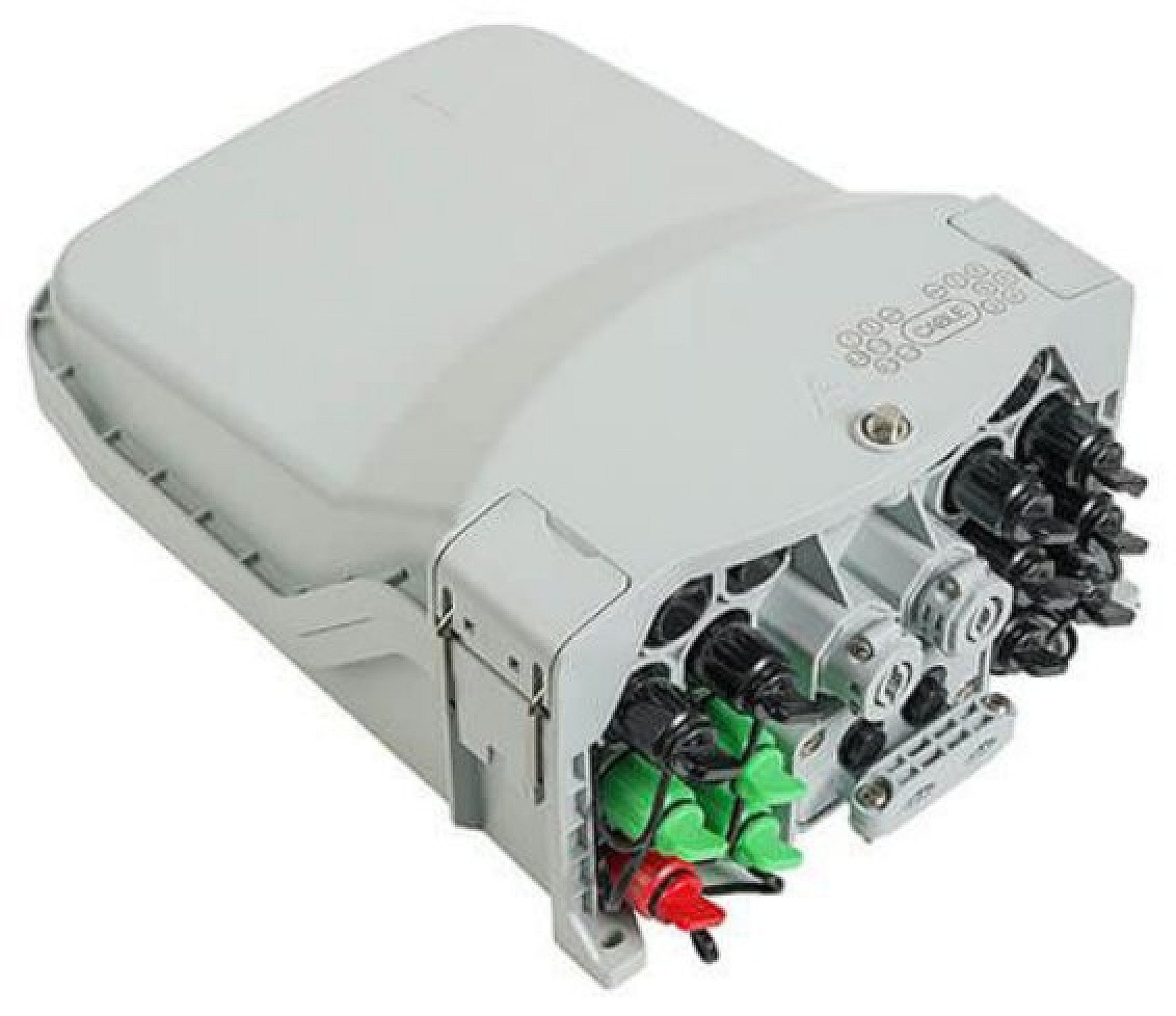

| CR-FT-16SX | Straight-through · IP65 · 16 outlets (Mini SC-compatible) |

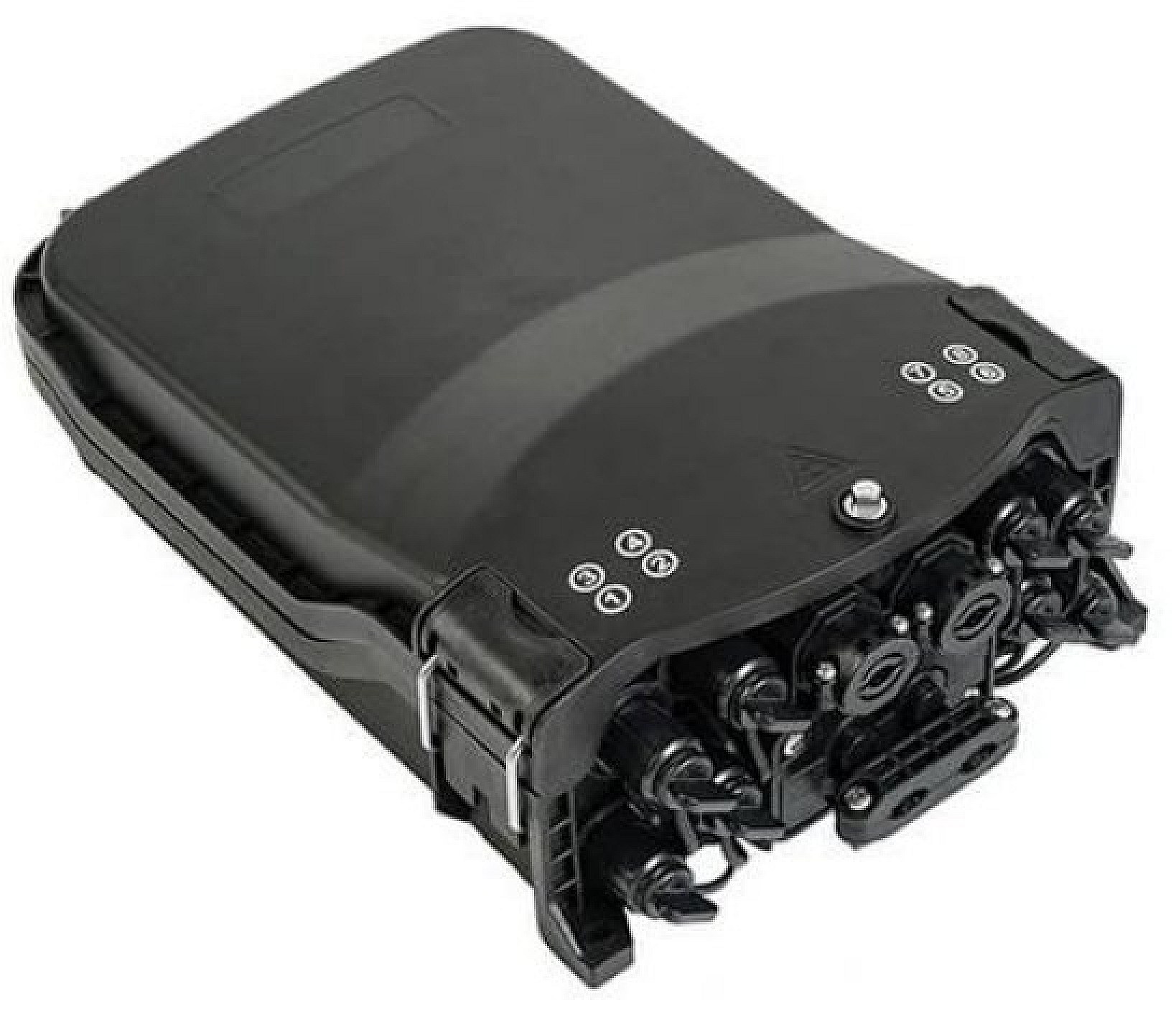

| CR-FT-8SX | Straight-through · IP65 · 8 outlets (Mini SC-compatible) |

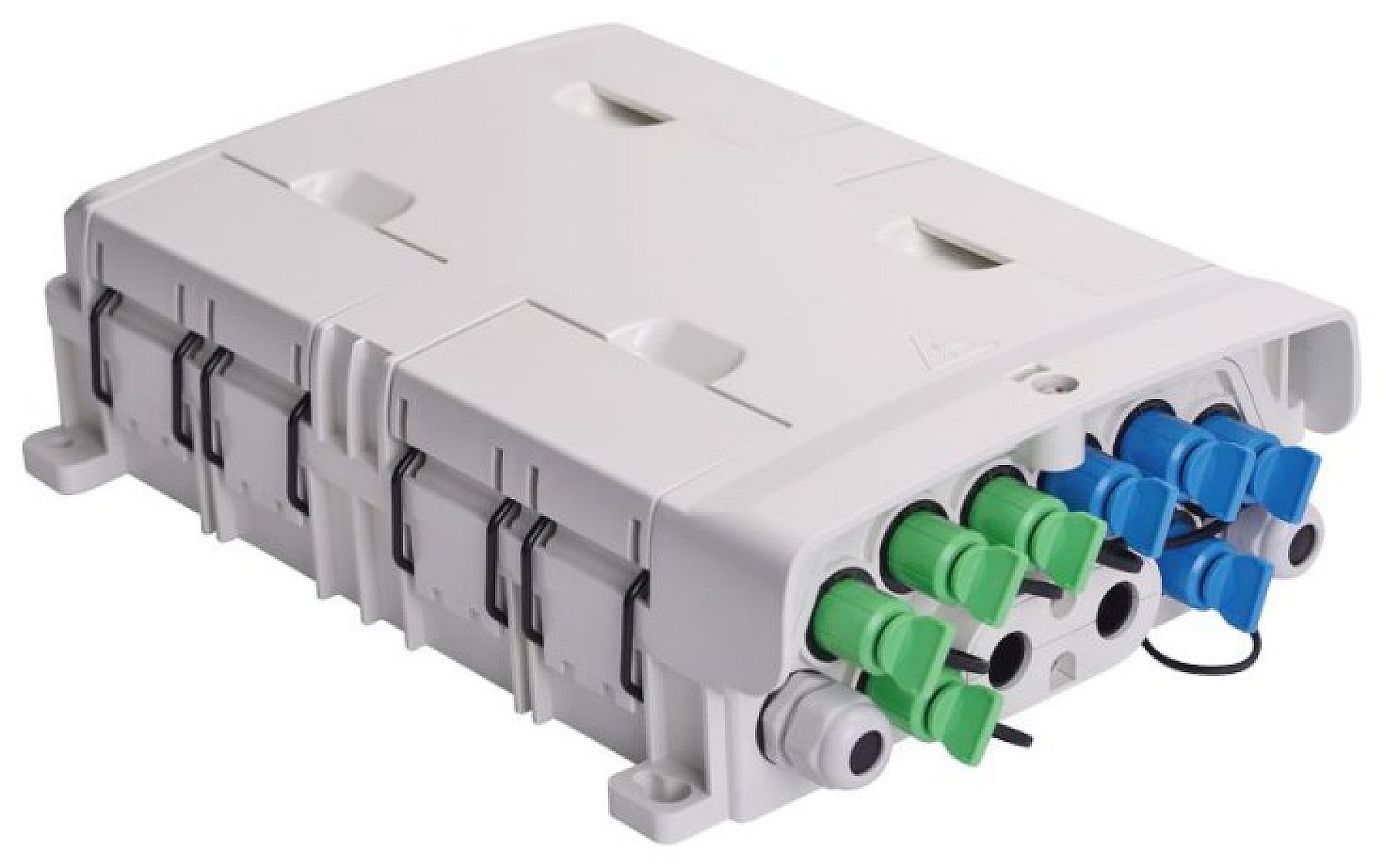

| CR-FT-8Y1 | Straight-through · IP65 · 8 outlets (Mini SC-compatible) |
| Ingress protection | IP65 |
|---|---|
| Outlet type | Hardened Huawei Mini SC-compatible socket |
