FTTA Outdoor Cable Assemblies
PDLC / CPRI / Fullaxs / NSN / ODVA / ODC
RRU-to-BBU jumpers · PDLC, CPRI, Fullaxs, NSN, ODVA, ODC · IP67 · any length

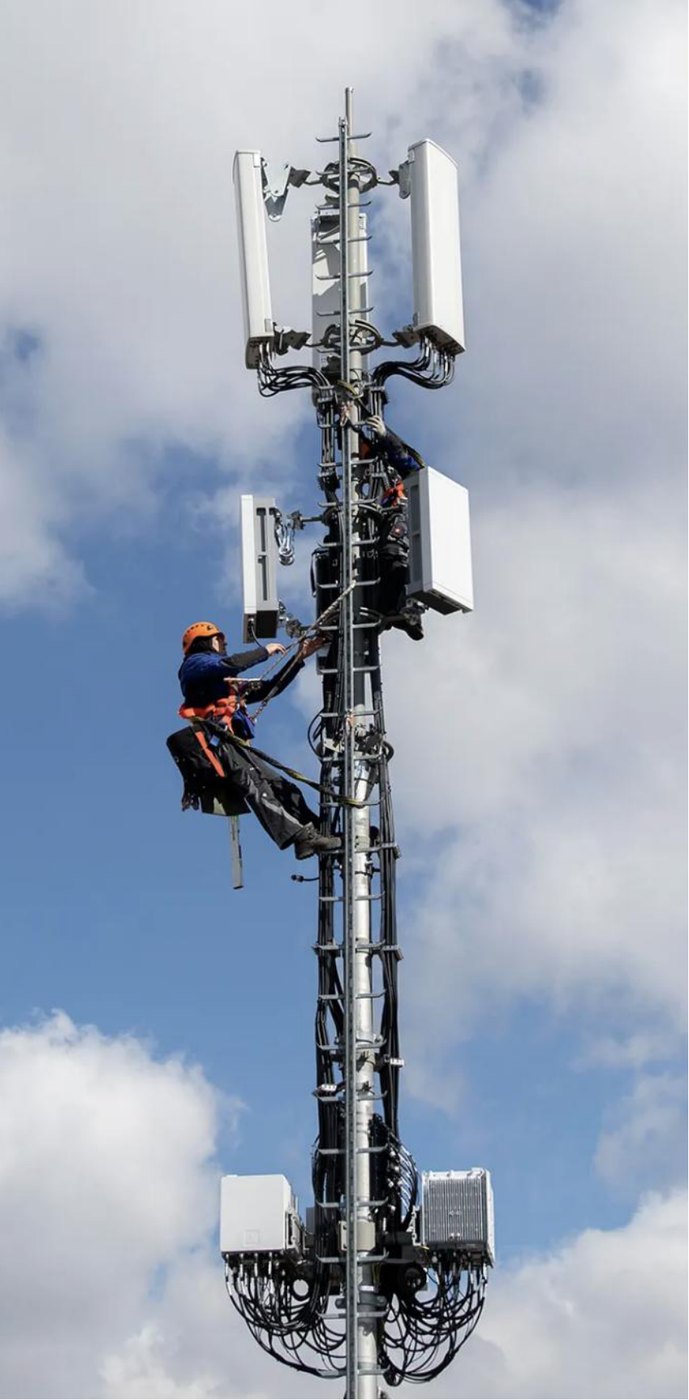

Pre-terminated outdoor patch cords for fibre-to-the-antenna: the waterproof connector on one end goes into the remote radio unit on the tower, the LC duplex on the other lands in the BBU or terminal box. Six connector families cover the major radio vendors; length and fibre type are cut to your site list.
Key features
- PDLC, CPRI, Fullaxs, NSN, ODVA and ODC socket interfaces
- IP67 sealed outdoor connector, UV- and weather-resistant armoured cable
- LC/UPC duplex breakout at the BBU end; other terminations on request
- Factory-tested, labelled and cut to the length on your tower drawing
Applications
Quality & compliance
PDLC / CPRI / Fullaxs / NSN / ODVA / ODC
Standards & certifications
Specifications
PDLC / CPRI / Fullaxs / NSN / ODVA / ODC
| PDLC | Push-pull outdoor LC duplex, IP67 |
|---|---|

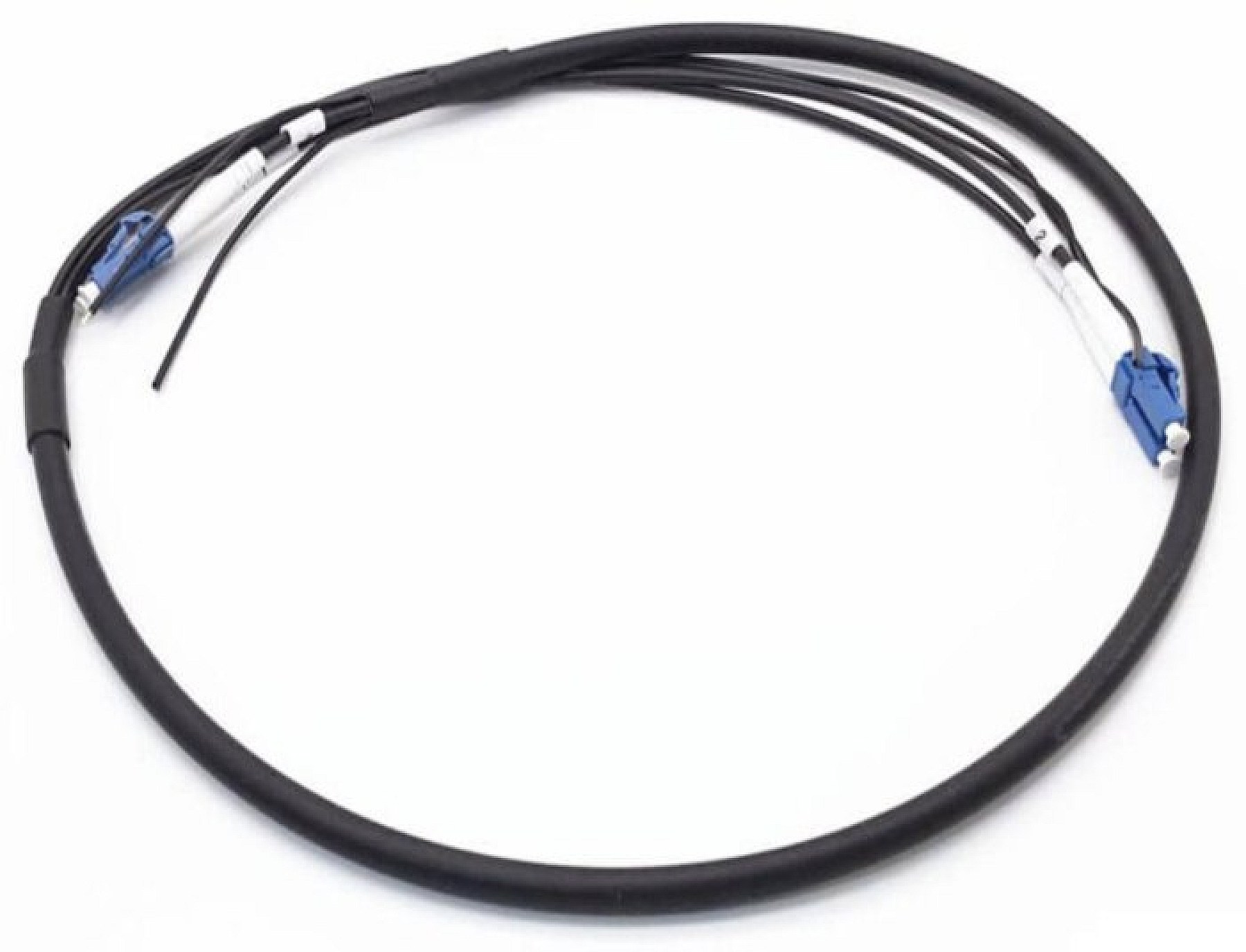

| CPRI | Outdoor LC duplex for CPRI links |

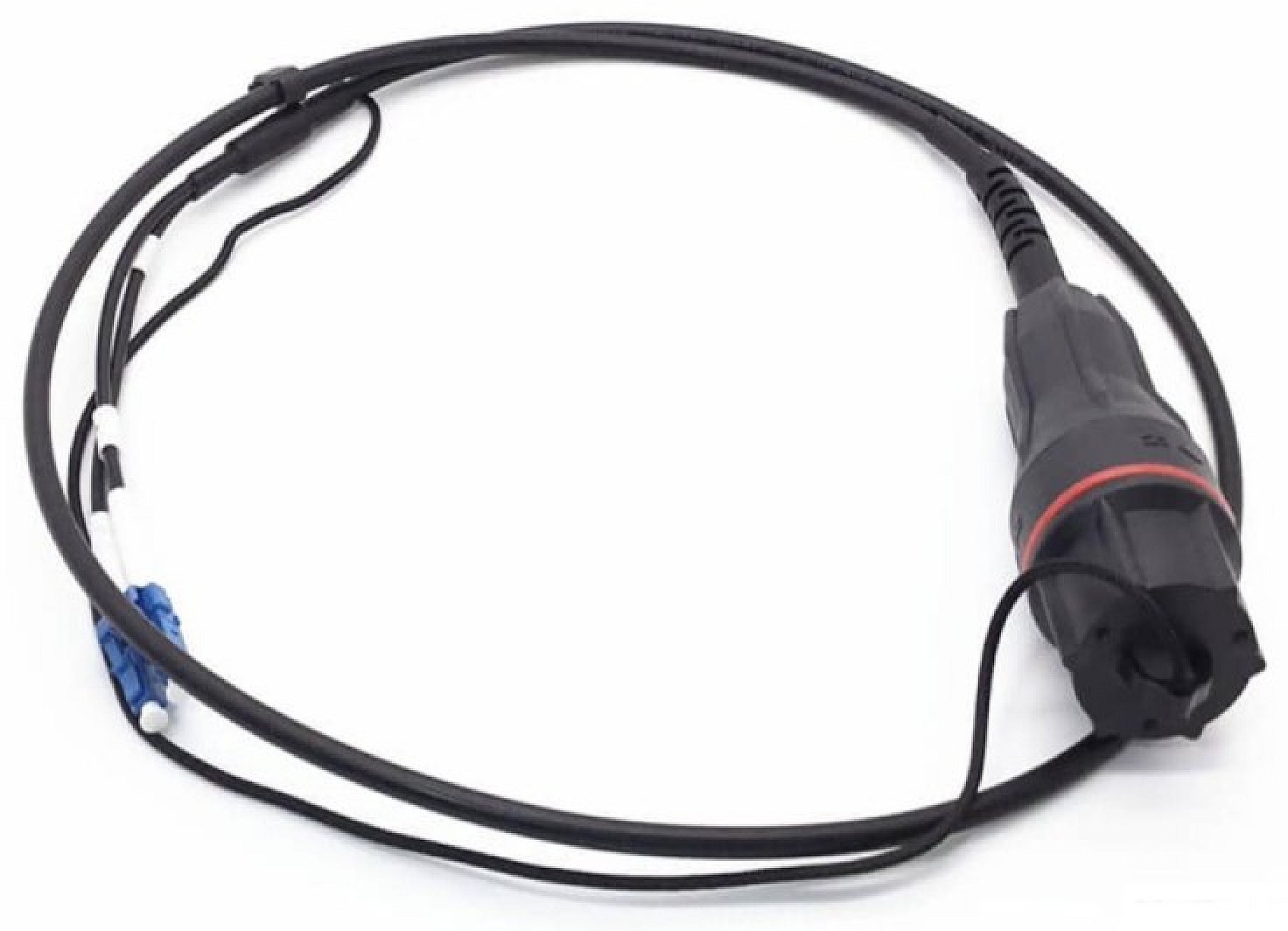

| Fullaxs | Ericsson-style Fullaxs-compatible outdoor LC |

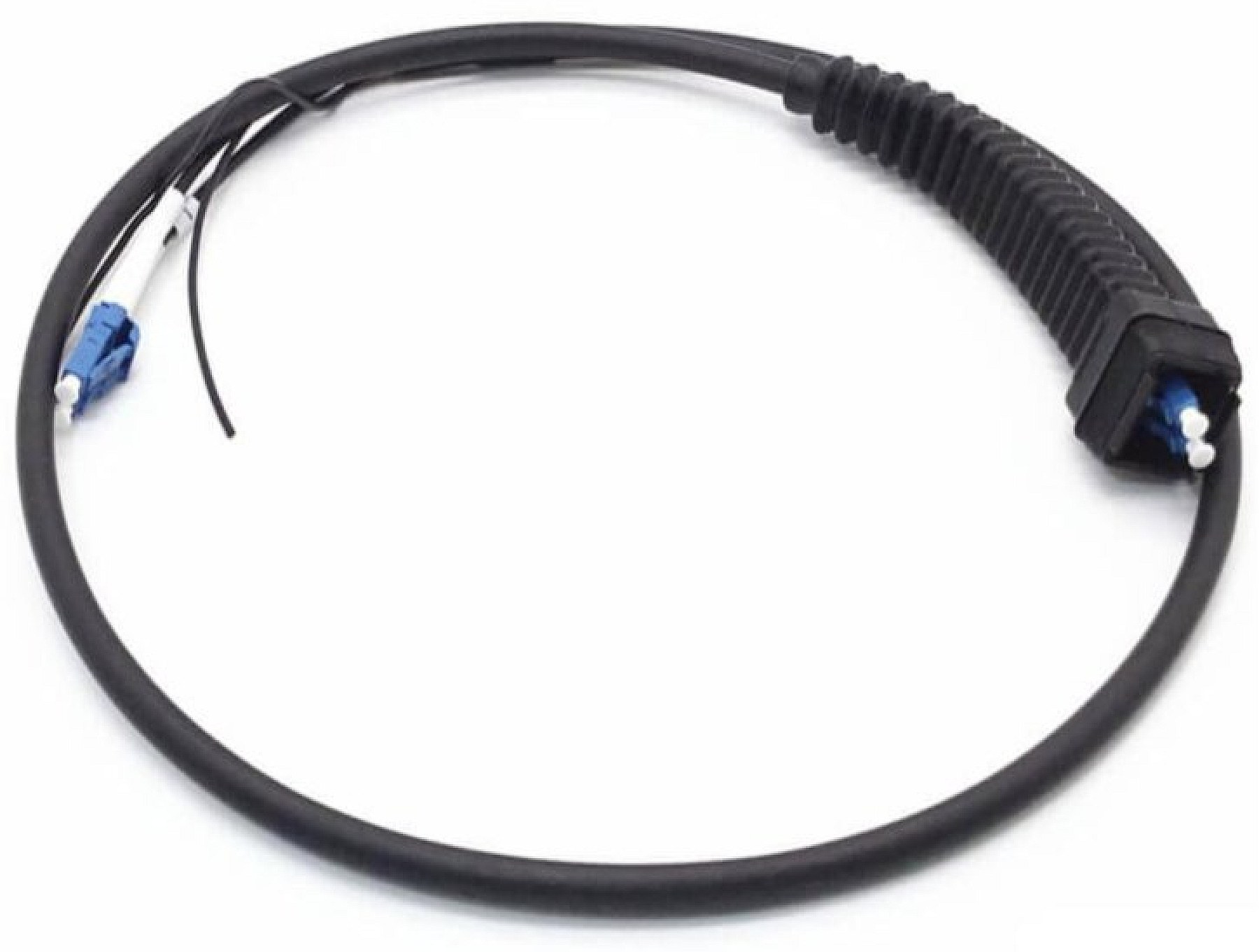

| NSN | Nokia-style NSN-compatible outdoor LC |

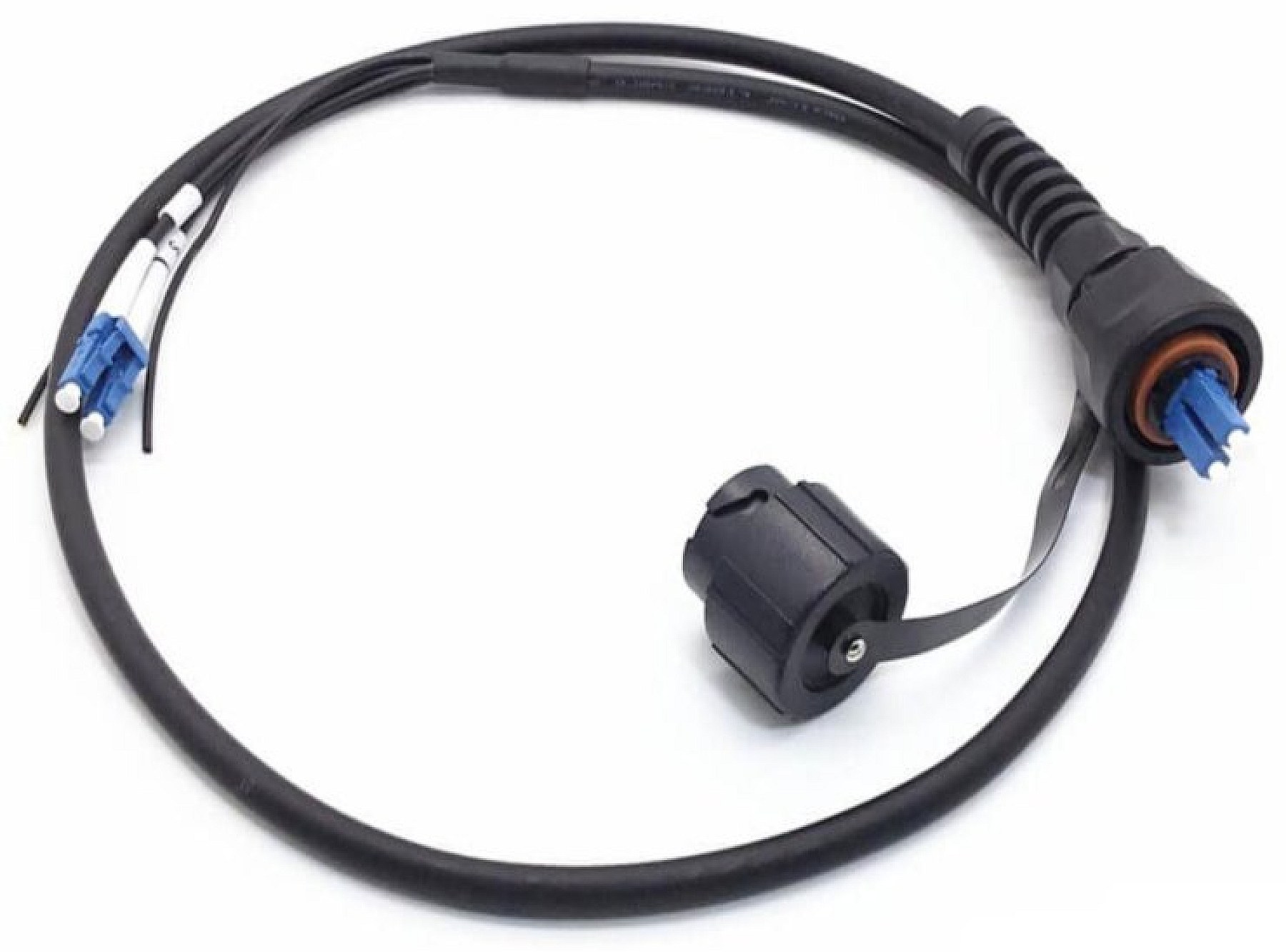

| ODVA | ODVA-compatible outdoor LC, bayonet lock |

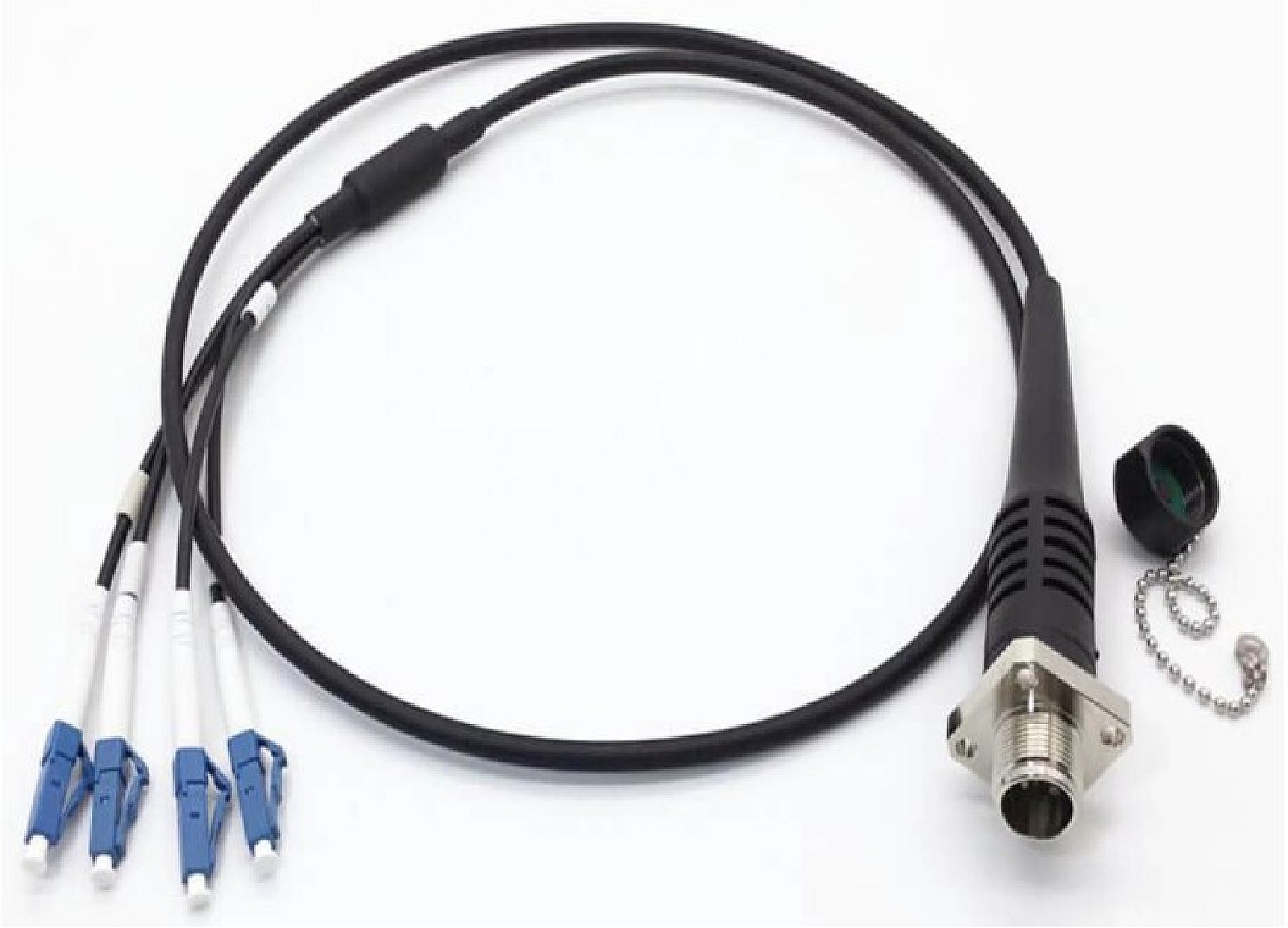

| ODC socket | ODC-compatible socket / plug, 2 or 4 fibres |
| Fibre | Single-mode G.657.A1 / A2 (multimode on request) |
|---|---|
| Construction | Armoured or non-armoured outdoor jumper, UV-resistant LSZH/PE jacket |
| Far end | LC/UPC duplex breakout (other terminations on request) |
| Length | Cut to order |
