FTTA & Quick ODN
Pre-Connectorised Drop Cable Assemblies
OptiTap®-compatible / Mini SC / flat drop
OptiTap®-compatible · Huawei Mini SC-compatible · flat drop with SC/LC/ST · factory-terminated
Drop cables that arrive with the hardened connector already on them, so the crew plugs into the terminal box instead of splicing on a ladder. Three connector families and five cable constructions cover round 3.0 / 5.0 mm, 4×7 mm and flat 2×3 / 2×5 mm drops.
Key features

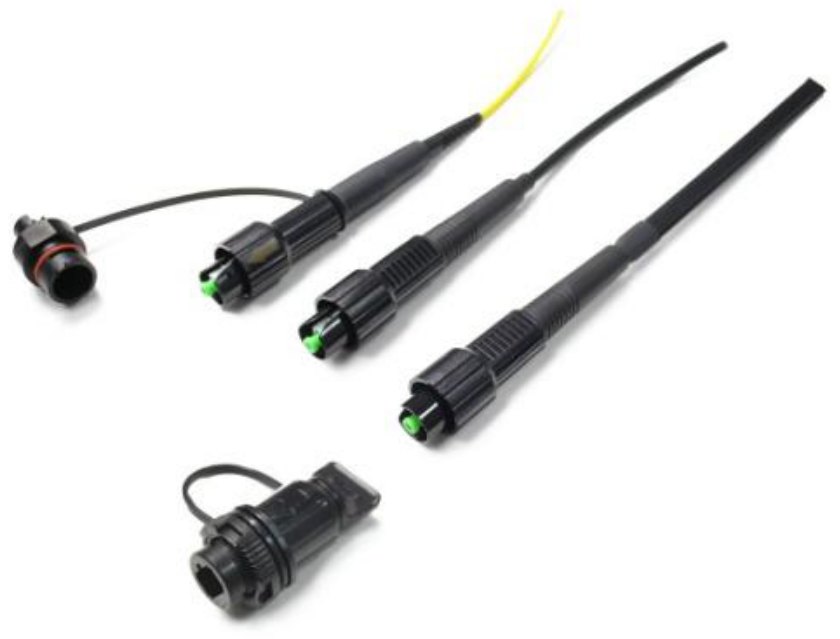

- OptiTap®-compatible and Huawei Mini SC-compatible hardened connectors, IP68

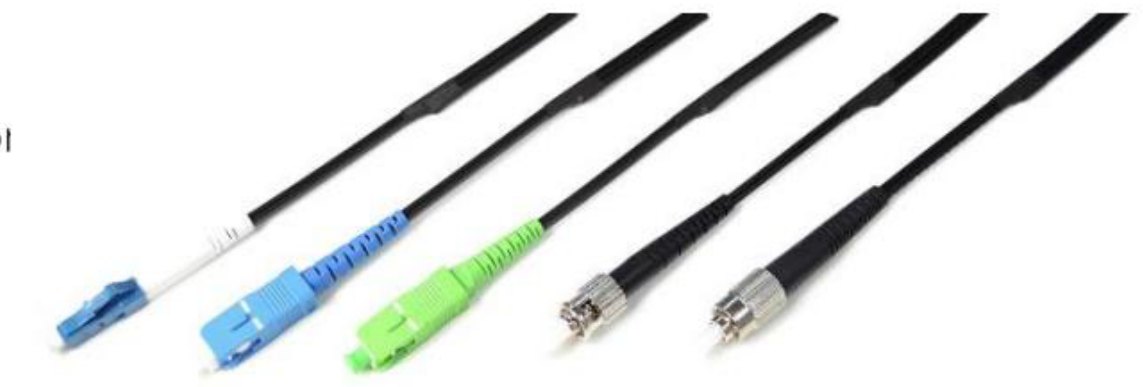

- Flat drop assemblies with SC, LC, ST or FC connectors
- Round 3.0 mm and 5.0 mm LSZH cables with aramid and 900 µm tight buffer
- 4×7 mm flat with FRP/steel wire and ripcord; 2×3 / 2×5 flat drop with or without messenger
- Every assembly tested and labelled at the factory
Applications
Quality & compliance
OptiTap®-compatible / Mini SC / flat drop
Standards & certifications
Specifications
OptiTap®-compatible / Mini SC / flat drop
| OptiTap®-compatible | Hardened SC/APC, IP68, plug and socket |
|---|---|
| Huawei Mini SC-compatible | Hardened Mini SC/APC, IP68, plug and socket |
| Flat drop assemblies | SC/UPC, SC/APC, LC, ST or FC on standard flat drop |

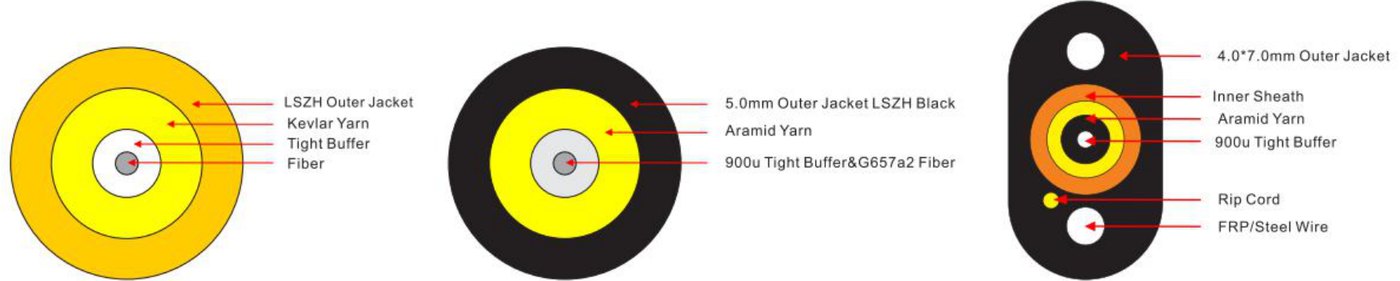

| Ø 3.0 mm | LSZH outer jacket · Kevlar yarn · tight buffer · single fibre |
|---|---|
| Ø 5.0 mm | LSZH black outer jacket · aramid yarn · 900 µm tight buffer · G.657.A2 |
| 4.0 × 7.0 mm | Outer jacket · inner sheath · aramid · 900 µm tight buffer · ripcord · FRP / steel wire |

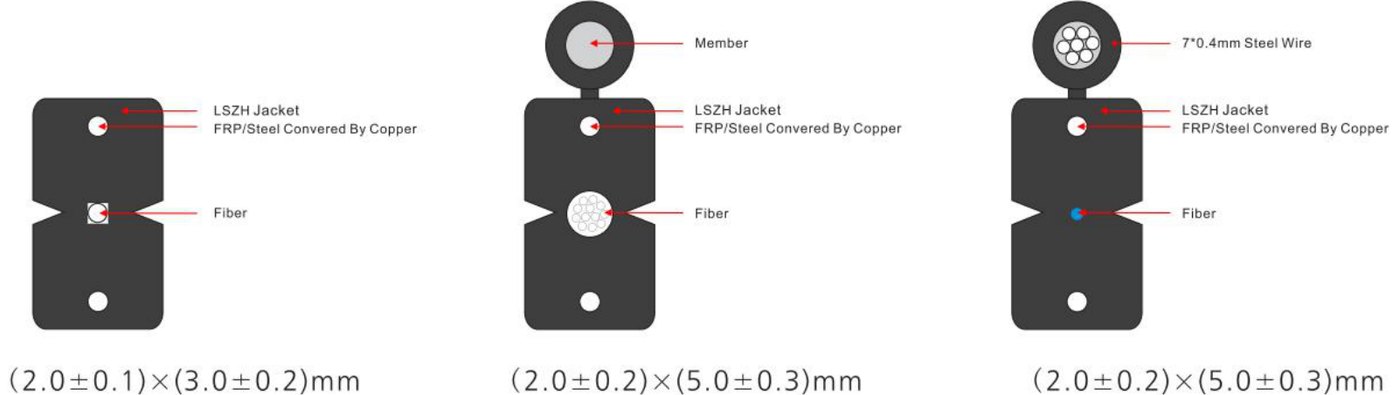

| (2.0 ± 0.1) × (3.0 ± 0.2) mm | LSZH jacket · FRP or steel-covered copper strength members |
|---|---|
| (2.0 ± 0.2) × (5.0 ± 0.3) mm | LSZH jacket · FRP or steel-covered copper members · steel messenger |
| (2.0 ± 0.2) × (5.0 ± 0.3) mm, 7×0.4 messenger | LSZH jacket · FRP or steel-covered copper members · 7 × 0.4 mm stranded steel messenger |
