FTTA & Quick ODN
Hub Box Series (FDT)
CR-D002 / CR-D003 / CR-FT / CR-DA7
8–32 hardened outlets · IP68 · straight-through or PLC splitter · Mini SC-compatible
The first box after the central office in a Quick-ODN chain: the feeder cable comes in, splitters or straight-through fibres go out to the sub boxes through hardened Mini SC-compatible outlets. No splicing on the pole and no site acquisition — the box hangs on a pole or wall.
Key features
- IP68 sealed, UV-resistant housing for pole, wall or strand mounting
- Straight-through, 1:4 + 1:8 or 1:8 / 1:16 PLC splitter configurations
- 8, 13, 16 or 32 hardened Huawei Mini SC-compatible outlets
- Plug-and-play: every port is a hardened socket, no splice trays to open
Applications
Quality & compliance
CR-D002 / CR-D003 / CR-FT / CR-DA7
Standards & certifications
Quality highlights
- Ingress protection: IP68
Specifications
CR-D002 / CR-D003 / CR-FT / CR-DA7
| CR-D002-8R | Straight-through · IP68 · 8 outlets (Mini SC-compatible) |
|---|---|

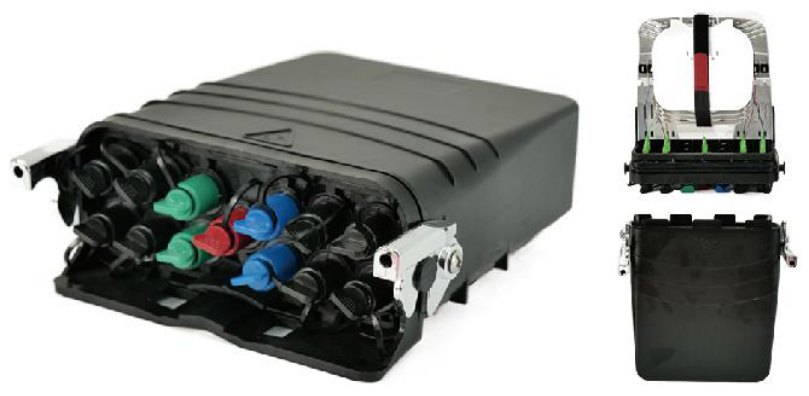

| CR-D002-13R | 1:4 + 1:8 PLC splitter · IP68 · 13 outlets (Mini SC-compatible) |

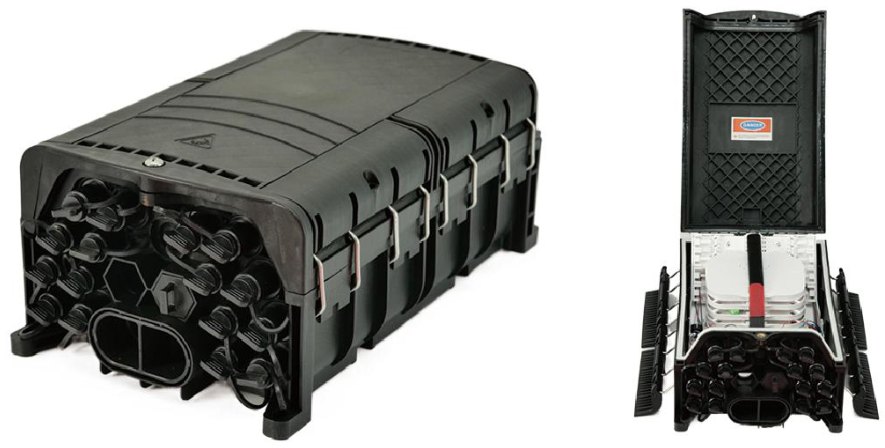

| CR-D003-16R | Straight-through · IP68 · 16 outlets (Mini SC-compatible) |

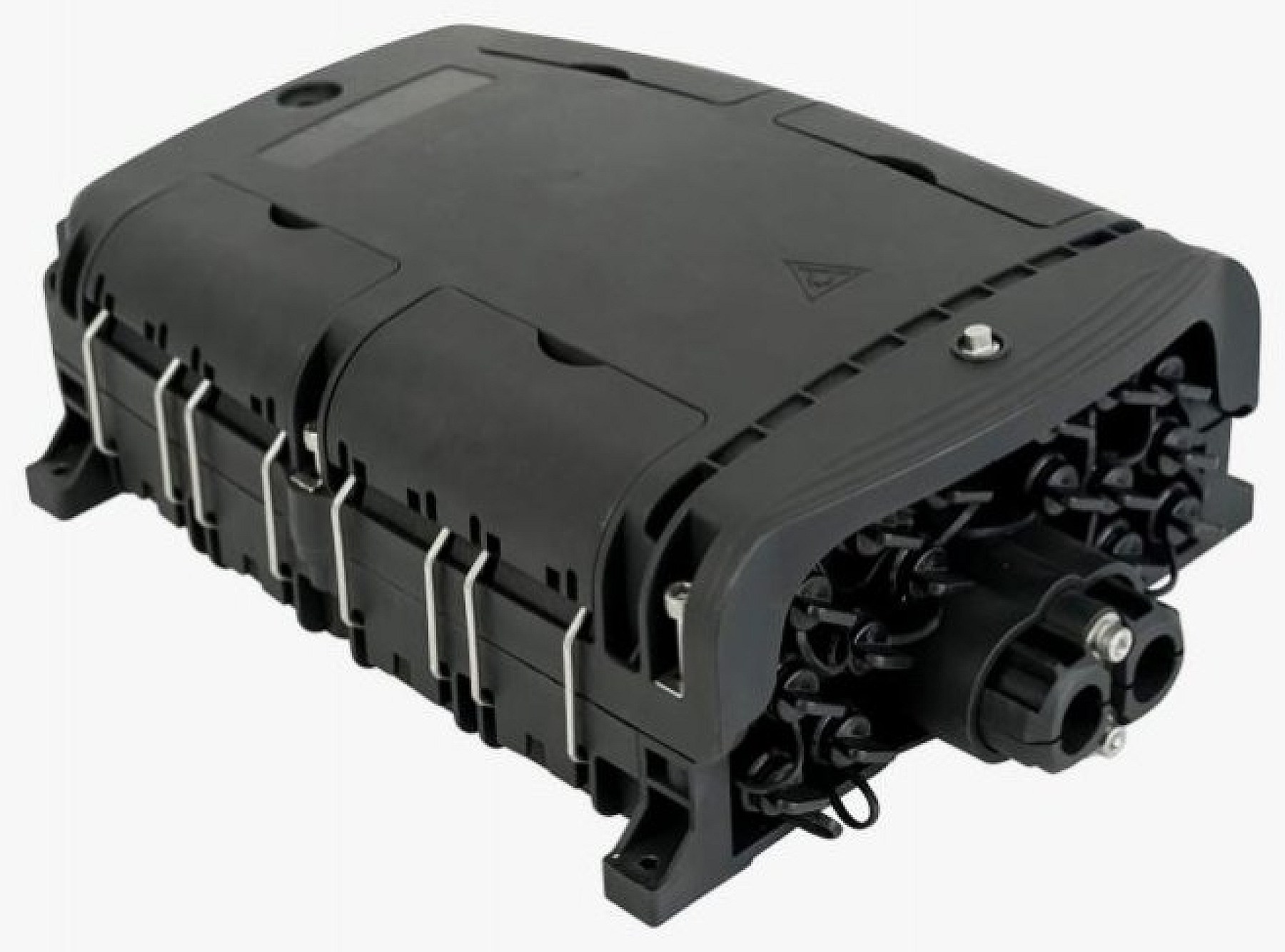

| CR-FT-16QX-1 | Straight-through · IP68 · 16 outlets (Mini SC-compatible) |

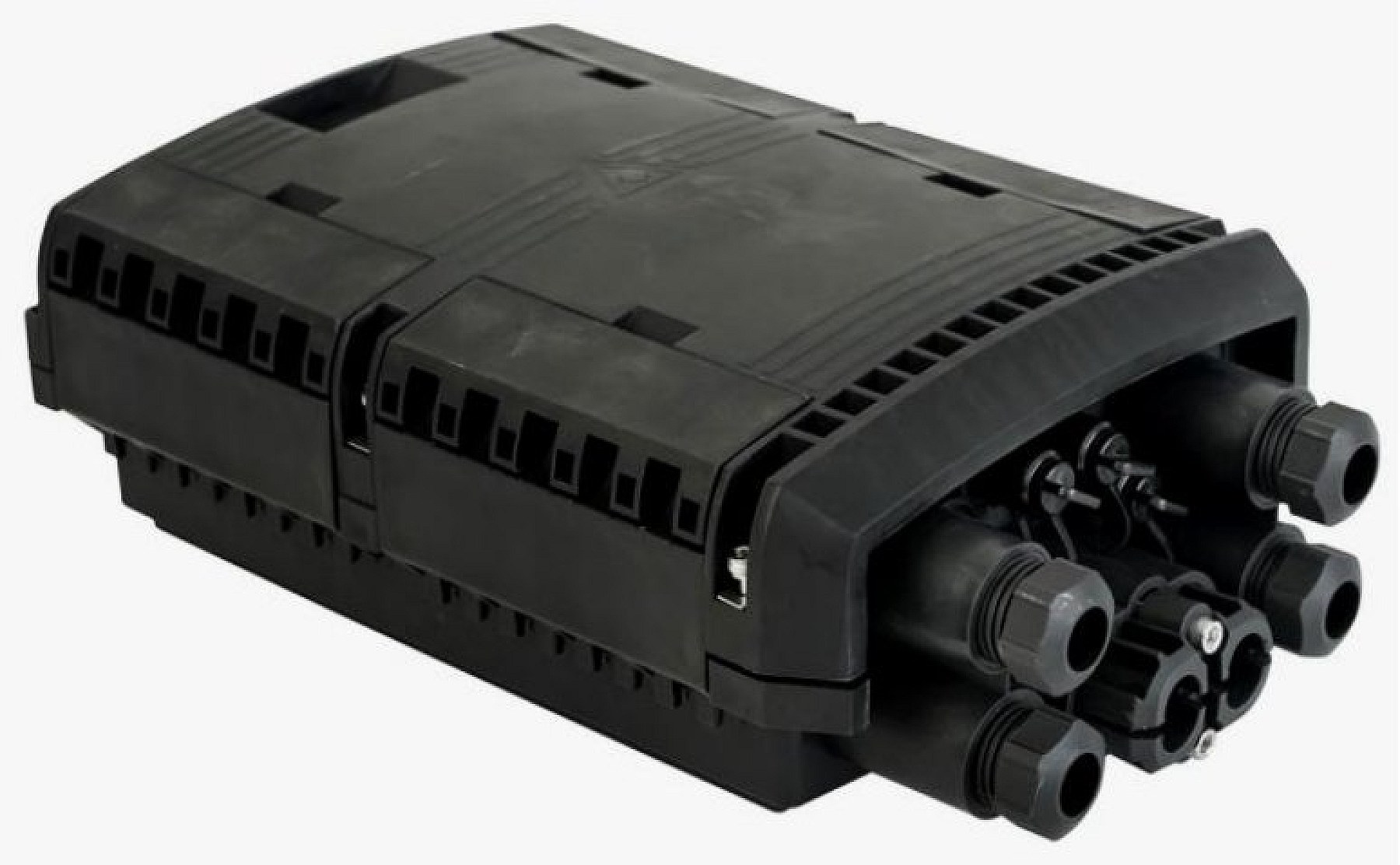

| CR-FT-32R | 1:8 / 1:16 PLC splitter · IP68 · 4 outlets (Mini SC-compatible) |

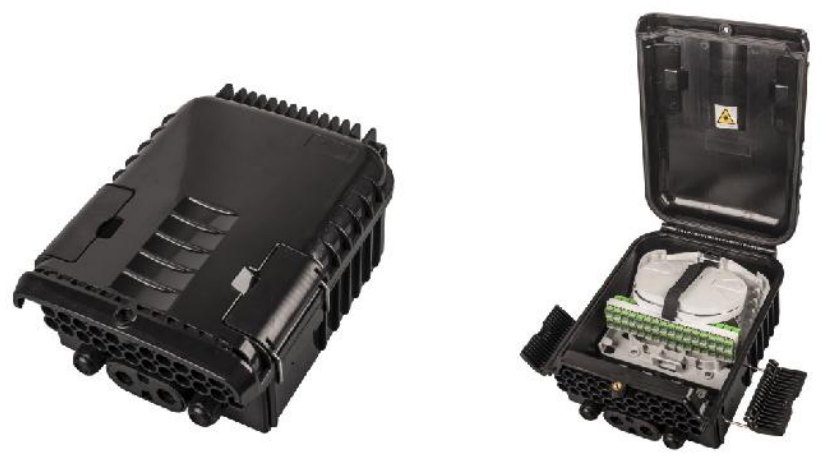

| CR-DA7-32R | Straight-through · IP68 · 32 outlets (Mini SC-compatible) |
| Ingress protection | IP68 |
|---|---|
| Outlet type | Hardened Huawei Mini SC-compatible socket |
| Mounting | Pole, wall or aerial strand |
