FTTA & Quick ODN
OptiTap®-Compatible Terminal Box Series
CR-D003-10C / CR-FT-16X-A / CR-YP / CR-HY / CR-CX
4–16 hardened SC outlets · IP68 · straight-through or PLC · for OptiTap®-compatible drops
Terminal boxes and multiports whose outlets mate with OptiTap®-compatible hardened SC connectors — the interface most North American FTTH builds standardised on. Same box families as the Mini SC range, so a network can standardise on either connector.
Key features
- Hardened SC/APC outlets compatible with OptiTap® plugs
- Straight-through, 1:8, 1:16 and cascaded 1:2 + 1:4 / 1:8 splitter options
- Compact 4/6/8/12-port multiports (CR-HY, CR-CX) for strand and pedestal mounting
- IP68 sealed, UV-stable
Applications
Quality & compliance
CR-D003-10C / CR-FT-16X-A / CR-YP / CR-HY / CR-CX
Standards & certifications
Quality highlights
- Ingress protection: IP68
Specifications
CR-D003-10C / CR-FT-16X-A / CR-YP / CR-HY / CR-CX
| CR-D003-10C | Straight-through · IP68 · 10 outlets (OptiTap®-compatible SC) |
|---|---|

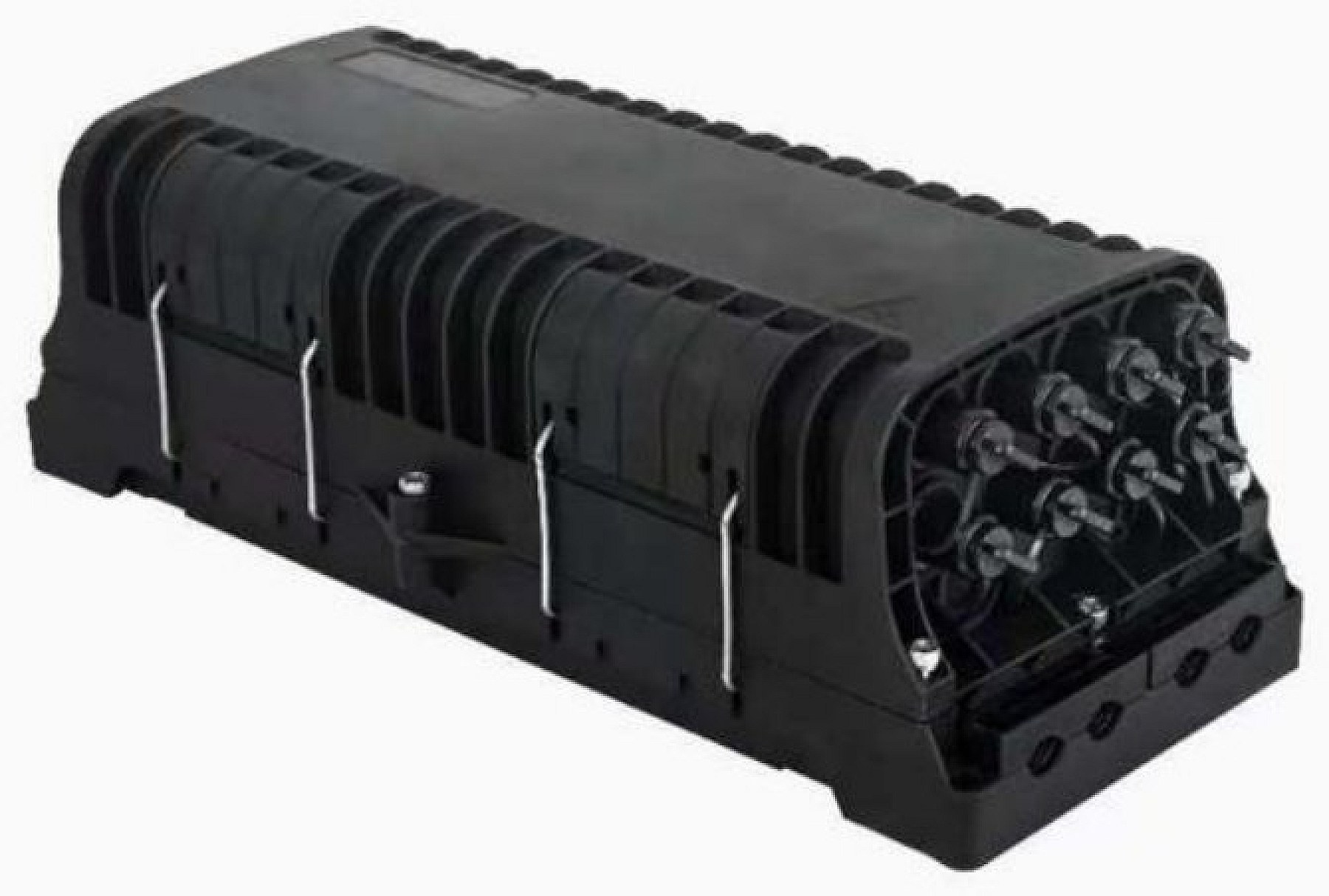

| CR-FT-16X-A | 1:16 PLC · IP68 · 16 outlets (OptiTap®-compatible SC) |

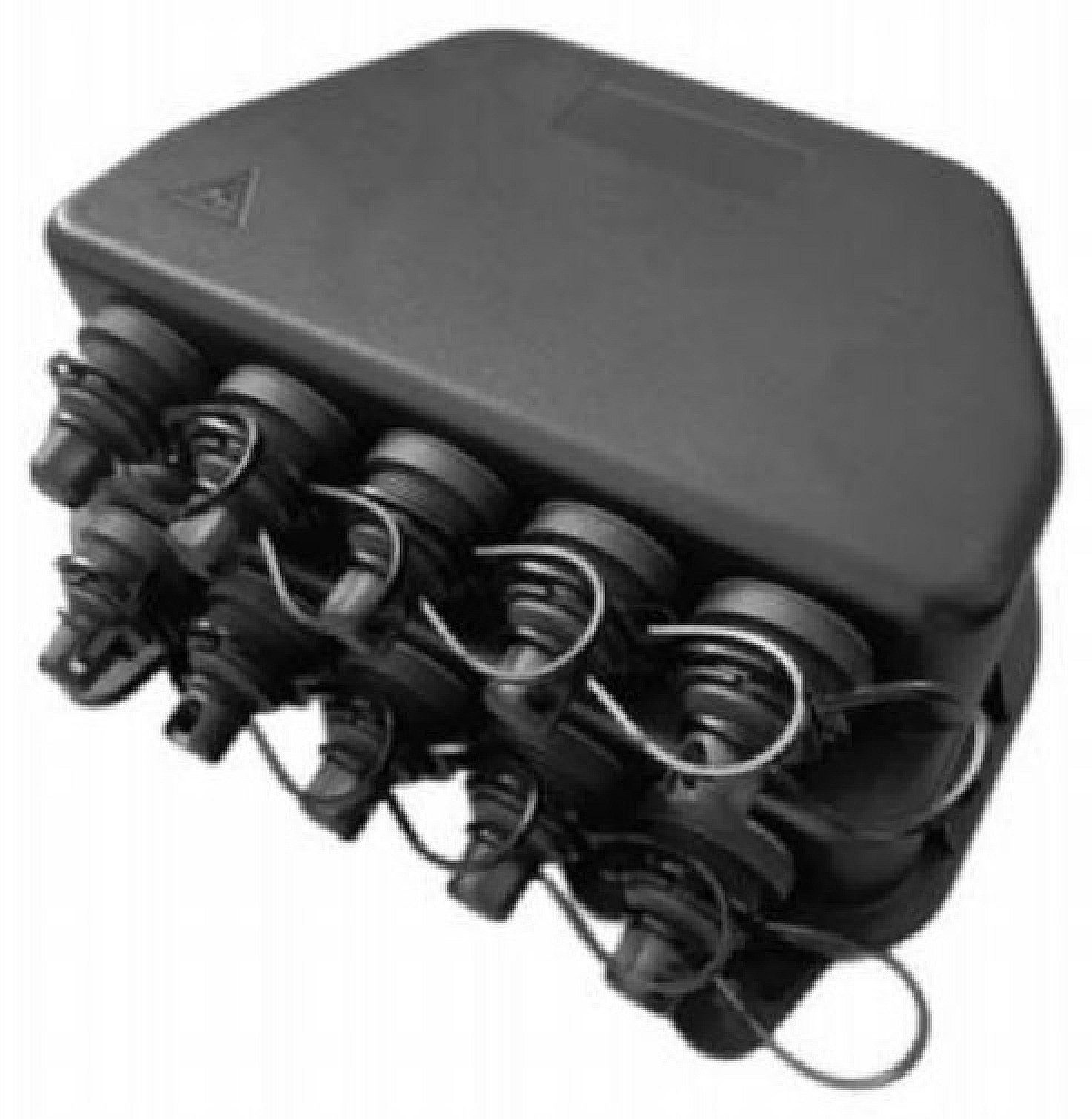

| CR-YP-10C | 1:2 + 1:8 PLC · IP68 · 10 outlets (OptiTap®-compatible SC) |

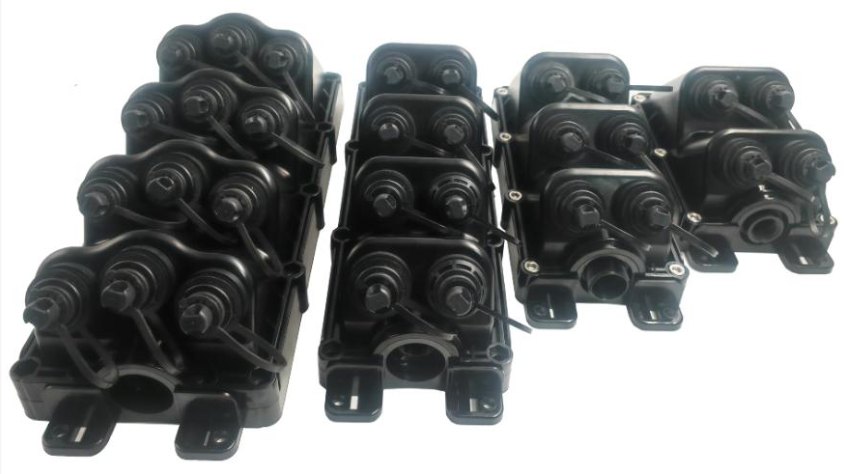

| CR-HY-4/6/8/12C | 4/8-way or 1:2+1:8, 1:2+1:4 PLC · IP68 · 4/6/8/12 outlets (OptiTap®-compatible SC) |

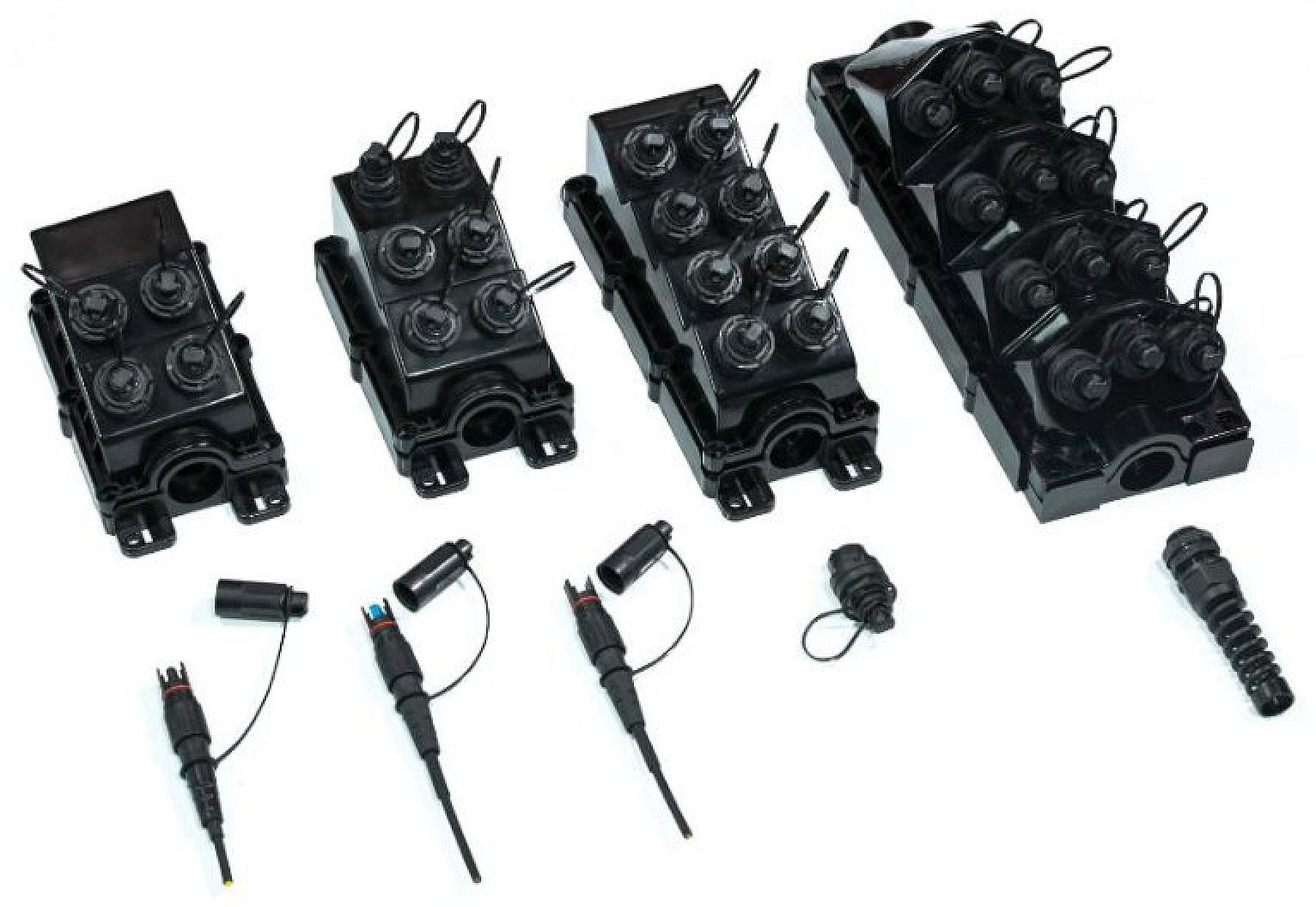

| CR-CX-4/6/8/12C | 4/8-way or 1:2+1:8, 1:2+1:4 PLC · IP68 · 4/6/8/12 outlets (OptiTap®-compatible SC) |

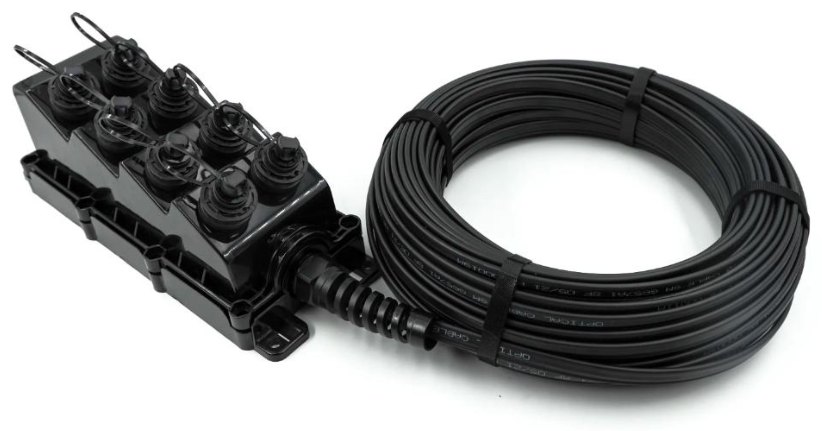

| CR-CX-8C | 1:8 PLC · IP68 · 9 outlets (Mini SC-compatible) with stub cable |
| Ingress protection | IP68 |
|---|---|
| Outlet type | Hardened SC/APC socket compatible with OptiTap® plugs |
| OptiTap | OptiTap® is a registered trademark of Corning Incorporated. CR Fiber products are compatible interfaces and are not manufactured or endorsed by Corning. |
|---|
