FTTA & Quick ODN
Sub / End Box Series with PLC Splitter
CR-FT-16Y / CR-D004 / CR-DB22 / CR-DP2 / CR-FT-12DY / CR-FT-8A-X
8–18 hardened outlets · IP65 / IP68 · 1:2, 1:4, 1:8, 1:16 PLC · Mini SC-compatible
Boxes with the splitter built in, for the end of a chain or wherever a group of homes needs its own split. One feeder fibre in, eight to sixteen subscriber drops out — each on a hardened Mini SC-compatible socket.
Key features
- Integrated 1:2, 1:4, 1:8 or 1:16 PLC splitters, cascaded where noted
- 8 to 18 hardened Huawei Mini SC-compatible outlets
- IP65 or IP68 variants for wall, pole and buried-vault use
- Each box feeds up to 8–16 subscribers with no splicing
Applications
Quality & compliance
CR-FT-16Y / CR-D004 / CR-DB22 / CR-DP2 / CR-FT-12DY / CR-FT-8A-X
Standards & certifications
Specifications
CR-FT-16Y / CR-D004 / CR-DB22 / CR-DP2 / CR-FT-12DY / CR-FT-8A-X
| CR-FT-16Y | 1:16 PLC · IP65 · 16 outlets (Mini SC-compatible) |
|---|---|

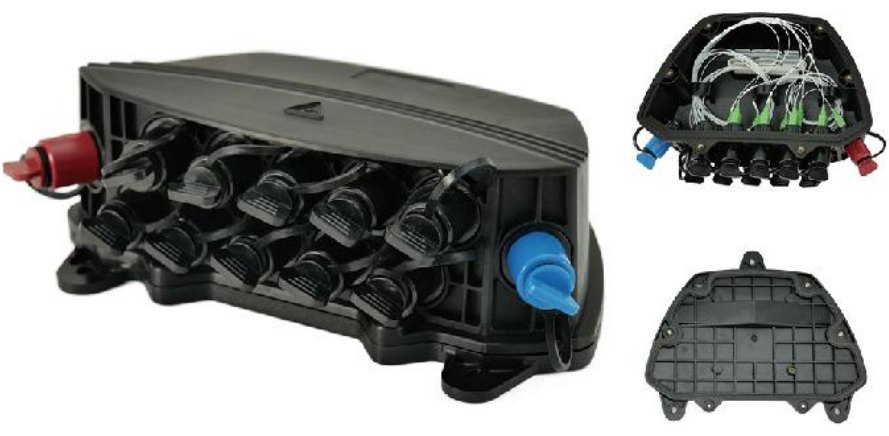

| CR-D004-12R | 1:4 + 1:8 PLC · IP68 · 12 outlets (Mini SC-compatible) |

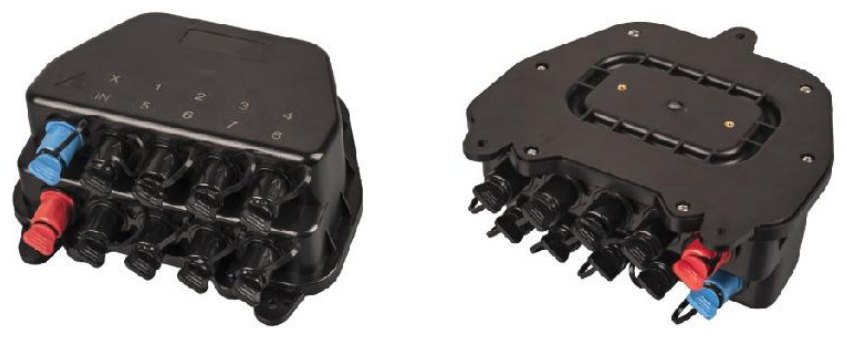

| CR-DB22-10R | 1:2 + 1:8 PLC · IP68 · 10 outlets (Mini SC-compatible) |

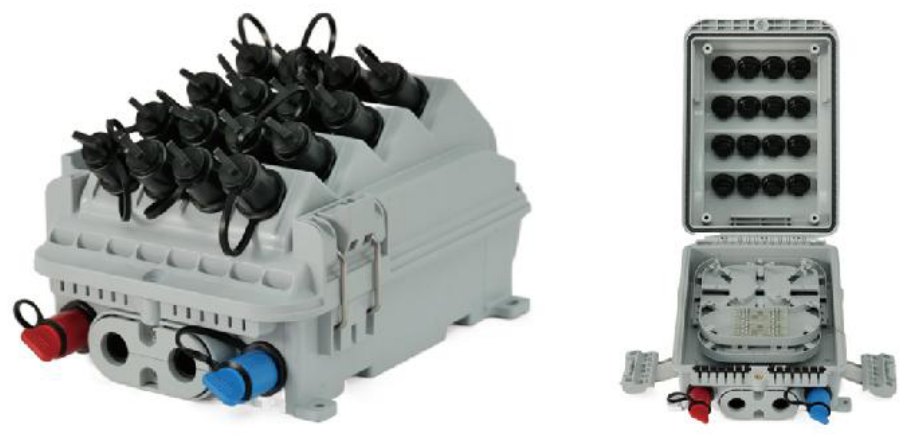

| CR-DP2-16R | 1:16 / 1:8 PLC · IP65 · 18 outlets (Mini SC-compatible) |

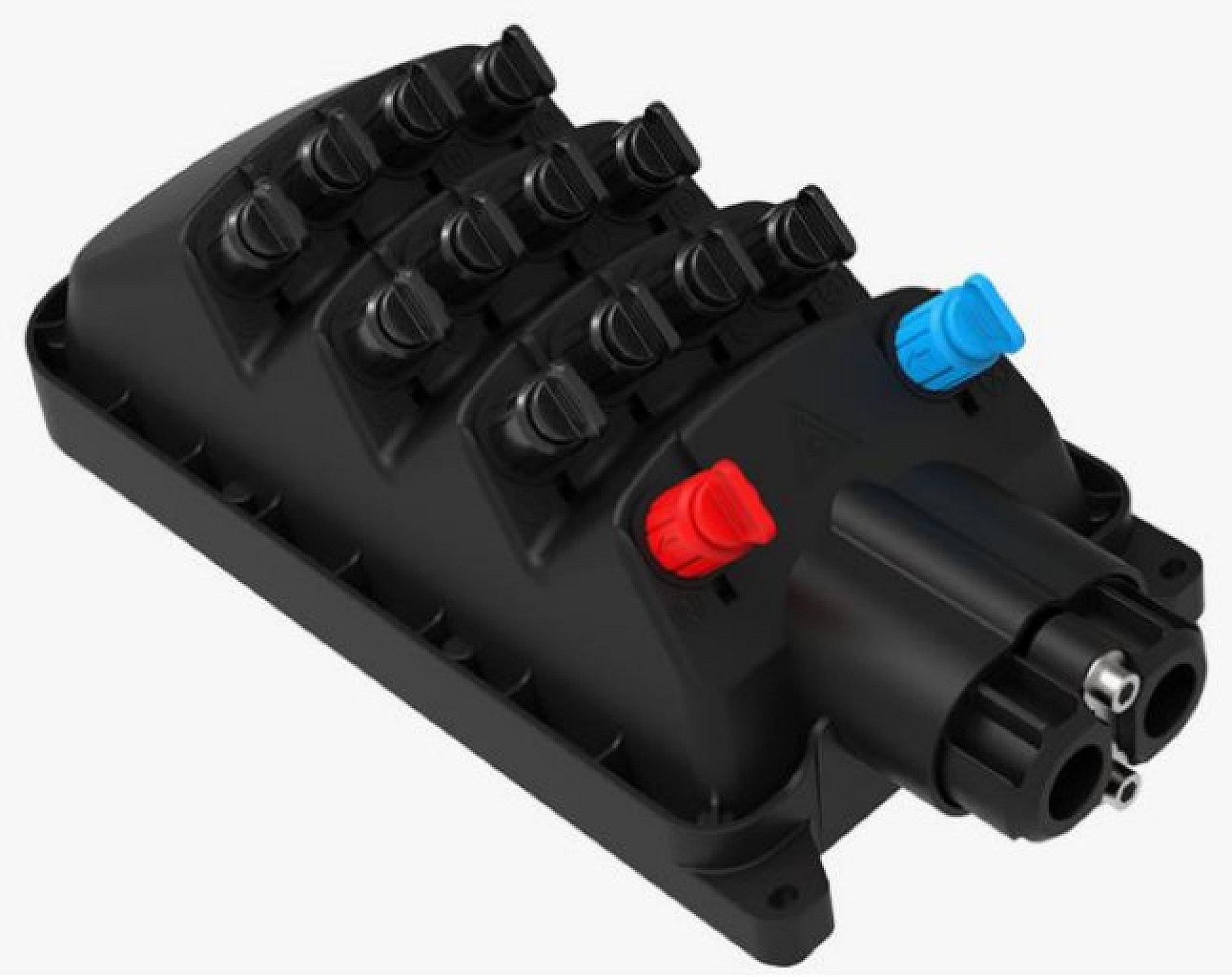

| CR-FT-12DY | 1:4 + 1:8 PLC · IP68 · 14 outlets (Mini SC-compatible) |

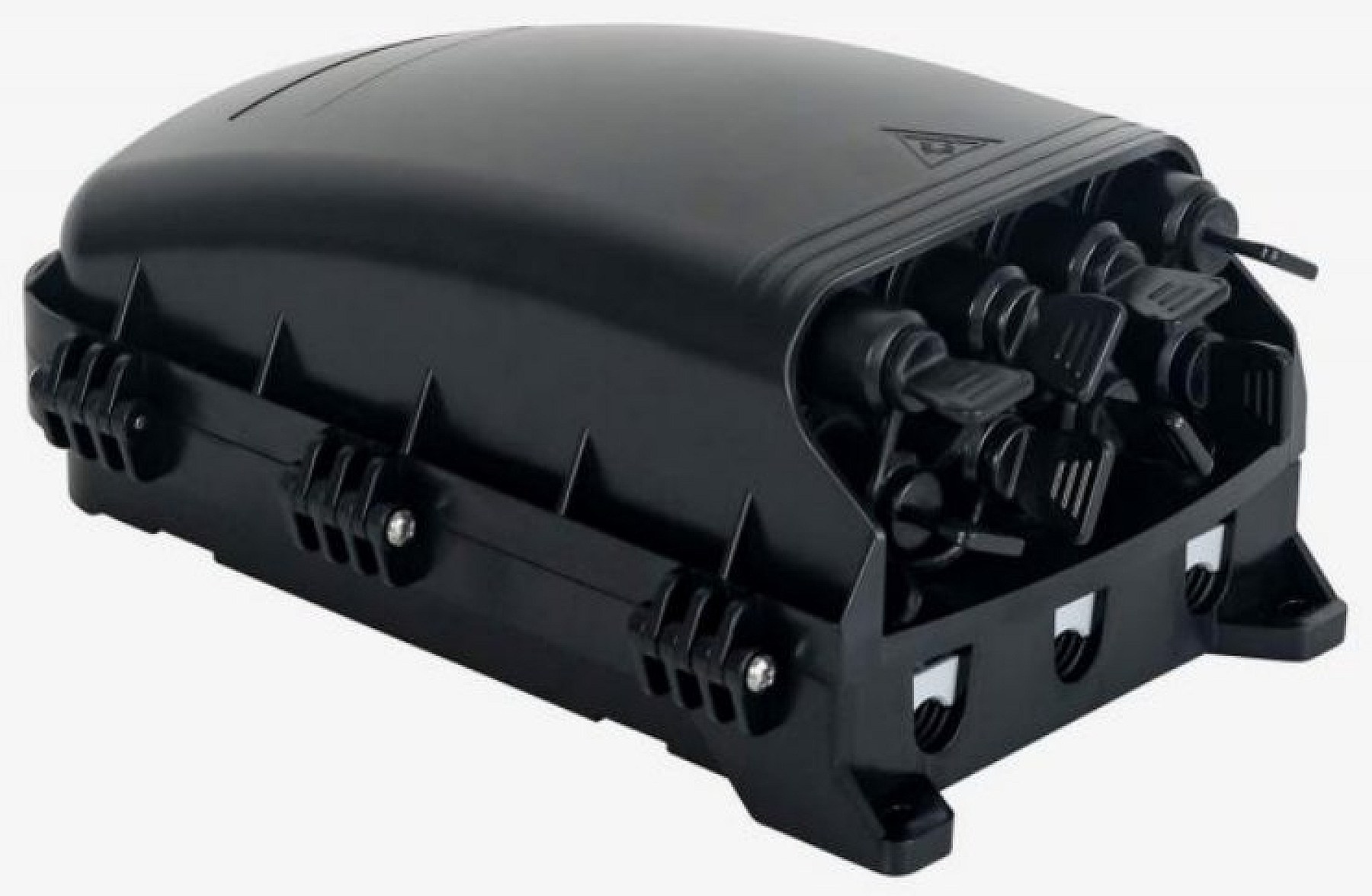

| CR-FT-8A-X | 1:8 PLC · IP65 · 8 outlets (Mini SC-compatible) |
| Outlet type | Hardened Huawei Mini SC-compatible socket |
|---|---|
| Splitter | PLC, factory-installed |
Related models
FTTA Outdoor Cable Assemblies
Pre-terminated outdoor patch cords for fibre-to-the-antenna: the waterproof connector on one end goes into the...
Pre-Connectorised Drop Cable Assemblies
Drop cables that arrive with the hardened connector already on them, so the crew plugs into the terminal box i...
Field-Assembly Hardened Connectors
When the drop length is not known in advance, the connector goes on in the field: strip, cleave, insert, lock....
Hub Box Series (FDT)
The first box after the central office in a Quick-ODN chain: the feeder cable comes in, splitters or straight-...
Request a Quote
Request a quote for CR-FT-16Y / CR-D004 / CR-DB22 / CR-DP2 / CR-FT-12DY / CR-FT-8A-X
Send us the model, quantity and destination. An engineer will reply, not an auto-responder.
